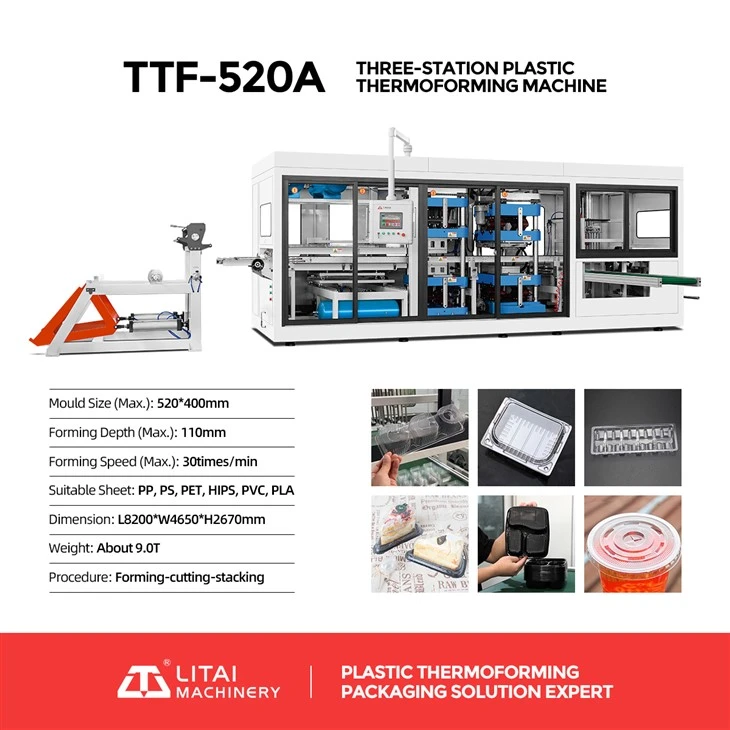

Fast Food Box Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.):40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
TTF-520A Fast Food Box Making Machine is a multi-station automaton that solves the problem of food packaging hygiene standards. It not only effectively solves many problems in the production of PP, PS, PET, PVC, PLA plastic products, such as large investment, large labor input, complicated production process, low health and safety, and wide application. It can be used in the production of PP, PS, PET, PVC, PLA plastic products in the metal, food, pharmaceutical and other industries. The machine looks beautiful and the price is favorable. It is very popular among customers at home and abroad.
Application
TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.
Fast Food Box Making Machine--- Samples
Fast Food Box Making Machine---Technical Parameter:
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Key features to consider when evaluating a thermoforming machine include:
- Manual or Automatic Operation – Choose based on the level of control and automation your production requires.
- Sanitary or Sterilized Surfaces – Essential for manufacturing medical or food-grade products.
- Reduced Mold Change Times – Improves production efficiency and minimizes interruptions between jobs.

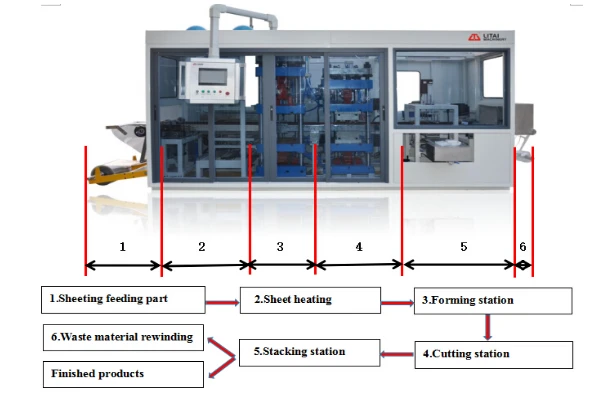

Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency
Feeding Device
Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators
Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
