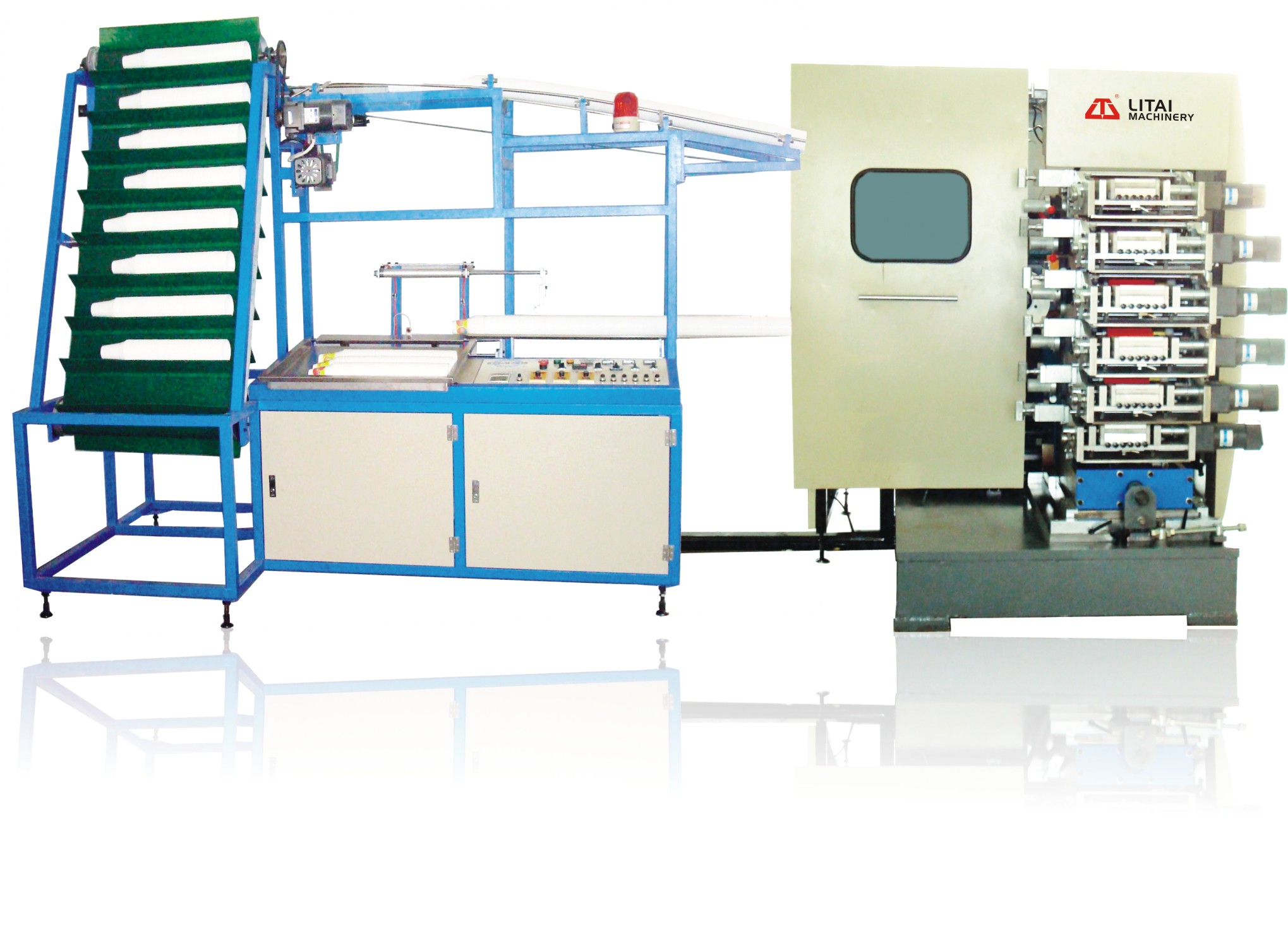

Six Colors Cup Printing Machine
Product Overview
The Six Colors Cup Printing Machine is specially used for printing patterns, letters, and logos on the surface of cups made from various materials. Due to the growing demand for personalized customization, printing machines have been widely used in gift customization, brand promotion, advertising, and other areas. Whether it's paper, plastic, or metal, the printing machine can efficiently and precisely complete printing tasks.

Six Colors Cup Printing Machine Application :
The equipment adopts relief printing two-side color words and patterns in plastic products surfacewith letterset method, and it can print six colors pattern in one time. lt is widely used for printingyoghurt cup, ice-cream cup, fast-food bowl, and other cylindrical form or conical plastic product.
For more information,please contact us by mail.
We provide excellent overseas service forinstallation and commissioning after sales.
Main Features
Efficient production: The cup printing machine is equipped with an advanced automation system, which can achieve high-speed batch production. Its automatic feeding and discharging system greatly reduces manual operation and improves production efficiency.
Precision printing: Adopting high-precision inkjet technology to ensure the clarity and color reproduction of patterns and texts, whether it's complex graphics or small texts, the cup printing machine can perfectly present them.
Diverse material adaptability: It has a wide range of adaptability and can be printed on a variety of materials such as paper cups, plastic cups, glass cups, stainless steel cups, etc., to meet the needs of different customers.
Environmentally friendly ink: Adopt environmentally friendly water-based ink, which has no odor, dries quickly, is harmless to the human body, meets environmental protection standards, and ensures that the printed products are safe and environmentally friendly.
Easy operation: The touch screen operation interface is user-friendly, simple, and easy to learn. Even first-time users can quickly get started, operate, and maintain the machine.
Customization service: Supports personalized customization. Users can choose different printing colors, patterns, and printing methods according to their needs to meet diverse requirements

Six Colors Cup Printing Machine Technical parameters:
|
Model
|
TJYT-6A(standard)
|
|
Printing color
|
6 colors
|
|
Suitable printing material
|
PP, PS, PET, HDPE , etc
|
|
Printing speed (depending on different cup)
|
150-200 pcs/min
|
|
Printing length
|
300mm
|
|
Printing area height
|
35-160mm
|
|
Printing area diameter
|
50-95mm
|
|
Printing cup diameter
|
65-120mm
|
|
Printing mould roller diameter
|
100mm
|
|
Printing plate diameter
|
600mm
|
|
Printing angel
|
3°--13°
|
|
Max. form on printing plate
|
3pcs
|
|
Cup mould roller
|
8pcs
|
|
Air pressure
|
6-8 Bar
|
|
Max. air consumption
|
48 m³/h
|
|
Rated power
|
15.8 kw
|
|
UV lamp power
|
6 kw x1
|
|
Aureole power
|
1 kw
|
|
Dimension
|
L4500*W2500*H2200 mm
|
|
Weight
|
About 4.50T
|
Company Certificate

Application scenarios
Gift customization: Applicable to personalized customization of corporate gifts, wedding gifts, birthday gifts, etc., to create exclusive souvenirs and enhance emotional communication.
Brand promotion: All kinds of companies can use cup printing machines to print brand logos, slogans, etc., to increase brand exposure and market visibility.
Advertising: In various commercial activities, exhibitions, and other occasions, slogans and patterns can be printed by cup printing machines to achieve good publicity effects.
Catering industry: Restaurants, cafes, etc., can all use cup printing machines to print brand logos, creative patterns, etc., to enhance brand image and attract customers.
Exhibition

Partner


FAQ
l. Are you a manufacturer?
Yes, We have been in making plastic thermoforming machineover 17 years.
2. What about the payment term ?
Mostly 30%T/T in advanced, the rest need be paid by TT before shipping.
3. Machine adjustment and installationWe can send technicians go to customers' country for machine adjustment and installation
4. Guarantee time and after-sale.
One year guarantee time, after one year, we have professional after-sales department providing bestservice if customer has any problems.
