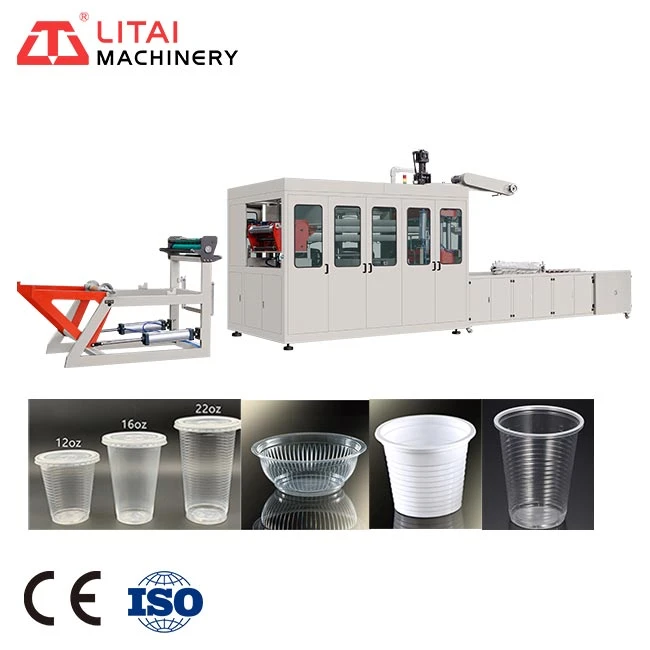

Pp Cup Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
TQC-750 Pp Cup Machine is suitable for producing plastic cup bowl box containers and lids. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 750 x480mm, forming depth 180mm, max production speed 35 cycle/min.
Pp Cup Machine-----Machine structure
The equipment is mainly composed of machine body, plastic molding system, temperature control system, vacuum system, heating system, air control system, electrical and computer control system.
|
SPECIFICS |
|
|
1. Mould is fixed by four pillars. --more stable, precision, lower noise, high speed. |
2.Touch screen and PLC use Siemens, Germany technology . |
|
3.Sheet feeding use servo motor. |
4. Mould streching use servo motor. |
|
5.Automatical Mechanism movement lubricant automatically at certain times. |
6.Auomatic sheet feeder with square steel structure, stable,energy-saving and high efficiency. |
Pp Cup Machine----- Main parameters
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Pp Cup Machine-----Samples:
Packing
Pre-sales service
Introducing in detail features and application of the products to customer.
Selecting economical and practical machine & equipment for customer.
Providing operation data of the related machine & equipment.
Providing means of trial performance for customer.
Sales service
Recommending engineering conditions required for installation if the machine & equipment.
Communicating in time the manufacturing progress of the machine with user.
Providing assistance in technical conditions
