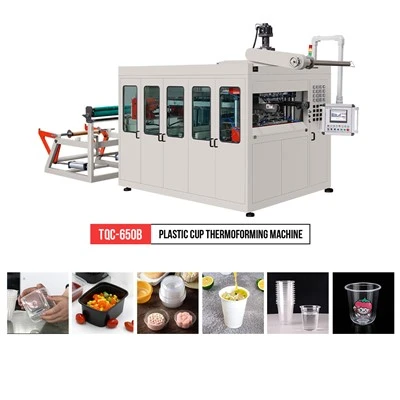

thermoforming machine for snack container

Thermoforming Machine Working Principle:

Plastic thermoforming (blister) technology is a plastic processing technology that processes thermoplastic sheets (plates) into various products. First, the plastic sheet (plate) is heated to a softened state in a heating furnace, and then placed in a forming mold, and under the action of external force (vacuum, positive pressure, or mechanical), it is tightly attached to the surface of the mold to form a and detailed contours of the fit surface. After cooling, shaping, trimming, and other processes, the desired product is obtained.

Features and Advantages of thermoforming machine for snack container

1. Fully servo driven thermoforming machine for snack container, no noise,no vibration,forming good and fast.
2. Fully thermoforming machine for snack container in compact structure,taking small floor space;
3. Positive and negative pressure forming device.
4. Touch screen computer temperature module point to point control function
5. Automatic punching and cutting function.
6. Automatic stack counting function
7. Auto cutting,auto counting,auto transmission by PLC.
8. Labor saving,only 1-2 workers packing.

Parameter of thermoforming machine for snack container

Structure & Design









Feeding Device

Driving by motor. Sheet roll Max diameter 1M. With dust-free plate to keep the sheet clean.





Heating Device

Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy.







Operation Screen

Operator-friendly HMl, and the system has the function of remote connection. lntelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown.









Forming Station

Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.





Punching Station

Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don't need screws to fix the mold and can short the setting time of the mold. It can improve efficiency.



Cutting Station

The cutter has heat functions. This machine adopts mechanical locking mold, which is safe and reliable; This station uses a pressurized lubrication system to ensure that each hinge point is fully lubricated.



Stacking Station

Stacking station has many options to design that can meet more demands of packing.



Waste Recycling

Waste Rewinding System: The edge material is sent to the waste rewinding system for recycling by the conveying system. With a special clutch structure, when the material roll is too large, the power will automatically separate to prevent electric overload and extend the service life of the motor.
