Ice Coffee Drink Cup Forming Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Ice Coffee Drink Cup Forming Machine is the most advanced thermoforming machine technology, a combination of mechanical, electrical and friction components. The entire system is controlled by a PLC. Constant temperature preheating, feeding chain, cam drive, upper and lower mold forming, die cutting. It cuts the sheet into heated stretch forming into a process.
Ice Coffee Drink Cup Forming Machine adopts servo motor for sheet feeding and streching. PLC and touch screen for operation.Suitable for producing plasticcovers(round and square), cups, fruit containers, bowls, trays, fast food boxes and etc.

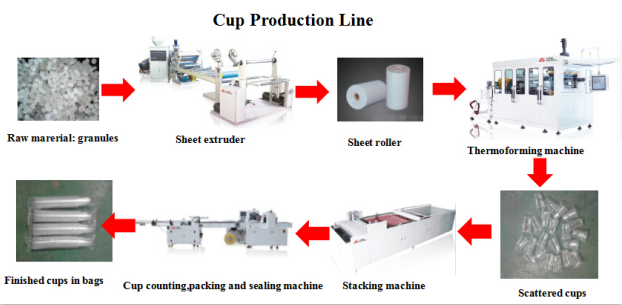

Application of Ice Coffee Drink Cup Forming Machine
Ice coffee drink cup making machine is suitable to produce different kinds of plastic cups, lids, bowls, dishes, containers and etc by using PP/PS/PET/PVC/HIPS/Corn starch sheet.
Parameters of Ice Coffee Drink Cup Forming Machine
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Features of Ice Coffee Drink Cup Forming Machine
1.The machine is totally automatic which saving labor cost and high efficiency
2. Sheet feeding uses servo motor
3. PLC and touch screen uses Simens
SAMPLES

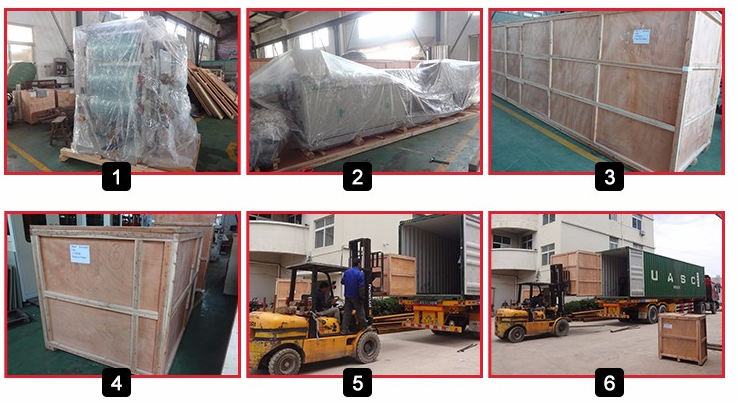

Packing
