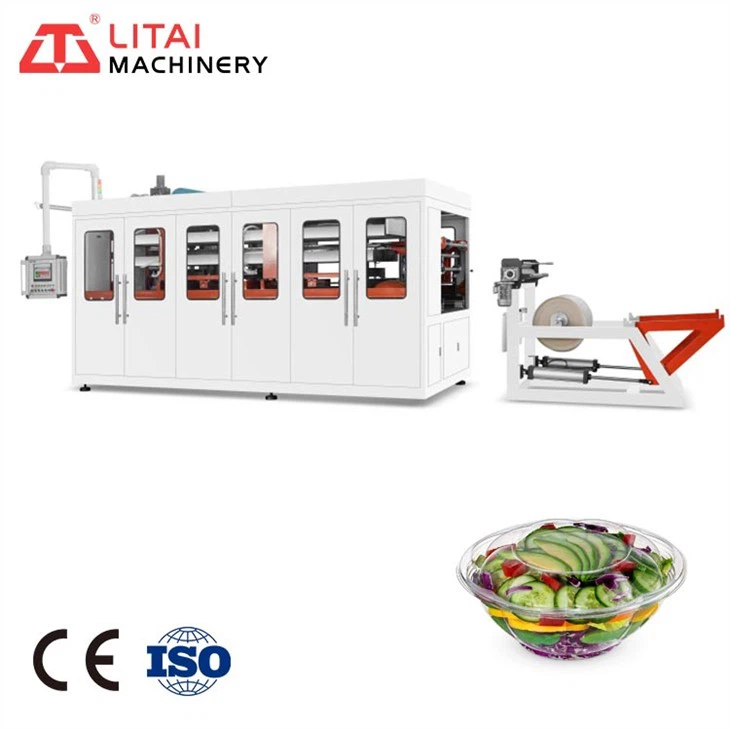

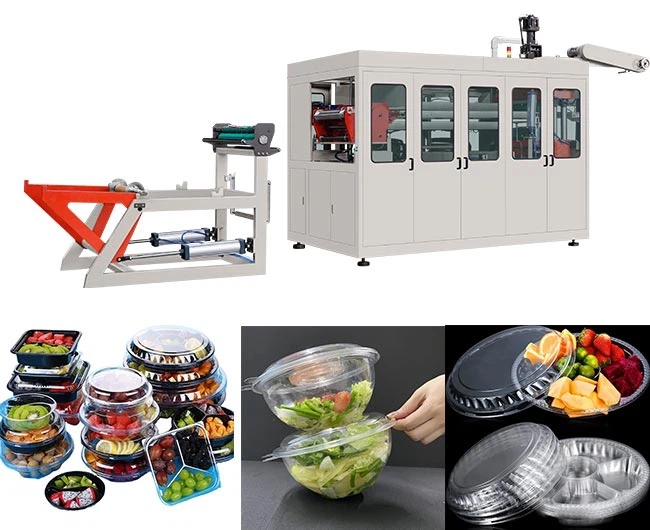

PP Round Plastic Fruit Container Thermoforming Machine

Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

Send Inquiry

Product Introduction

Thermoforming machines allow for the production of various types of food containers, from trays and bows to customized packaging solutions. These machines are capable of handing a wide range of materials, including PET, PP, PS and PLA, providing manutacturers with the flexibility to cater to specitic product requirements. By offering superior precision and fexibility, plastic packaging machines support the growing demand for high-quality food containers that are both functional and aesthetically appealing.
PP plastic fruit container thermoforming machine is used to produce containers, egg trays, food trays, seeding trays, coffee cups lids and etc. Suitable material is PP/PS/PET/PVC/HIPS/Corn starch and etc.

PP Round Plastic Fruit Container Thermoforming Machine Main Features

1. The machine is completely driven by servo motor.

2. The heater is imported from Germany ELSTEIN, which saves 40% energy.

3. PLC and touch screen controls the machine operation

4. It is sheet loading-heating-forming-stacking-waste material rewinding at the same time.

PP Round Plastic Fruit Container Thermoforming Machine Technical Parameter

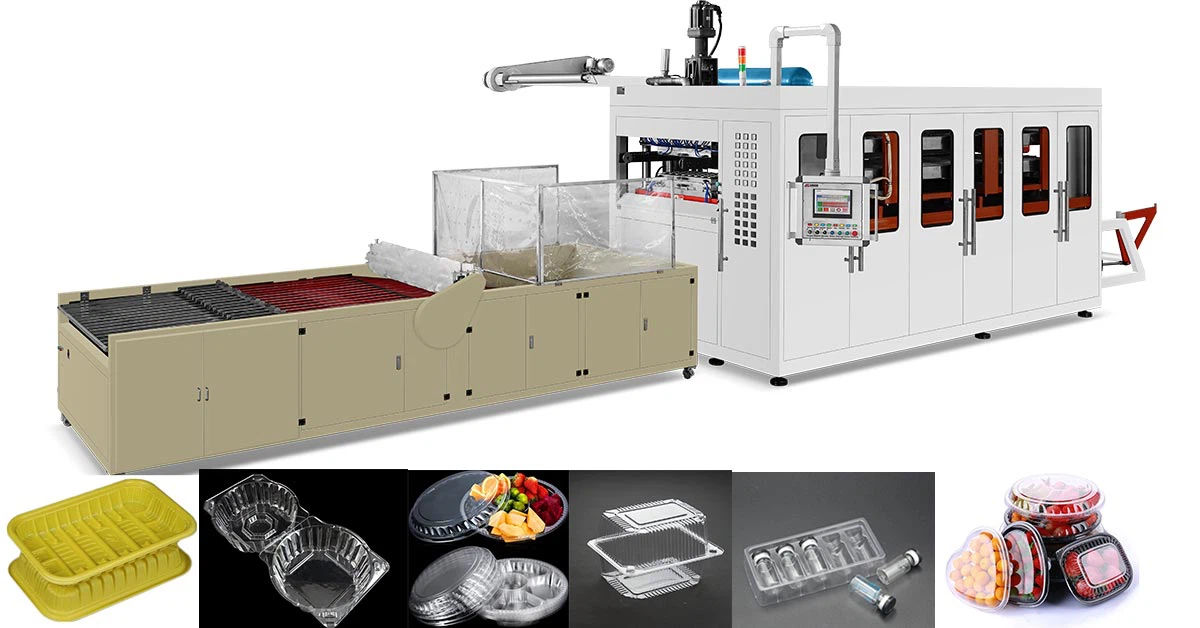

Model	TQC-750
Mould Size (Max.)	750*480mm
Max. Forming Depth	125-180mm(custom height)
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	770mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption
Rated Power	173Kw
Heating Power	146Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2300H3300mm
Weight	About 8T
