Plastic Food Container Thermoformer

TTF series Plastic Food Container Thermoformer is forming, punching,cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency.
Fully automatic forming and cutting machine integrates forming, cutting and stacking at the same time. It has the features of saving labor, improving efficient, lowing labor intensity and reducing production cost. It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.
Plastic Food Container Thermoformer in one step with following process: transporting sheet, heating, forming, cutting, stacking and winding waste edge.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Application of Plastic Food Container Thermoformer:

Plastic food container thermoformer are commonly used for plastic material such as PVC,PET,PP,PS,HIPS and biodegradable materials(PLA), and etc. It is widely used to produce the food trays, hardware, electronics, stationery, medical supplies, daily necessities, cosmetics, handcrafts, toys etc

Plastic Food Container Thermoformer of Parameters

Specification:

1.The machine is fully automatic driven by servo motor.

2. Elstein heater which saves 40% energy.

3.Laser blade for cutting station which is easy to change.

Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

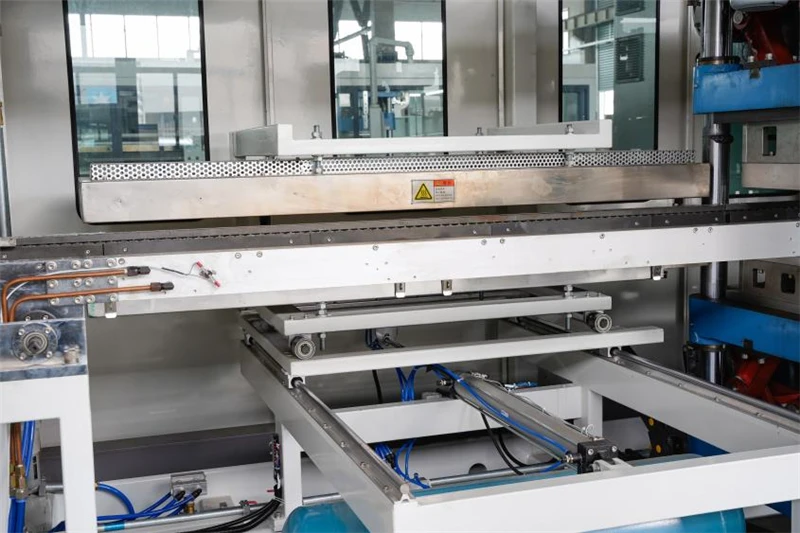

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
