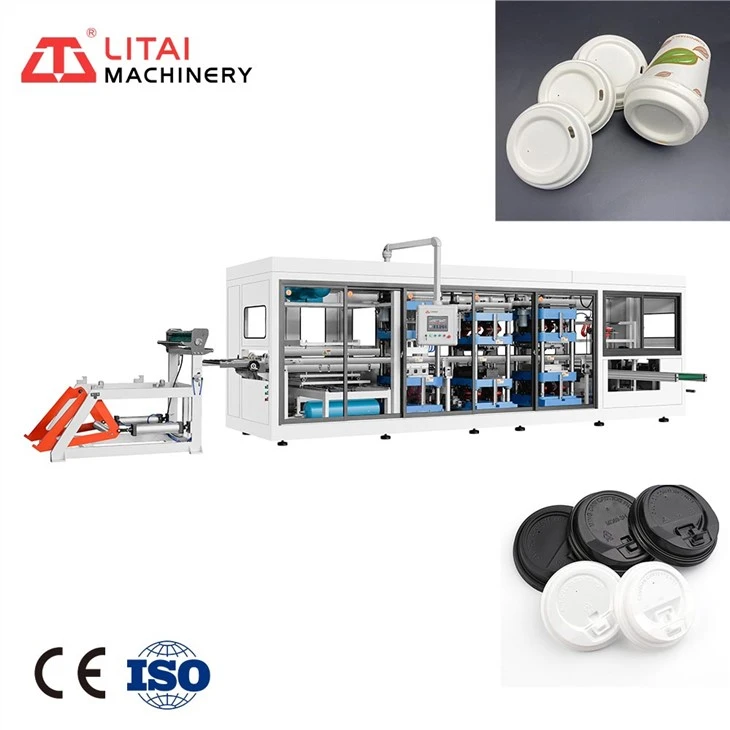

Disposable Plastic PET Fruit Container Making Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.):40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
LITAI is a China Disposable plastic PET fruit container making machine manufacturer specializing in multi-station and automatic thermoforming machines for cups, trays, lids, bowls and food packaging products. Our systems support PP, PET, PVC, PLA and other thermoplastic sheet materials for high-speed, stable production.
- Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets.
- Multi-station production process: Integrates forming, punching, cutting and related production steps to support efficient packaging manufacturing.
- Stable forming performance: Designed for precise production, reliable operation and consistent product quality across different thermoforming applications.
- Flexible application range: Suitable for food packaging, disposable plastic products and other thermoformed packaging needs.

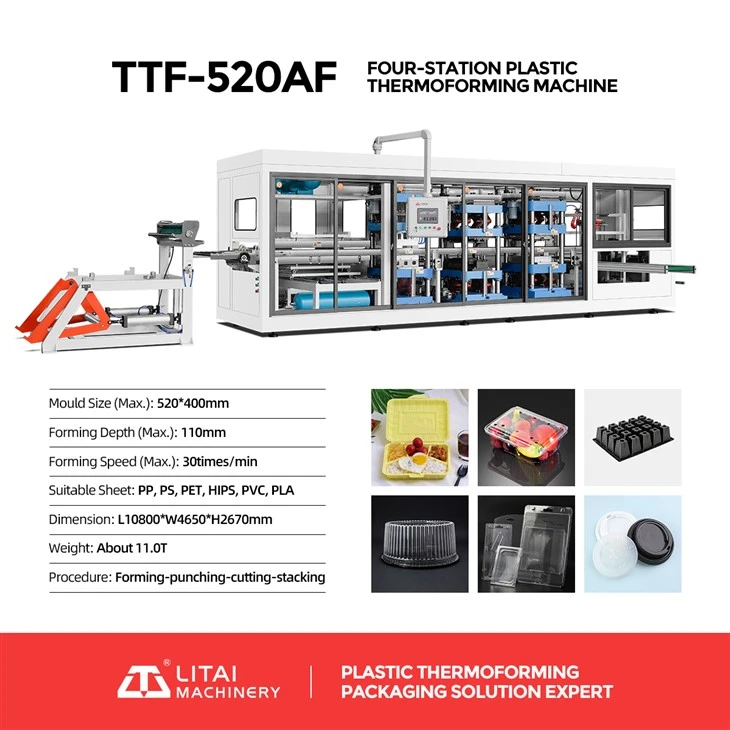

Parameter of Disposable Plastic PET Fruit Container Making Machine
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |

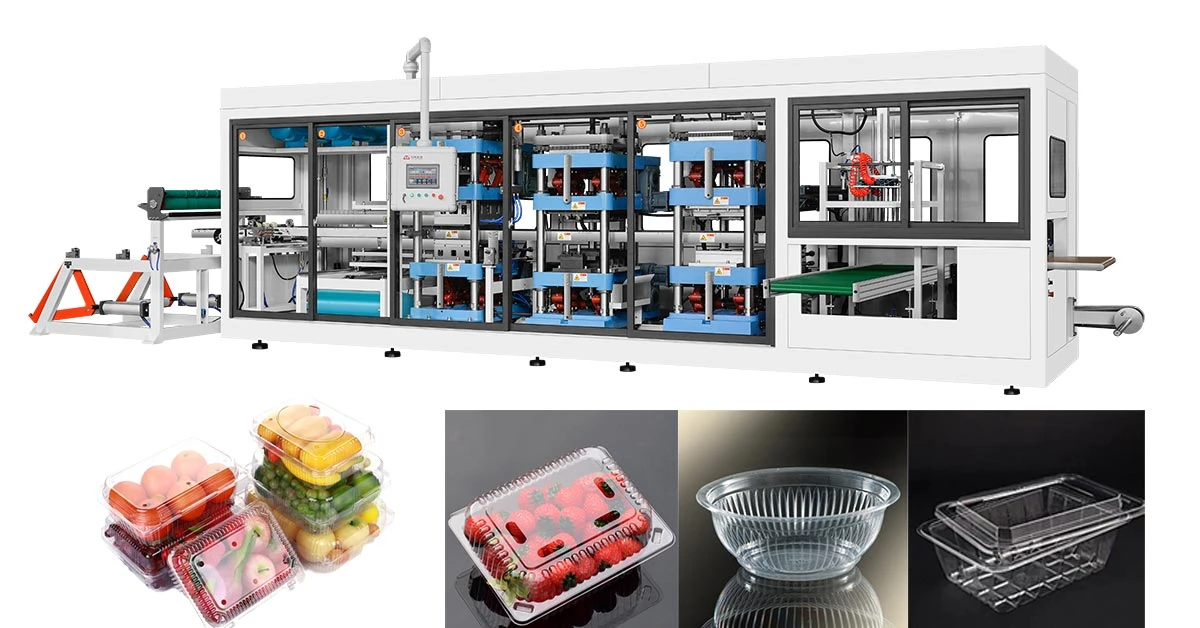

Application of Disposable Plastic PET Fruit Container Making Machine:

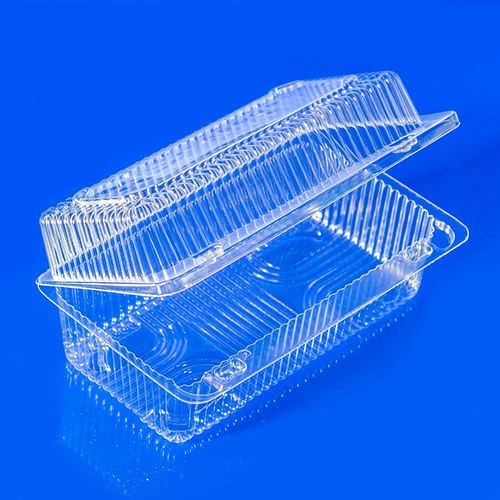

Disposable plastic PET fruit container making machine is used to produce high efficiency plastic lids, fruit box, egg tray, seeding trays, soap tray, bisuit box and etc.

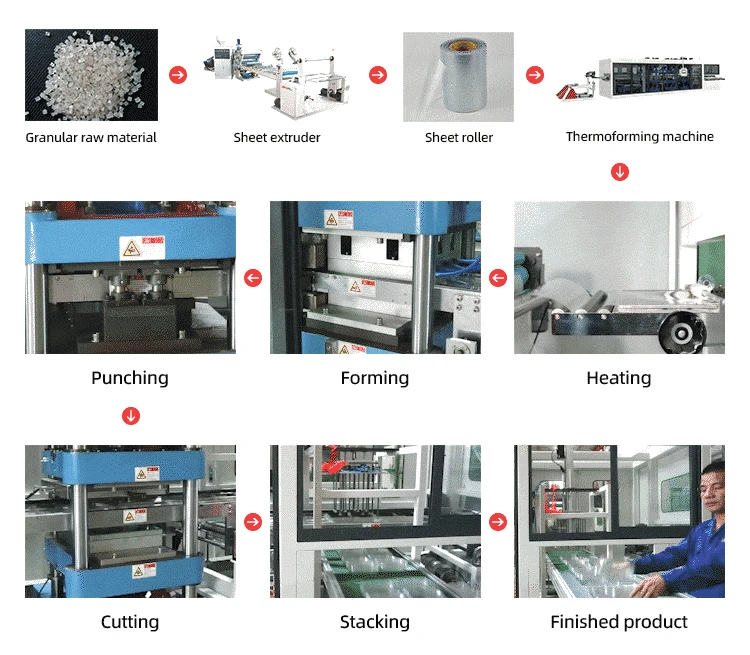

Production Processing:
Taizhang provide complete plastic cup making production line solution from plastic sheet extrusion – plastic cup thermoforming – stacking – plastic cup counting & packaging.
Disposable Plastic PET Fruit Container Making Machine of Features
1. Suitable material is PP/PS/PET/PVC/HIPS/Corn Starch and etc.
2. Upper mould and lower mould are all driven by servo motor
3. Touch screen can be movable which is easy operation
4. The distance from two stations can be adjusted automatically
5. The width of the sheet can also be adjusted according to different mould
6. We can make fruit box with holes in the middle and also hole in the side which is a new technology for our machine
7. Plug stretching is driven by servo motor
Structure & Design
Feeding Device
Heating Device
Operation Screen

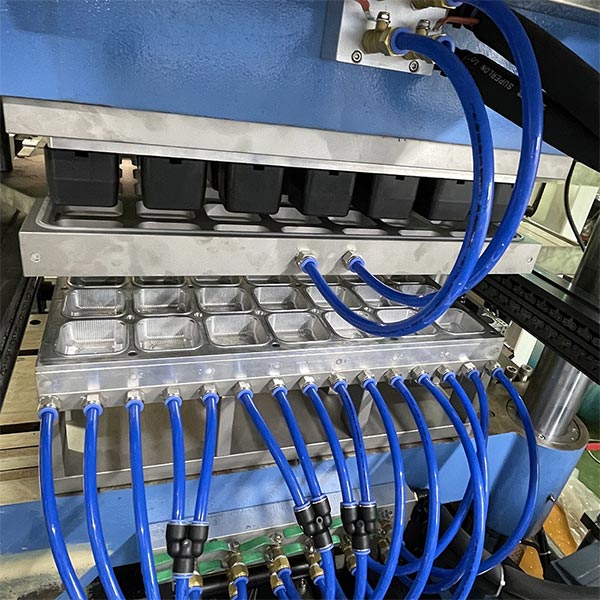

Forming Station
Punching Station
Cutting Station
Stacking Station
Waste Recycling
FAQ
1. Where is your company located:
It's located in Rui'an city, which customer can come by plane or by high speed train from Shanghai and we will pick up you at the station or airport
2. Besides the thermoforming machine, what other products you have?
We have PP/PS sheet extruder, PET sheet extruder, plastic cup making machine, full automatic plastic thermoforming machine, and other auxiliary equipment like chiller, air tank, air compressor and etc.
