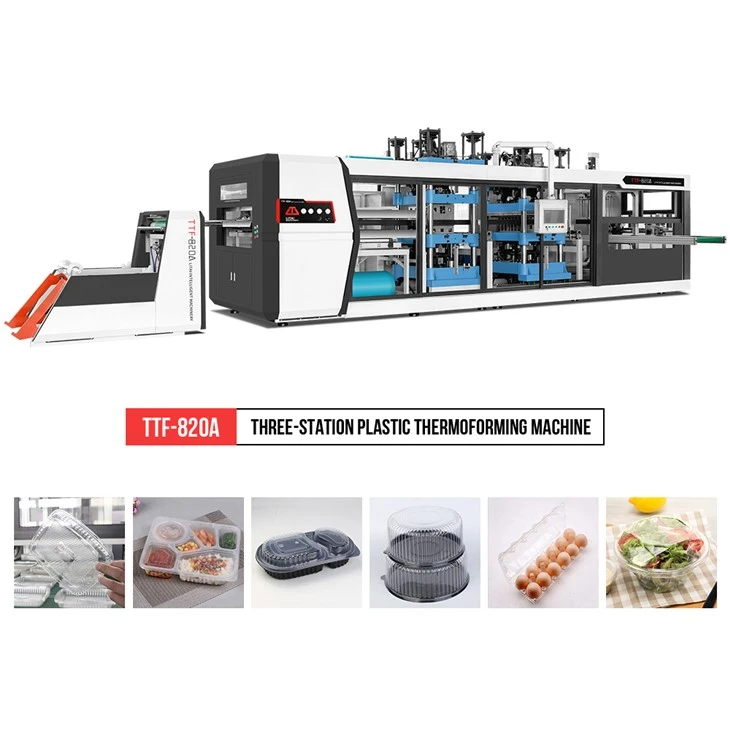

Nuts Container Clamshell Box Making Machine

Model: TTF-820A
Max.Forming Area: 820*650mm
Max.Forming Height: 140mm
Max.Sheet Thickness(mm): 1.2 mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

Send Inquiry

Product Introduction

Fully automatic Nuts Container Clamshell Box Making Machine integrates forming and cutting off at the same time. It is positive and negative pressure forming.
Nuts Container Clamshell Box Making Machine adopts PLC controller and touch screen to control the working programme. It is easy to operate and features high degree of automation, suitable for producing plastic containers, boxes, lids, etc.
Warmly welcome customers at the domestic and abroad to visit litai Plastic Machinery Company for establishing long-term friendly cooperation.

Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets.

Multi-station production process: Integrates forming, punching, cutting and related production steps to support efficient packaging manufacturing.

Stable forming performance: Designed for precise production, reliable operation and consistent product quality across different thermoforming applications.

Flexible application range: Suitable for food packaging, disposable plastic products and other thermoformed packaging needs.

Nuts Container Clamshell Box Making Machine of Parameters

Model	TTF-820A
Station	Three station
Mould Size (Max.)	820*650mm
Forming Depth (Max.)	140mm
Sheet thickness	0.2-2mm
Forming Speed (Max.)	40times/min
Air pressure	0.6-0.8mpa
Air consumption	4.0m³/min
Water consumption	0.7m³/h
Sheet width (Max.)	850mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Rated power	202Kw
Heating power	140Kw
Procedure	Forming-cutting-stacking
Dimension	L12800W4650H2900mm
Weight	About 17T

SAMPLE:

A plastic thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.


Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:820*650mm
Max depth:140mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

The edge material is sent to the waste rewinding system for recycling by the conveying system.

FAQ:

Q1: What advantages do you have for your Nuts Container Clamshell Box Making Machine?
1) We are the one of the leading manufacturers of thermoforming machine and related machinery.
2) Our company is good at experience and advanced technique.
3) Best Quality & Best Service with competitive price.
4) We have CE certificate.

Q2: Where is your factory located? can I visit there?

Our factory is in wenzhou city, zhejiang Province. You can fly to wenzhou airport. When you confirm your flight No. and time, please tell me, then we will pick you up at the airport.
