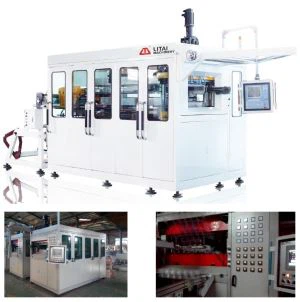

Rectangular Sushi Snack Packing Tray Making Machine

Rectangular Sushi Snack Packing Tray Making Machine

1. Working stations adopt four-pillar structure. --more stable and more precise.2. Touch screen, PLC and servo motor adopt Delta brand from Taiwan.3.Heaters adopts “Elstein” from Germany, vacuum insulation cotton--save more energy.TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency,
Send Inquiry
Product Introduction

Application:

photobank (9)

photobank (11)

photobank (6)

Features:

1)Computer PLC control and automatic alarming function.

2)English or Chinese screen display, easy operation.

3)Electric furnace can be removed from the device automatically.

4)Automatic feeding devices which can help to reduce the labor intensity.

5)The width of feeding caterpillar track can be adjust individual or controlled by motor.

6)Famous brand components, ensure the quality and durability of rectangular sushi snack packing tray making machine.

7)Vertical molding body makes the product easier to shape.
8)Full use of photoelectric detection make features more complete, higher degree of automation and more convenient maintenance.

9) Automatic power-off function to protect the safety of operating personnel.


Samples:

Rectangular Sushi Snack Packing Tray Making Machine


Technical Parameter:

Technical Parameters
StationFour stationsThree station
ModelTTF-520AFTTF-520A
Forming Area520mm x 400 mm
Forming Depth (Max.)110mm
Sheet thickness0.2-2.0mm
Forming Speed (Max.)30times/min
Air pressure 0.6-0.8mpa
Air consumption 3.0 m³/min
Water consumption 0.7 m³/h
Sheet width (Max.)570mm
Suitable Sheet PP, PS, HIPS, PET, PVC, PLA etc.
Power supply AC 380V, 50Hz, Three-phase, Four-wire
Used power55Kw50Kw
Rated power110Kw100Kw
Heating power75Kw
ProcedureForming-punching-cutting-stackingForming-cutting-stacking
DimensionL11000*W4600*H2700mmL9700*W4600*H2700mm
WeightAbout 11.0TAbout 9.0T




Rectangular Sushi Snack Packing Tray Making Machine

FAQ:

Q1:How long does it take to deliver the machine after the order & deposit?

A1:Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At first 30 days the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days the machine will be assembled and tuned to make sure it is ready to deliver.


Q2:What do you need to make a specific offer for my product?

A2:To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production capacity you need per day. If with other special request please also inform us before we make the project.


Q3:Can you offer oversea service for rectangular sushi snack packing tray making machine?

A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.
