PP Tray Forming Machine

Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire

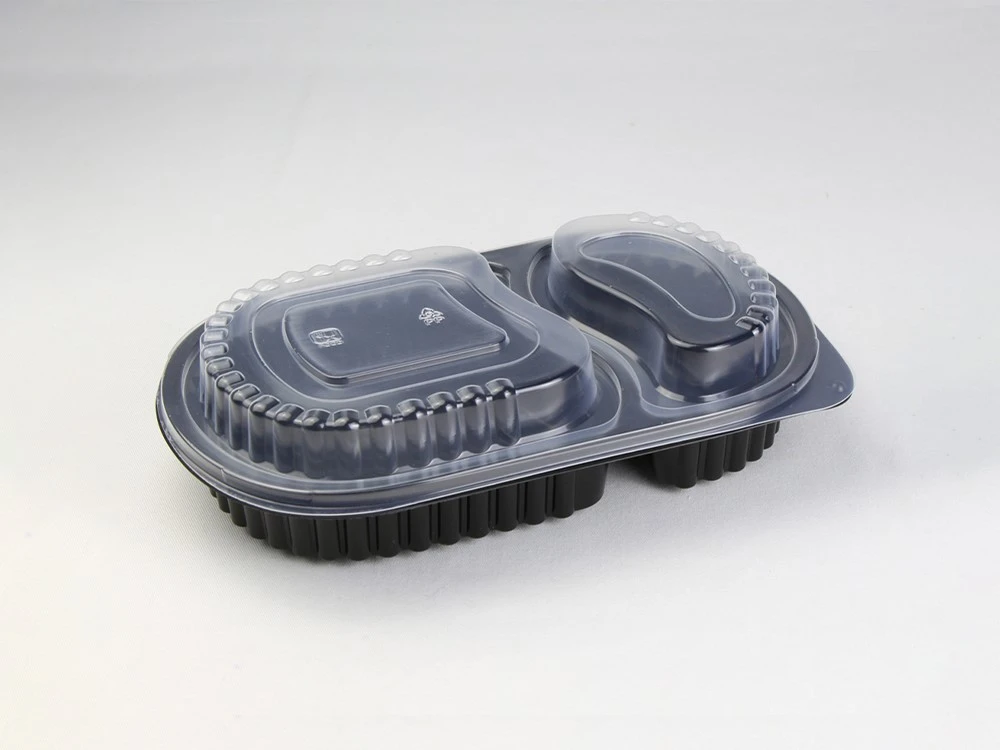

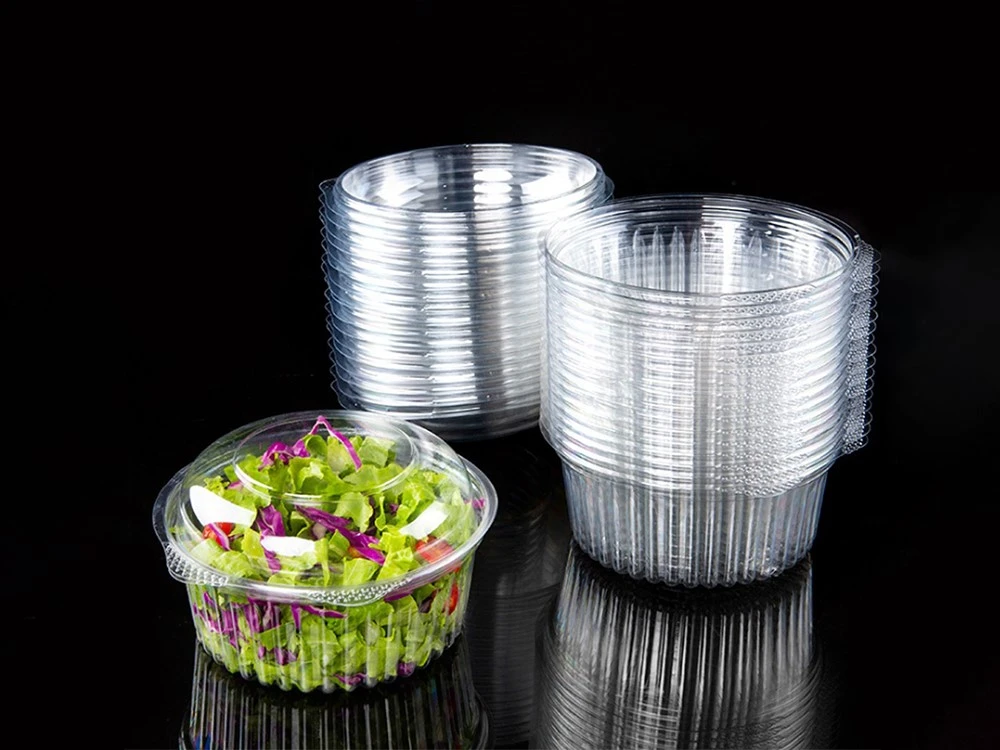

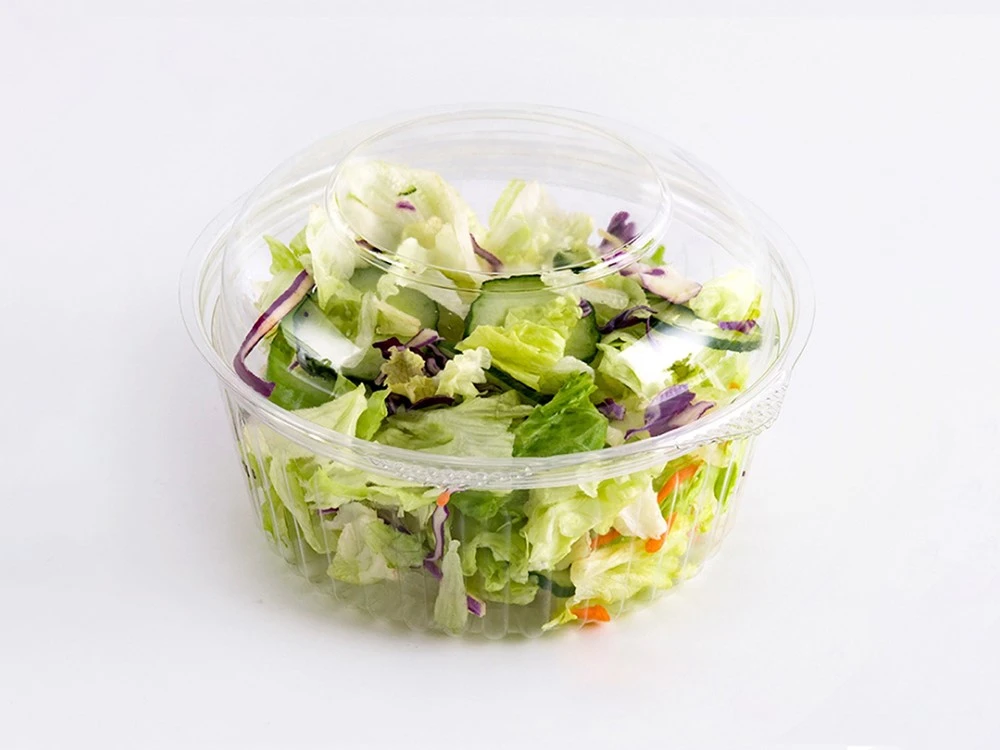

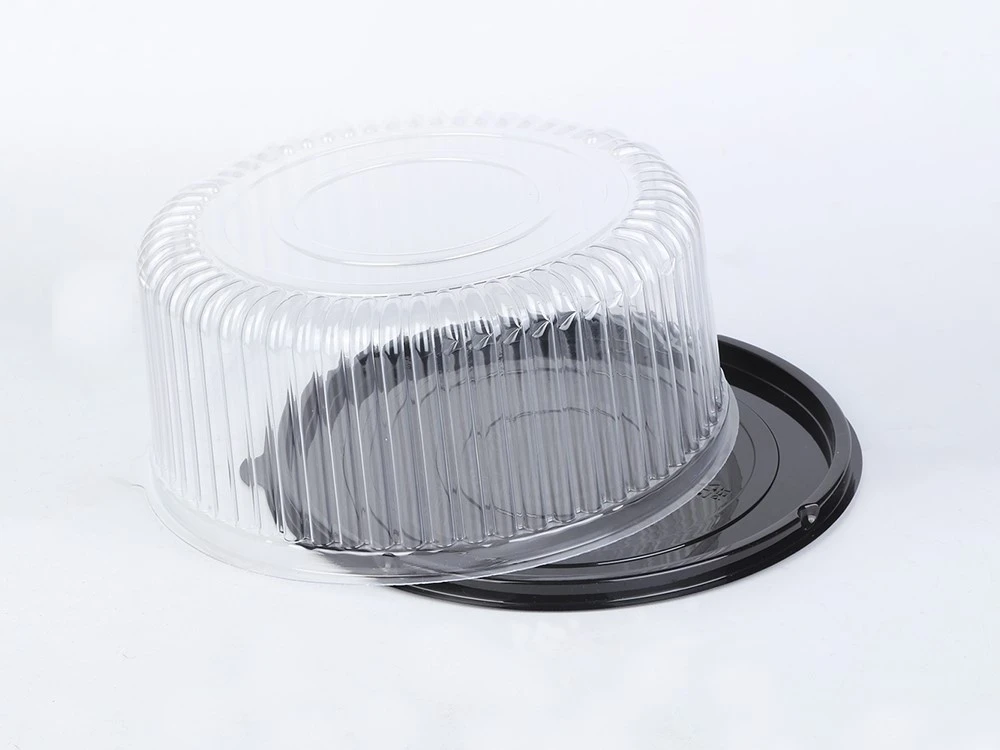

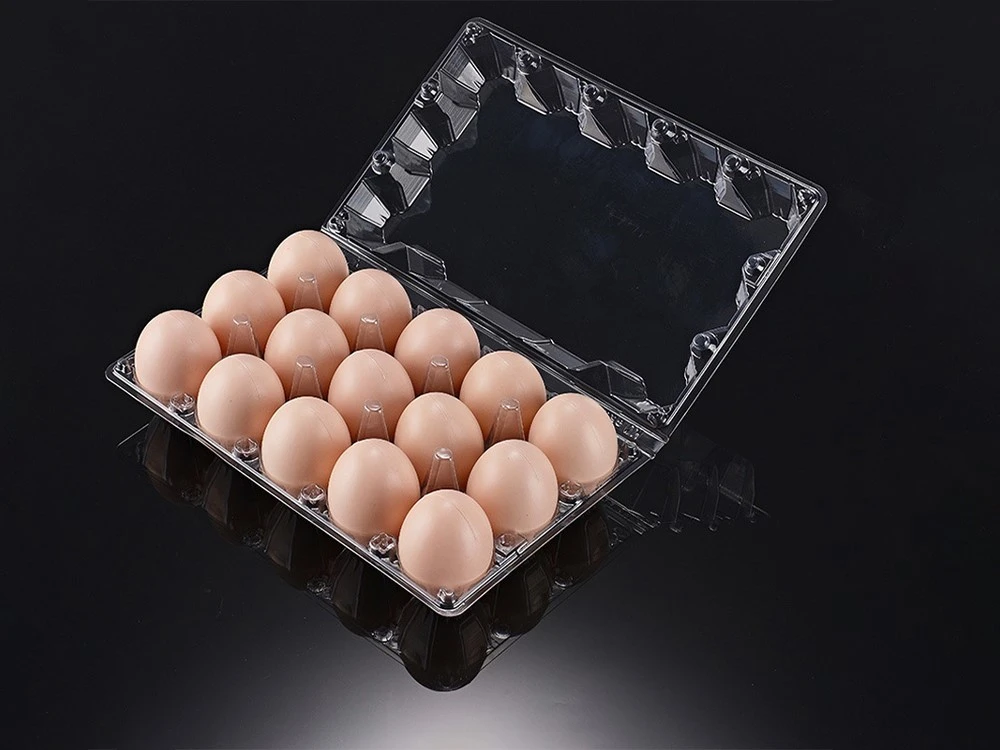

Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

Send Inquiry

Product Introduction

such as PP, PS, HIPS, PET, PVC, PLA and barrier material, processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

PP Tray Forming Machine of function:

1. positive and negative pressure forming device.
2.touch screen computer temperature module point to point control function.
3.automatic stack counting function.
4.edge automatic rewinding function.
5.safety protection device.6. Fully servo driven machine.no noise,no vibration,forming good and fast.7. Furnaces automatic removal device.can be turned down at any time during production without breaking the sheet,reaching without wasting materials;Operation processSheet feeding-sheet heating-forming station-cutting station-stacking station-waste material rewinding

Main Technical Parameter of pp tray forming machine

Model	TTF-820A	TTF-700A	TTF-520A
Mould Size (Max.)	820*650mm	700*550 mm	520*400mm
Forming Depth (Max.)	140mm	120mm	110mm
Sheet thickness	0.2-1.6mm
Forming Speed (Max.)	30times/min
Air pressure	0.6-0.8mpa
Air consumption	4.0m³/min	3.4m³/min	3.0m³/min
Water consumption	0.7m³/h
Sheet width (Max.)	850mm	730mm	550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Rated power	199Kw	188Kw	120Kw
Heating power	140Kw	118Kw	75Kw
Procedure	Forming-cutting-stacking
Dimension	L11800W4300H2800mm	L11500W4500H2800mm	L8200W4650H2670mm
Weight	About 16.5T	About 19.0T	About 9.0T
