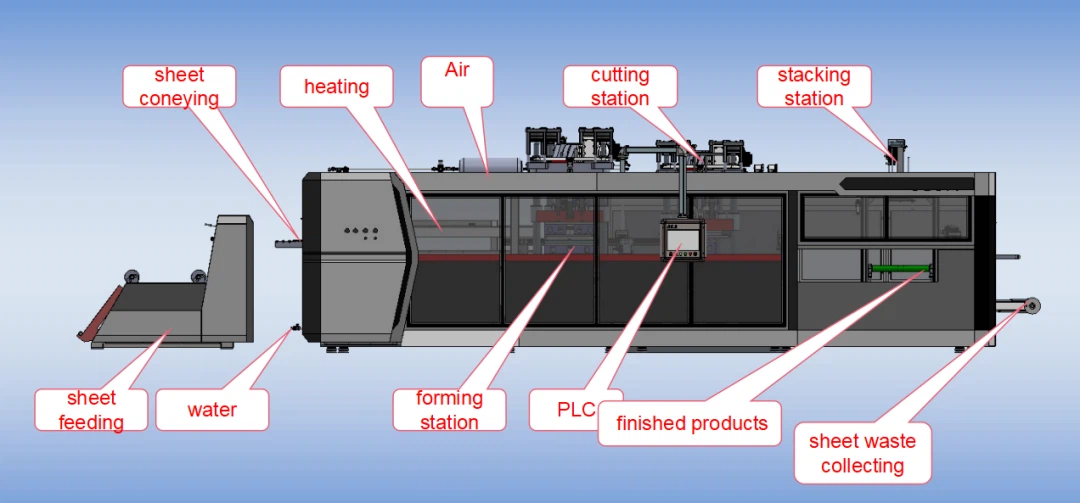

Three-station Plastic Tray Thermoforming Machine

The three-station plastic tray thermoforming machine is a fully automatic, advanced thermoforming solution designed for high-volume production of various plastic containers. This equipment integrates a programmable logic controller (PLC), servo drive mechanisms, and precision heating devices to ensure stable, efficient, and customizable production of disposable food containers, packaging trays, and other plastic products.

Features of the Three-station Plastic Tray Thermoforming Machine:

1. Loading: Move the roll of material within the range of the equipment's robotic arm, then activate the loading switch. The robotic arm automatically lifts the roll into the unwinding drive position, saving time and labor.
2. Thermoforming: The sheet only needs to be heated to 70% of the level required by conventional equipment to begin thermoforming, resulting in high quality and high efficiency.
3. Temperature Control: The temperature differences across the heating zones are calibrated before shipment from the factory. When using the machine, customers simply enter the data on the touchscreen to set the temperature with one touch.
4. Cutting: Utilizes hydraulic die cutting and conventional wooden rule dies. When approaching the product, the machine automatically slows down, and the die automatically provides clearance. This achieves high cutting precision with low die cost.

Features of the Three-station Plastic Tray Thermoforming Machine

• Fully automated operation: The equipment realizes fully automated operations, including feeding, heating, forming, cooling, discharging, etc., reducing manual intervention and improving production efficiency.
• Three-station design: With three stations, multiple products can be produced at the same time, which greatly shortens the production cycle and increases production capacity.
• Precision heating system: Using advanced heating technology, it can accurately control the heating temperature and time to ensure that the plastic material reaches the best molding state during processing.
• Quick mold change: The equipment is equipped with a quick mold change system, which makes product change more convenient and faster, adapting to the rapid changes in market demand.
• Stability and reliability: Full servo motor and various safety devices, the equipment has a stable structure and is made of high-quality materials. It has good durability and stability and can continue to operate stably for a long time.
• Intelligent control system: Equipped with an intelligent control system, the operation is simple and convenient, and can achieve precise adjustment of various parameters, improving the flexibility and controllability of production.

The above, but not limited to, achieve high precision, high efficiency, energy saving, ultra-stable, easy operation, low noise, etc.

Three-station Plastic Tray Thermoforming Machine of Technical Parameter:

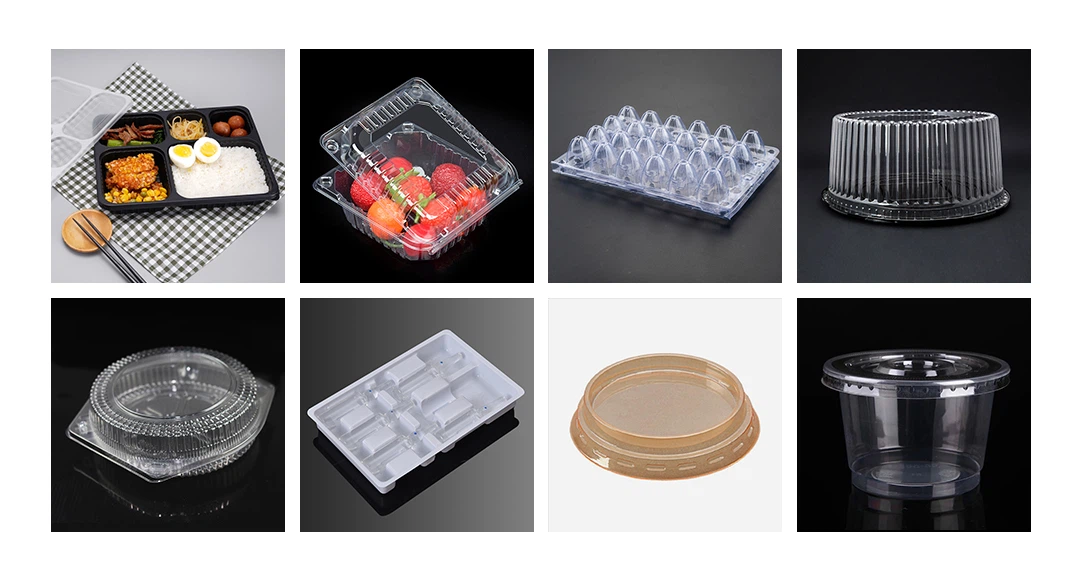

Application areas

The fully automatic three-station plastic thermoforming machine TTF-820 A is widely used in the production of various plastic products, including but not limited to:

• Plastic packaging containers: such as cups, boxes, trays, etc.;
• Plastic tableware: such as dinner plates, tableware sets, etc.;
• Plastic industrial parts: such as various shells, casings, etc.;
• Plastic toys and gift products, etc.
