Plastic Ice-cream Cup Thermoforming Machine
Nom du produit : Plastic cup lid forming machine
Tension : 380V 3P 50HZ
Capacité de production :15-35 cycle/min
Plastic Type : PP, PS, PET, HIPS, PE
Usage :to produce plastic lids,medicine/food/daily/electronics/hardware

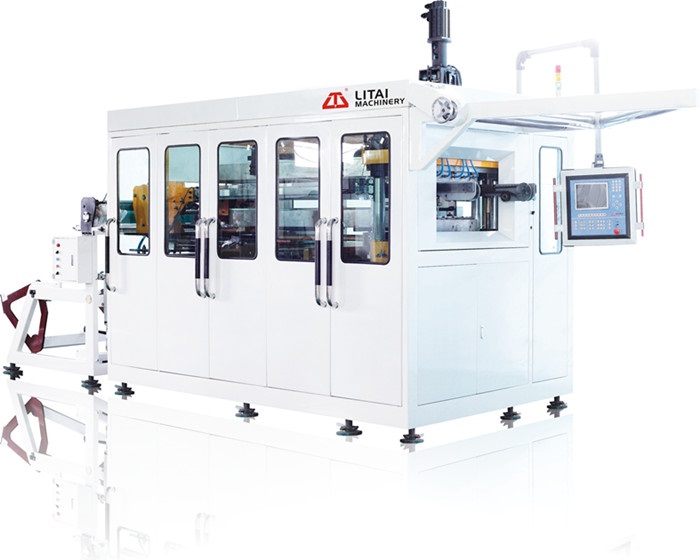

TQC-650B plastic ice-cream cup thermoforming machine adopts servo motor for sheet feeding and streching, PLC for programme, touch screen for operation, stable, low noise and high efficiency.This machine is mainly used for producing disposable plastic vessels, such as tea cup, milk cup, jelly cup,and other plastic product.It can produce PP, PET, PS and ABS material. The machine can finish producing product at one time through sheet feeding, heating, stretching, forming and side-cutting, etc.
Finished Product Samples:

Plastic Ice-cream Cup Thermoforming Machine Technical Parameter:
| Model | TQC-650B |
| Max Forming Area | 650*320mm |
| Max Forming Depth | 125mm |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Our Partner:

FAQ:
1.Are you trading company or manufacturer?
Of course we are manufacturer, and we sell machines to all over the world.
2.Do you have quality certificate?
Yes we have CE and ISO9001:2000 certification.
3.What's the delivery time?
Usually around 60days, however, based on order.
4.What's payment terms ,trade terms you accept?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB Ningbo price. But we also accept other way like L/C,CFR & CIF etc.
5.Does it easy to operate and what can I do if the plastic ice-cream cup thermoforming machine doesn't work?
First ,our machine is stable and easy to operate by one man.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.
