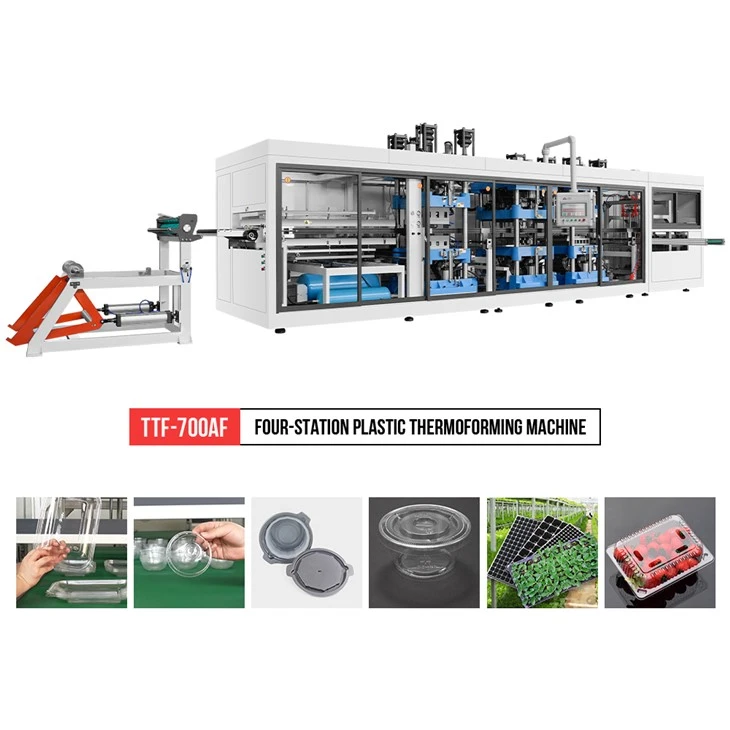

Food Container Making Maker Machine
Model: TTF-700AF
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Our TTF series food container making maker machine can be used to make plastic trays, containers, boxes, lids and etc. We use servo motor for forming, punching, cutting, stacking, conveying, stretching, and our heater is imported from Germany Elstein, which means our machine quality is higher than other suppliers in China.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Product Overview
-
Each station is driven by an eccentric crank-connecting rod mechanism.
-
The feeding and heating parts are equipped with photoelectric switches to prevent misoperation during production.
-
A 65#Mn toothed chain helps to convey the sheet, and the aluminum slide rail is cooled with water to save water.
-
This machine adopts a PID temperature system, with high display accuracy and a temperature control tolerance of <1℃.
-
It has a fast mold change device, which greatly shortens the mold change time.
-
Each servo motor has an overload protection function to prevent the machine from overloading.
-
The low center of gravity and height of the finished product, along with stable operation, ensure easy operation and user-friendly viewing.
-
The sliding door has an alarm function.
Parameter of Food Container Making Maker Machine:
| Model | TTF-700AF |
| Station | Four station |
| Mould Size (Max.) | 700*600 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 35times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.6m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 211Kw |
| Heating power | 118Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L13000*W4500*H2800mm |
| Weight | About 25.0T |
Advantages:
Our factory provide reasonable price and excellent quality.
Quickly delivery to ensure you receive our food container making maker machine in time.
Our engineer provide full technical support.
We have advanced testing department, which can ensure you receive high quality food container making maker machine.
We have project management from design through finished.
We listen, develop products, and service your needs and share our knowlegde and experience so you can benefit from our insights.
