Food Container Making Machine
Model: TTF-700A
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
The Litai Machinery TTF-700AF Food Container Making Machine is designed for plastic food packaging production and widely used in the plastic thermoforming industry. It supports materials such as PP, PS, HIPS, PET, PVC, and PLA sheets, making it suitable for various plastic container production applications.
With a quick mold change system, it significantly reduces changeover time and labor costs while improving production efficiency. Its low parallel deviation ensures stable pressure, better forming quality, reduced machine wear, and longer service life, making it a reliable solution for high-efficiency thermoforming production lines.
Application of Food Container Making Machine:

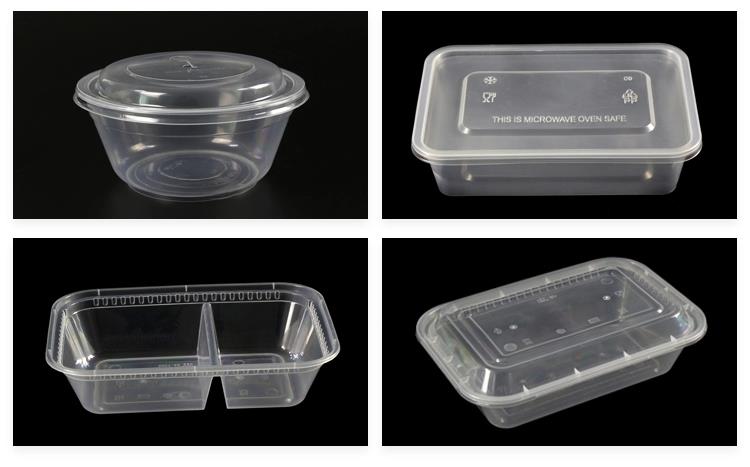

TTF series food container making machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.
Parameter OF Food Container Making Machine:
| Model | TTF-700A |
| Station | Three station |
| Mould Size (Max.) | 700*600 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 35times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.6m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 188Kw |
| Heating power | 118Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L11500*W4500*H2800mm |
| Weight | About 19.0T |
Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.
Forming Station
Max mould size:700*550mm
Max depth:120mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste Recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
Our Service:
Your inquiry concerned about our food container making machine or prices will be replied in 24 hours. Well-trained and experienced sales team will respond to all your questions in English. Protection of your market,and all your private information. With years of manufacture and promotion experience for food container making machine in global market,Litai brings you profit and great success!
