Plastic Sheet Machinery

APPLICATION AREA The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness...

Send Inquiry

Product Introduction

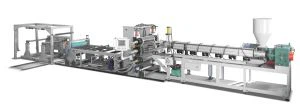

The TJ-750D is a Plastic Sheet Machinery for PP, HIPS, and PE. Max output 350kg/h with energy recovery system. Ideal for thermoforming sheets and stationery.
The Plastic Sheet Machinery is a robust manufacturing solution designed for producing high-quality plastic rolls. It is specifically engineered to process Polypropylene (PP), High Impact Polystyrene (HIPS), and Polyethylene (PE) resins. With a high output capacity of 350kg/h, this machine produces sheets with uniform thickness and excellent surface finish, making it the primary equipment for supplying material to thermoforming machines and stationery manufacturers.


Die Head on Plastic Sheet Machinery

1.Single structure: enable the melting material be flowed evenly from the outlet.

2.T-die Design：easy to extrude melting material.

3.Die Head Width：730mm Sheet Width：670mm (can adjust sheet width according to requirment.)

4.Sheet thickness：0.25-2mm

5.Heating way: aluminium alloy

Plastic Sheet Machinery Technical Parameters

Model	TJ-750D
Suitable Sheet	PP,PS
Sheet Width (Max.)	750mm
Mould width	950mm
Sheet Thickness	0.3-2.0mm
Compressed air source pressure	0.6-0.8Mpa
Screw Rod Dia	110mm
Screw L/D Ratio	33:1
Max. Output	240kg/hour
Rated Current	340A
Rated Powe	160kW
Energy consumption	220kW
Main Motor Power	110kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L14000W2600H1800mm
Weight	About 8T
