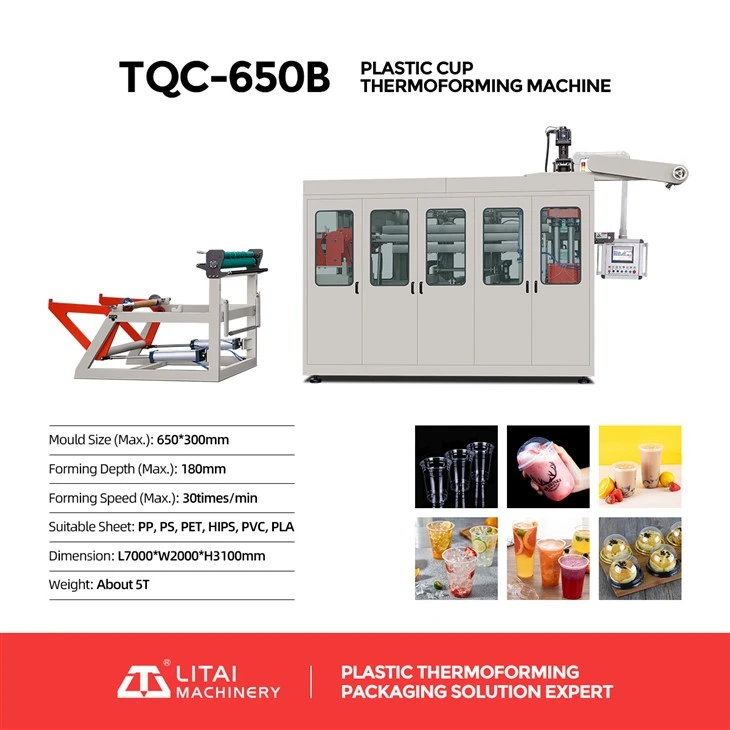

Ice Cream Cup Producing Machine
Model: TQC-650B
Nom du produit : Plastic cup lid forming machine
Tension : 380V 3P 50HZ
Capacité de production :15-35 cycle/min
Plastic Type : PP, PS, PET, HIPS, PE
Usage :to produce plastic lids,medicine/food/daily/electronics/hardware
-Ice cream cup producing machine is mainly designed to produce ice cream cup.At the same time also can processing medicine, light industry, textile, tourism, toys and other relevant plastic packaging products.
It uses stable hydraulic system and pneumatic technology to control together.Its operation is stable, noise is small, mold locking ability is strong and quality is high. Different sizes and shapes are available that it can make according to customers' ideas. Environmentally friendly that the ice cream cup can be reusable and disposable. Strong support, easy operation, safety and durablity High degree of automation, production speed. By installing the mold to produce different products, to achieve more purposes of one machine.
Technical Parameter of Ice Cream Cup Producing Machine
| Model | TQC-650B |
| Max Forming Area | 650*320mm |
| Max Forming Depth | 125mm |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Features of Ice Cream Cup Producing Machine
1. Suitable for Multiple Plastic Materials
The machine supports PP, PET, PLA, PVC, HIPS, BOPS, and other thermoforming materials, making it suitable for disposable food packaging and eco-friendly biodegradable cup production.
2. Full Servo Hydraulic Control System
The machine adopts a full servo hydraulic control system to ensure smooth operation, stronger forming power, and more stable product quality during high-speed production.
3. Large Forming Area and High Production Speed
With a maximum forming area of 650 × 320mm and production speed up to 35 strokes per minute, the machine is suitable for medium and large-scale disposable cup manufacturing.
4. PLC Intelligent Touch Screen Control
The touch screen control system supports electrical adjustment, recipe storage, temperature control, and remote maintenance, helping operators reduce workload and improve production efficiency.

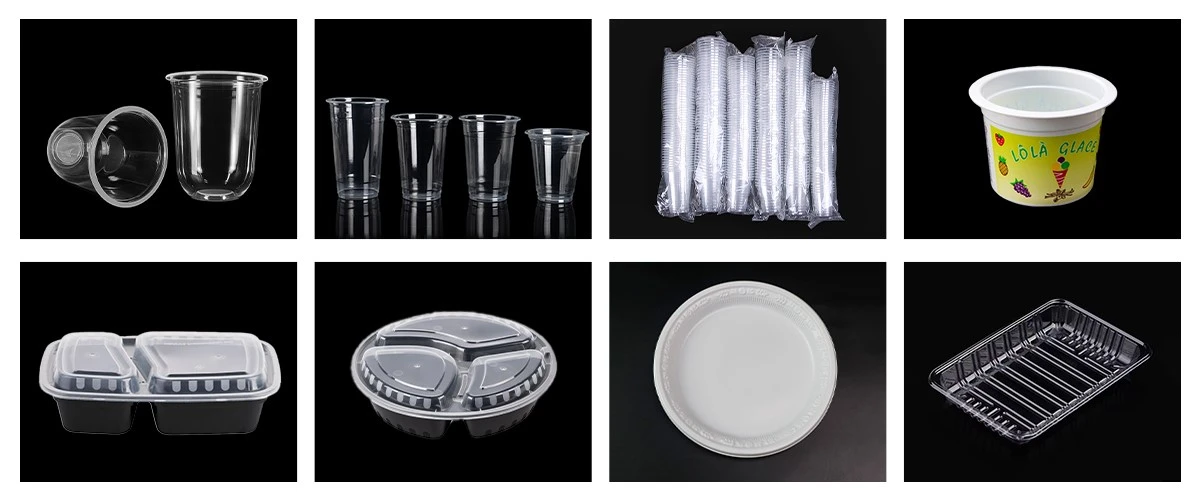

Samples:
