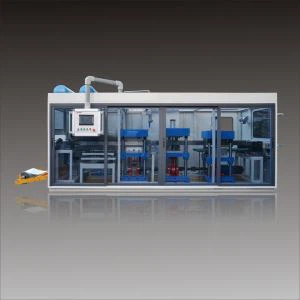

PP Cup Making Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
PP Cup Making Machine---Product Description
PP cup making machine is competely driven by servo motor. It adopts Japanese Yaskawa brand servo motor to feed sheet and strech mold. The operation is using touch screen which is controlled by PLC programe. Advantages are stable running, low noise and high efficiency. Suitable for producing plastic products like PP cups, fruit boxes, clamshell food containers, bowls, trays, fast food boxes and etc.
PP Cup Making Machine---Machine main parameter
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
PP Cup Making Machine---Product Features
1.suitable for PP/PS/PVC/PET sheet.
2.The forming area is 750*480mm.
3.The max.forming speed is 25 times/min.
4.Adopt Japan Yaskawa servo motor for sheet feeding and stretching.
5.Touch screen and PLC use siemens, Germany technology.
6.Mould is fixed by four pillars structure.
Finished Product Samples
FAQ
Q1: How many countries you already exported ?
A1: Exported to more than 80 countries mainly from the United States, Canada, Russia, Turkey, Kuwait, Brazil, India, Republic of South Africa, Indonesia, Philippines etc.
Q2: How about the delivery time?
A2: Generally delivery time is 2- 3 months.
Q3: How does your company do regarding quality control?
A3: The CE Certificates and the ISO 9001 System.
Q4: How to get the product quotation?
A4: Please tell us your required product size & material & width & thickness & purpose.
You can add my WhatsApp and WeChat(008619967352685) for fuether communicate.
