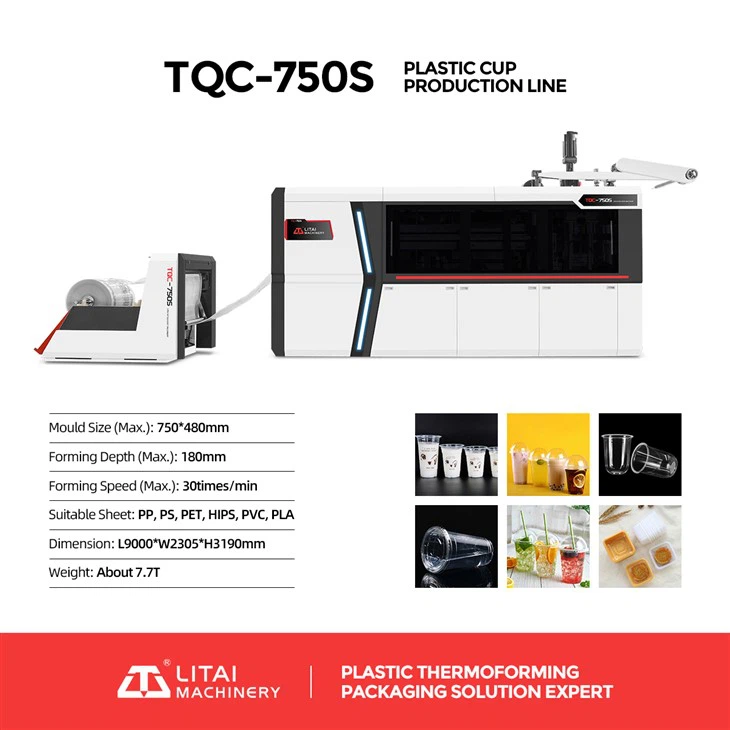

Automatic Cup Making Machine
The TQC-750S is engineered for mass production of:
Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?
Aautomatic cup making machine only need one person to operate. This machine is well sold in southeast Asia, African, east Europen and north American. It is mainly used to produce all kind of plastic cups. Also this machine can produce fruit containers, bowls, trays, fast food boxes by changing different molds.It can produce various kind of disposable plastic cup,plastic containers of cooling drinks,sour milk,ice-cream,fast food or install noodle,as well as different kinds of merchandise packages of medicine,toy,journal,Textile and light industry,etc.
Machine main parater of Automatic Cup Making Machine
| Model | TQC-750S |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 207Kw |
| Heating Power | 180Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7900*W2300*H3400mm |
| Weight | About 8.2T |

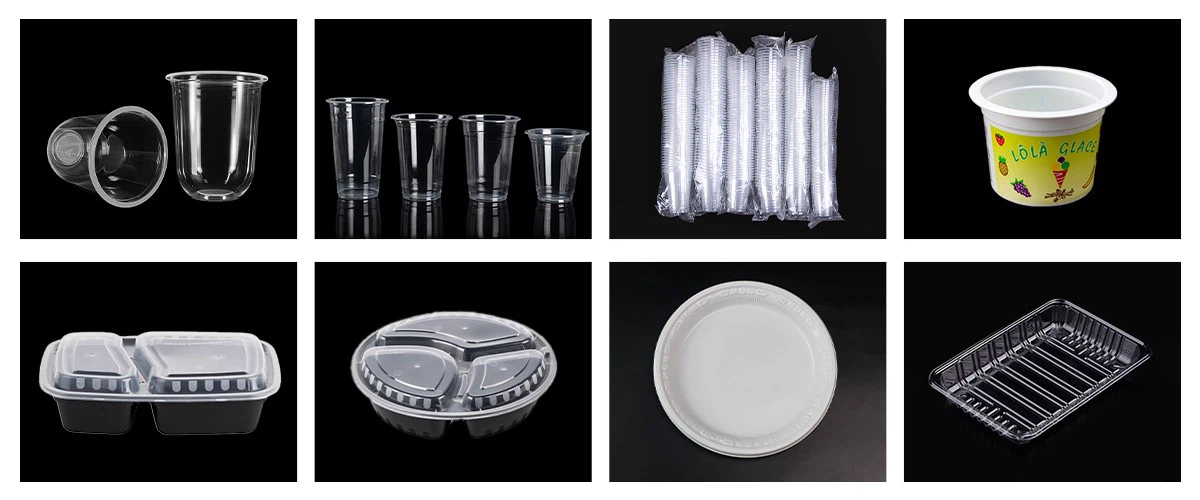

Finished Products
Why us:
1) Any of your requirements or questions about our products will get reply within 24 hours.
2) We will protected all your private informations.
3) Offer high quality and good price to you.
4) FOB and CIF are acceptable.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory for more than 18 year manufacture experience.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: 13 months warranty, includig 1 month shipping.
4. Q: What's the main market of your company?
A: Our products are well sold all around the world and exported to many different countries, such as Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
