Jelly Cup Making Machine
Maximum forming layout: 750 * 480MM, can accommodate thermoformed products with various diameters and more cavities
Production speed: 15-32 molds/mins, significantly improving production efficiency
Material compatibility: PP, PS, HIPS, PET, PVC, PLA etc.

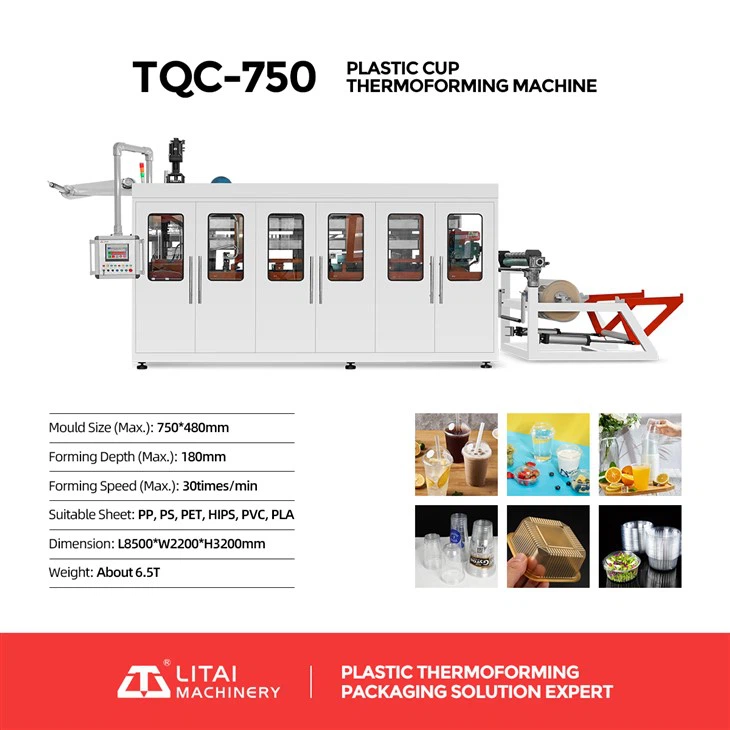

TQC-750 plastic thermoforming machine(jelly cup making machine) adopt servo motor for sheet feeding and streching, PLC for programe, touch screen for operation, stable, low noise and high efficiency. Suitable for producing plastic cups, ice cream cups, fruit containers, bowls, trays, fast food boxes and etc.
Jelly Cup Making Machine Features:
1.Mould is fixed by four pillars---more stable, precision, lower noise, high speed.
2.Touch screen and PLC use Siemens, Germany technology .
3.Sheet feeding use servo motor.
4.Fully servo driven machine.no noise,no vibration,forming good and fast.
5.Labor saving,only 1-2 workers packing.
6.Positive forming and Negative forming(air pressure forming plus vacuuming forming).
7.Automatic Stacking, Counting and conveying system.
8.Accessing to all digitalized functions by pressing touch screen.
9.Touch screen and programmable PLC control.
Jelly Cup Making Machine Paramonters：
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |

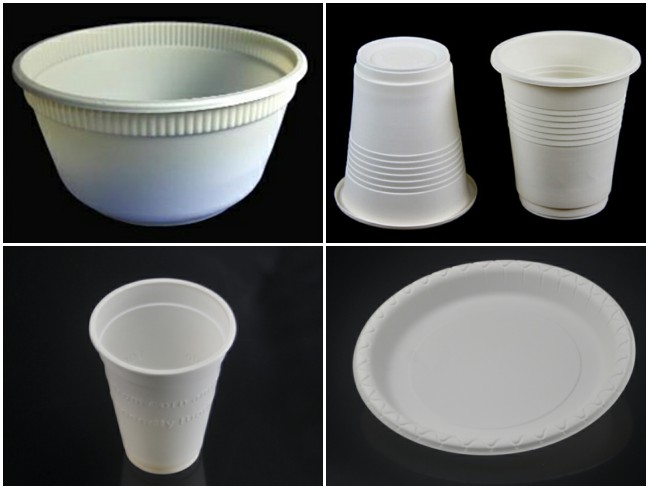

Jelly Cup Making Machine----Product samples
