Plastic Disposable PP Glass Making Machine

plastic disposable PP glass making machine. Long enough oven,Max speed can reach 25-30 times/min when making. PP material products on this machine. The forming part is driven by hydraulic system, which is reliable and steady. And stretching, sheet feeding part are driven by servo motor, which makes finished products size more accurate and the bottom more uniform.

Send Inquiry

Product Introduction

Plastic Disposable PP Glass Making Machine

Production Process

TQC-series is a multifunction Cup Thermoforming Machine.It is a high efficient, integrated integrated electromechanic-pneumatic-integration design automatic plastic thermoforming equipment researched and developed by our company based on the plastic thermoforming technology.

TQC-750 is one model of the TQC series thermoforming machine , this machine working progress is from the Feeding sheet-to heating area -then to the stretching-forming-cutting place can be done in one processing.

Machine detail

650B

Samples

201808211318277277947

Disposable Bowl Making Machine Application

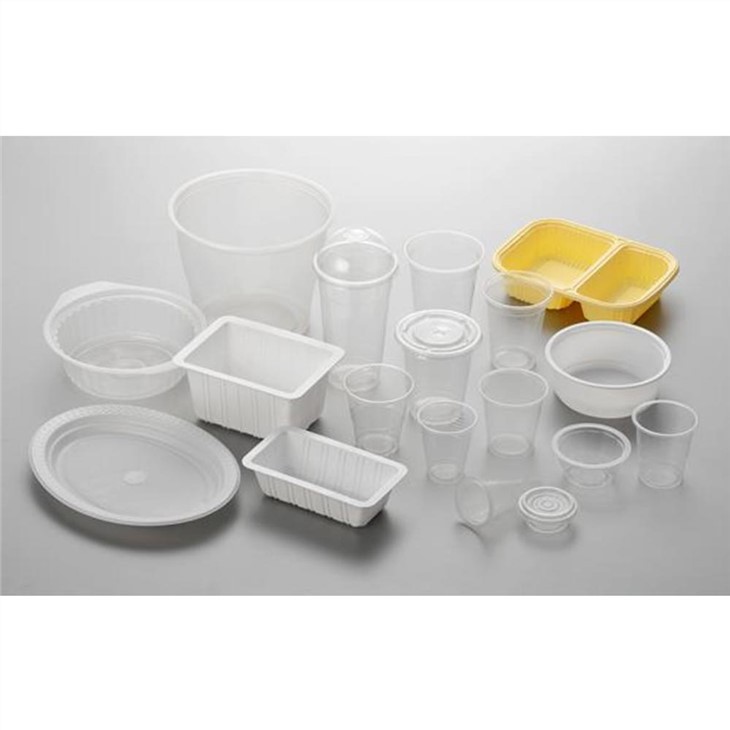

1.Disposable bowl making machine is suitable to produce plastic products like disposable plastic cups,ice cream cups,cold drinking cups,yoghurt cups,fast food box,bowls for convenience noodles,fruit trays, cup lids,food box,ect.

2. Forming Type: Positive forming type

3. Mould: Composite structure multifunction (air compression, shaping, die-cut, take-off,etc.)

4.Automatic sheet feeding: it can reduce load of motor, improve precision of feeding dimension.

Exhibition&Customer Photos

_02

PACKING

Our Services:
1.Machine installation:
We can send technicians to customer's factory to install the machine and mould.

2.Guarantee period and after-sale service:
Guarantee period of our machine is 13 months.Within guarantee time,if there is some sparts broken or damaged not caused by the human factors,we will send it to customers for free.

Also we will train the workers how to use the machine and change the mould.

3.Machine installation and Commission:

In fact , We ship the whole machine, after receiving the machine, you only need to connect the machine,

no additional installation is required, it’s easy to operation.

After the epidemic, online support for installation and debugging is more common, there are machine operation

manual and operation videos would be transferred to you online after your machine finished shipment,

and we also supply video communications if you have any needs in machine installations.

Technical Parameters
Model	TQC-750	TQC-650B
Max. Forming Area	750*480mm	650*320mm
Max. Forming Depth	125mm（custom height）
Sheet Thickness	0.3-1.8mm
Sheet Width	760mm	650mm
Max. Forming Speed	35 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min	2.0m³/min
Water Consumption	0.7m³/h	0.5m³/h
Rated Power	140Kw	98Kw
Used Power	98Kw	69Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2200H3100mm	L6000W2000H2700mm
Weight	About 6.5T	About 5T
