Packaging Box Thermoforming Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Packaging box thermoforming machine is a professional equipment used to heat and soften various thermoplastic plastic sheets (such as PVC, PET, PP, PS, etc.) and form them through vacuum or pressure molds. It produces packaging boxes, trays and other products of various specifications and shapes by uniformly heating the plastic materials and then precisely forming them. They are widely used in food packaging, medical consumables packaging, electronic product packaging, toy packaging and other fields. Thermoforming machine for packaging boxes has the advantages of high production efficiency, high molding accuracy and easy operation.
Technical Parameters of Packaging Box Thermoforming Machine
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Packaging Box Thermoforming Machine of application
1. Food packaging industry
Thermoforming machine can produce various food packaging boxes, such as disposable lunch boxes, fruit and vegetable trays, cake boxes, fast food boxes, etc. It can not only meet the requirements of food safety and hygiene.
2. Medical packaging industry

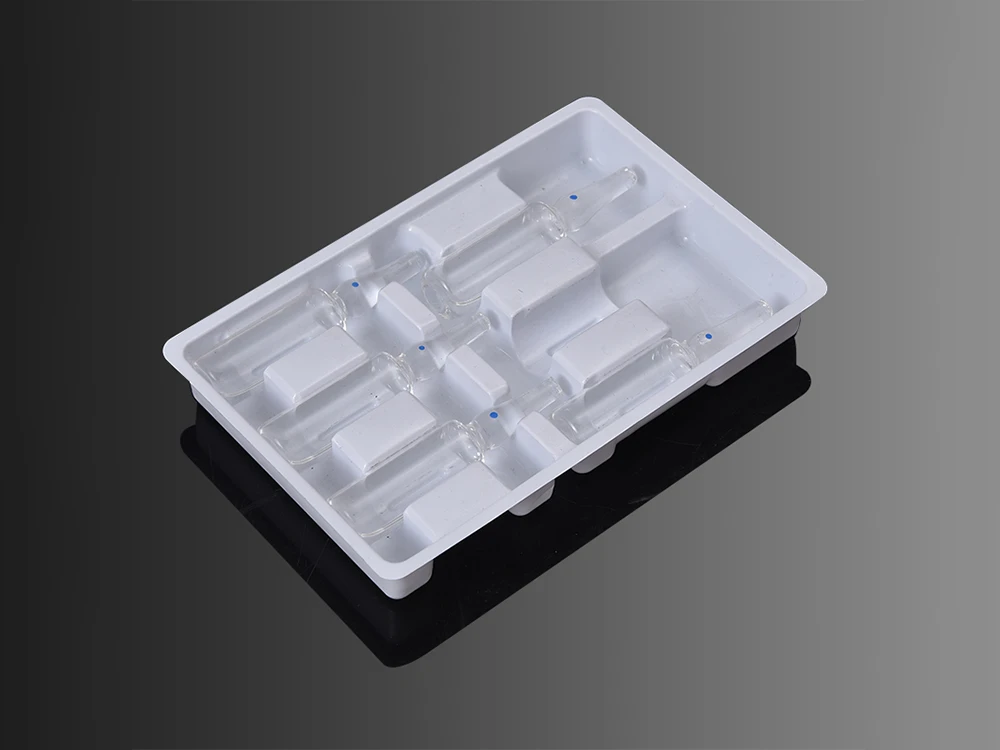

The equipment is suitable for the production of packaging boxes for medical consumables, such as syringe trays, medical glove boxes, disposable medical device packaging boxes, etc.
3. Daily necessities and toy packaging industry
The equipment is also suitable for the production of packaging boxes for daily necessities, toys and other consumer goods, providing a variety of product display forms and enhancing the packaging attractiveness of the goods.
Packaging Box Thermoforming Machine of Features
Highly automated production process
Equipped with advanced automation and an intelligent control system, the machine enables fully automated production from sheet heating, forming, cutting, and stacking to product output. The entire process is precisely controlled by a PLC.
Precise temperature control and energy-saving design
The advanced temperature control system ensures precise sheet heating within the optimal range, avoiding overheating or underheating for stable molding.
Multi-material compatibility
The machine supports various thermoplastics, including PVC, PET, PP, and PS – each with different characteristics to meet diverse packaging needs. It also handles materials of varying thicknesses and hardnesses.
High-precision mold forming
The high-precision mold system ensures accurate dimensions and a smooth surface for each packaging box. Molds can be flexibly customized to customer specifications and are easy and quick to replace, allowing fast switching between different product lines.
Intelligent operation interface
The HMI (human-machine interface) features a simple, intuitive touchscreen that allows users to easily set production parameters and monitor the process in real time. Operators can flexibly adjust heating temperature, molding time, cutting position, and more to keep the machine running optimally.
Flexibility and scalability
The machine offers strong flexibility and scalability to adapt to different packaging needs. By changing molds, it can quickly produce boxes of various sizes and shapes. It can also integrate with other automated equipment (e.g., automatic stackers, labeling machines) to create a more efficient, integrated production line.
Product advantages
1. Efficient and stable
The packaging box thermoforming machine adopts advanced automation design to ensure long-term stable operation of the equipment, greatly improve production efficiency, and is suitable for large-scale industrial production.
2. Environmental protection and energy saving
Through precise temperature control and energy-saving design, the equipment effectively reduces energy consumption, reduces corporate production costs, and reduces the generation of plastic waste, complying with modern environmental protection standards.
3. Quick switching and customization
Mold replacement is easy and supports rapid switching to produce packaging boxes of different specifications and shapes, greatly improving production flexibility. The equipment also supports customized mold design to meet customers' individual needs.
4. Reduce labor costs
The fully automated production line significantly reduces the need for manual operations, improves the degree of automation and product consistency of production, and reduces labor costs.
