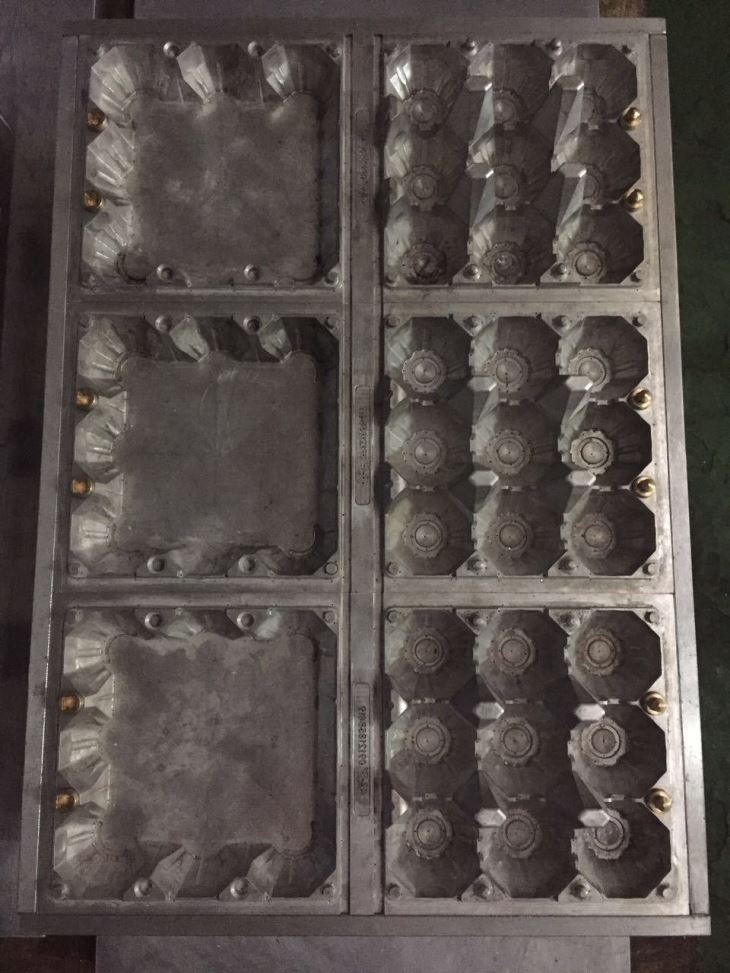

Egg Tray Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction
Egg tray making machine is forming, cutting and stacking in one line. It can make 6/110/12/20/30 eggs tray for customer's requirement. It is the combination for vacumm forming and positive forming which makes the products high quality. Suitable material is PP/PS/PET/PVC/HIPS/Corn Starch and ect.
Egg Tray Making Machine of Features:
- Efficient production: The machine adopts an automatic control system, which can quickly and efficiently complete the molding, cutting and palletizing of plastic products. It has the functions of rapid heating, high pressure forming and precise cutting, which greatly improves the production efficiency.
- Flexible and diverse: This machine is equipped with multiple stations, which can be adapted to the production of different types and sizes of plastic products. By changing the mould, products of various shapes can be produced, such as plates, tableware, containers, etc. At the same time, it can also be customized according to the needs to meet the special needs of different customers.
- Highly automated: The machine has an automated operation and control system, which can realize an automated production line. It is equipped with automatic feeding, automatic forming, automatic cutting, automatic palletizing and other functions. The operation is simple and convenient, reducing manual intervention and reducing the cost of human resources.
- Energy saving and environmental protection: The machine adopts a high-efficiency heating system and energy-saving design, which can minimize energy consumption. At the same time, it also has precise temperature control and emission purification system, which reduces the pollution to the environment.
Egg Tray Making Machine of Parameters
| Model | TTF-820A | TTF-700A | TTF-520A |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-2mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Air pressure | 0.6-0.8mpa | ||
| Air consumption | 4.0m³/min | 3.4m³/min | 3.0m³/min |
| Water consumption | 0.7m³/h | ||
| Sheet width (Max.) | 850mm | 730mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | ||
| Rated power | 199Kw | 188Kw | 120Kw |
| Heating power | 140Kw | 118Kw | 75Kw |
| Procedure | Forming-cutting-stacking | ||
| Dimension | L11800*W4300*H2800mm | L11500*W4500*H2800mm | L8200*W4650*H2670mm |
| Weight | About 16.5T | About 19.0T | About 9.0T |
Machine detail
Samples:
