Yogurt Cup Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

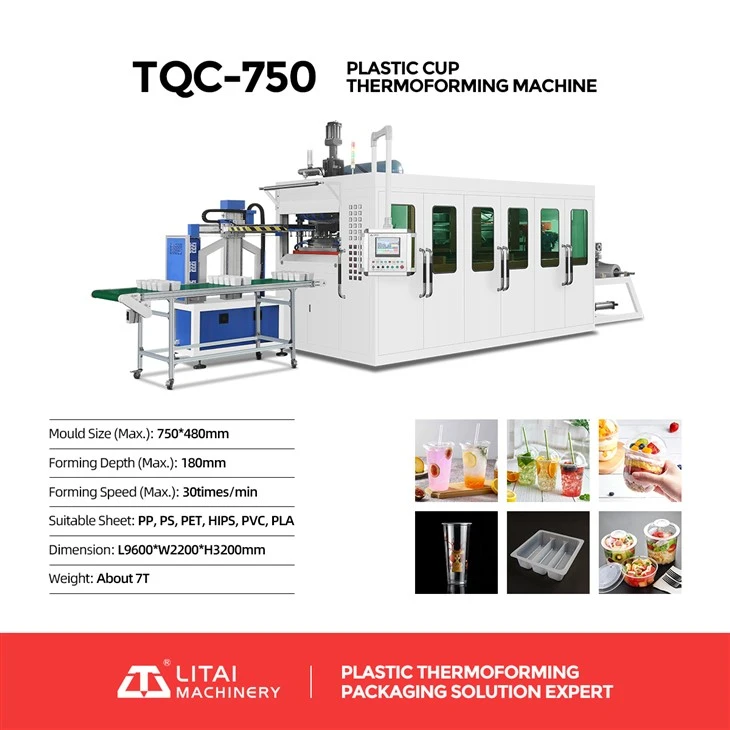

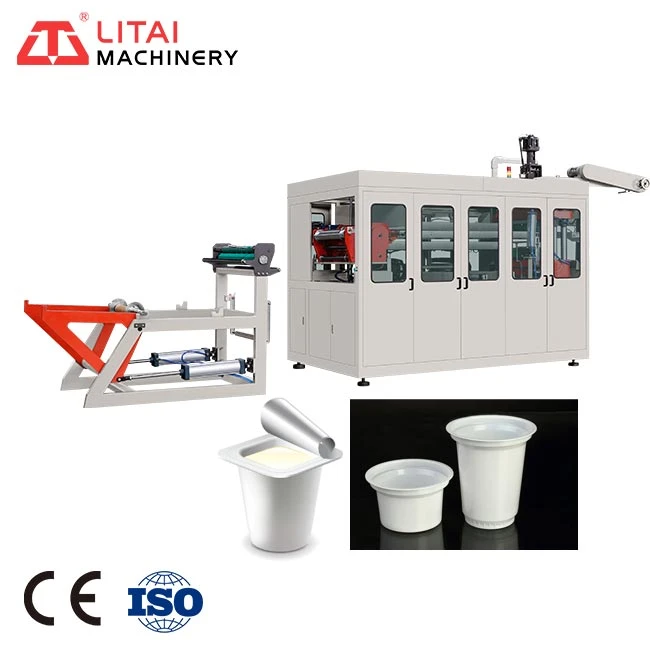

The TQC-750S is a fully automatic Plastic Cup Thermoforming Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.

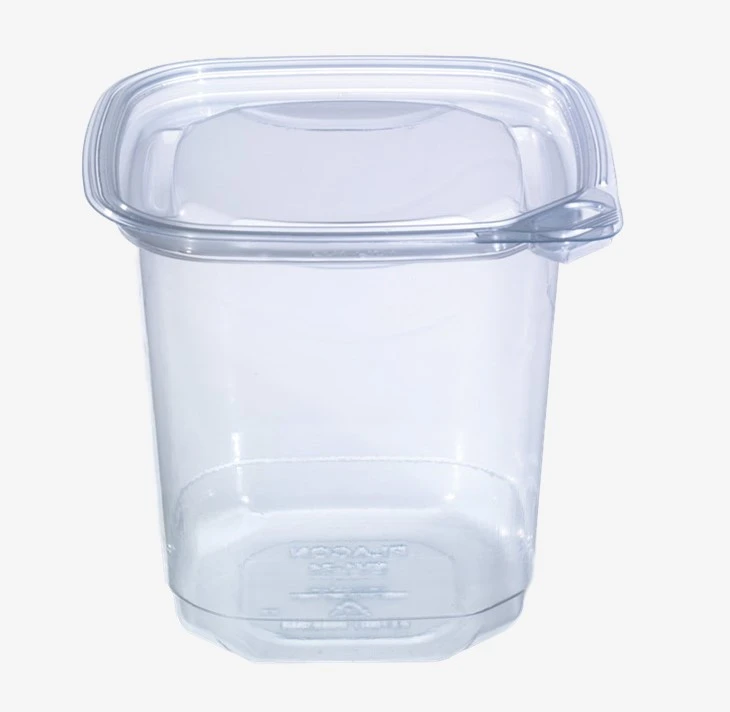

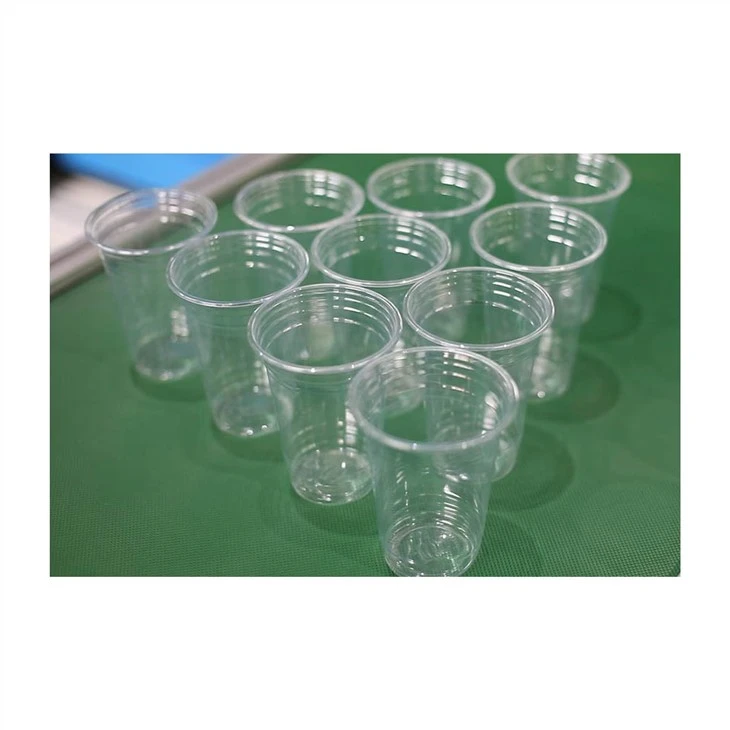

It is widly used for thermoforming packaging container, such as PP/PET cups, boxes, bowls, all thin wall thickness containers. Also milk cups, jelly cups, snow cake cups, disposable drinking water cup, instant noodles bowl, snack box, food box etc.
Yogurt Cup Machine of Parameter:
| Model | TQC-750S | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 750*480mm | 650*300mm |
| Max. Forming Depth | 180mm | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | ||
| Sheet Thickness | 0.3-1.8mm | ||
| Suitable Sheet Width | 770mm | 660mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Air Pressure | 0.6-0.8mpa | ||
| Air Consumption | 3.0m³/min | 2.0m³/min | |
| Water Consumption | 0.7m³/h | 0.5m³/h | |
| Rated Power | 207Kw | 173Kw | 98Kw |
| Heating Power | 180Kw | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | ||
| Dimension | L7900*W2300*H3400mm | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8.2T | About 8T | About 6T |
MACHINE DETAILS
FAQ
Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
