Cup Production Machinery
Model: TQC-750S
Mould Size (Max.): 750 x 480mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770mm
Total Power: 215KW
Heating power: 180KW
Dimension: L7900 x W2300 x H3450mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
TQC-750s servo cup production machinery is suitable for thermoforming of PP, PS, PET, PVC and other plastic sheets. Professional in producing all kinds of cup shape products, such as disposable plastic bowls, plastic plates, plastic water cups, disposable coffee cups, milk tea cups, plastic cup, plastic lids, plastic jelly cups, etc.

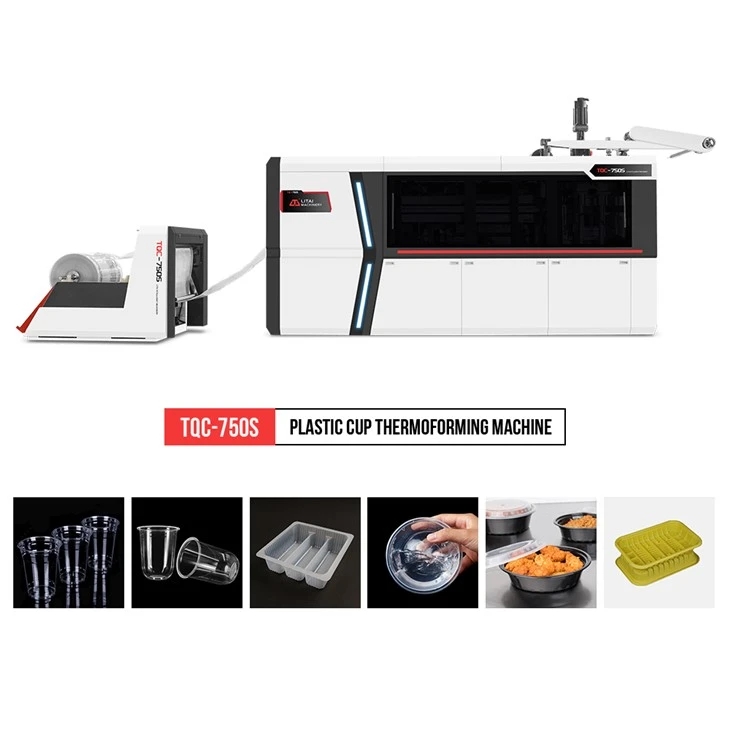

The TQC-750S is a fully automatic Plastic Cup Thermoforming Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.
Features of Cup Production Machinery
- Touch screen and programmable PLC control
- Precise index accuracy utilizing Servo drive system, minimizing plastic scrap
- Retractable, independently operated upper and lower ovens
- Module temperature control ensures precise temperature accuracy and easy operation
- Accessing to all digitalized functions by pressing touch screen
- Highly automatic stacking and counting system
- Automatic central lubrication
- Highly stressed parts are of very robust design, with lower table and frames made of casting.
- Little maintenance effort required and long intervals between maintenances
- Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility.
Cup Production Machinery-----specification
| Model | TQC-750S |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 215Kw |
| Heating Power | 180Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7900*W2300*H3400mm |
| Weight | About 8.2T |

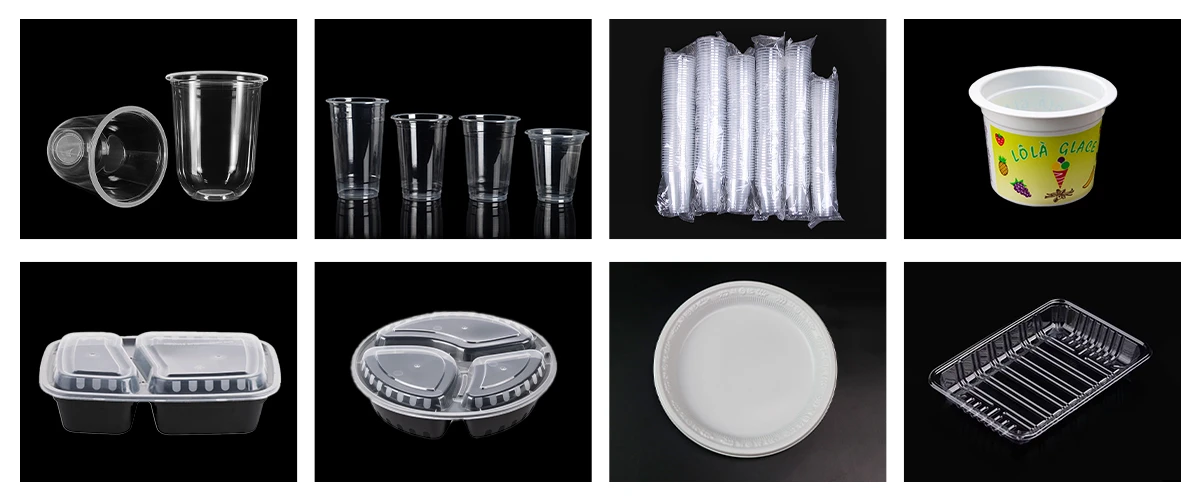

Cup Production Machinery-----Samples
FAQ
1. Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
2. What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
3. How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
