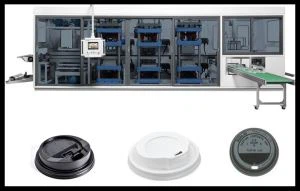

Full-automatic Plastic Disposable Food Tray Thermoforming Machine

Full-automatic Plastic Disposable Food Tray Thermoforming Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
It's a new type one that use full servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It is suitable for PP,PS,OPS,PVC,PETand PLA material, etc.All kinds of covers.
Thermoforming Machine are mainly produce upscale plastic containers like bowls,square boxes,lids,trays,etc.

Parameters of Full-automatic Plastic Disposable Food Tray Thermoforming Machine:

Finished Samples:

A plastic thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.

Features of Full-automatic Plastic Disposable Food Tray Thermoforming Machine:

1. The combination of Positive and Negative Pressure, make the product's texture is better than the Negative pressure forming products, product weight maintain stability.
2. The finished product is more precise and stable in relative dimensions.
3. Forming, cutting, piling and transforming could be finished synchronously, only need one people to do the packaging. Product is safe and sanitary, and no second pollution.
4. Cutting, piling and feeding all controlled by Servo, accurate and no error.
5. Adopt PLC and Touch Screen Control, Convenient in operation.
6. The function of Spraying, Vacuuming, demoulding, stretching guarantee the quality of products.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:520*430mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle



Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.
