Full Automatic Plastic Disposable Cup Lid Thermoforming Machine

It's a Full Automatic Plastic Disposable Cup Lid Thermoforming Machine one that use full servo working of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It is suitable for PP,PS,OPS,PVC,PETand PLA material, etc.All kinds of covers.

Thermoforming-Punching-Cutting-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 40 cycles per minutes.

Full Automatic Plastic Disposable Cup Lid Thermoforming Machine Technical Parameters:

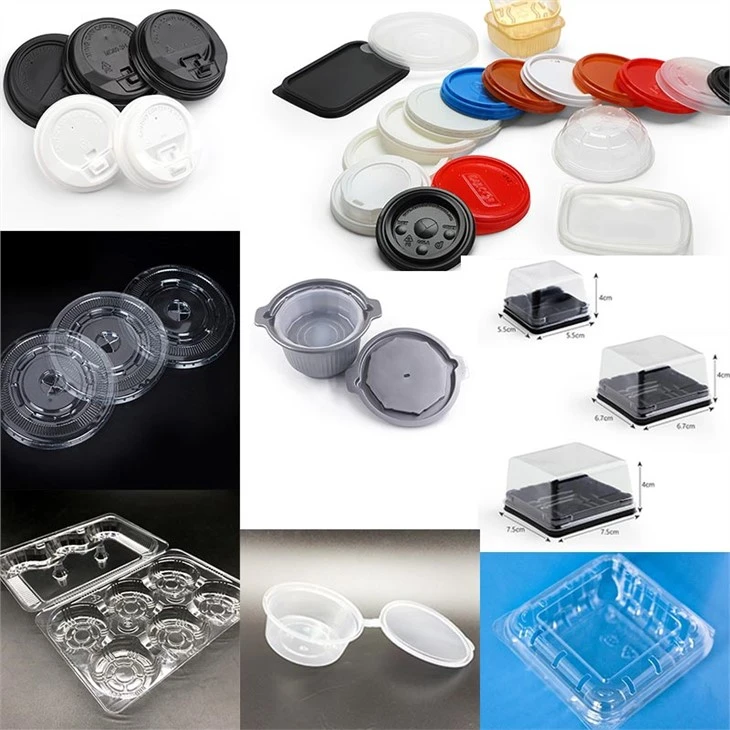

Full Automatic Plastic Disposable Cup Lid Thermoforming Machine of Application

Thermoforming machines for milk tea cups are widely used in the food packaging industry and are suitable for places that require disposable cups, such as milk tea shops, coffee shops, cold drink shops, etc. At the same time, other catering containers can also be produced, such as yogurt cups, pudding boxes, etc.

Production Processing:

Taizhang provide complete plastic cup making production line solution from plastic sheet extrusion – plastic cup thermoforming – stacking – plastic cup counting & packaging.



Structure & Design

Structure & Design

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Real-time temperature, pressure, and cycle status.
Emergency Stop & Alarms – Quick response to hazards.
Multi-Language Support – For global operators.

Forming Station

Max mould size:520*430mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
