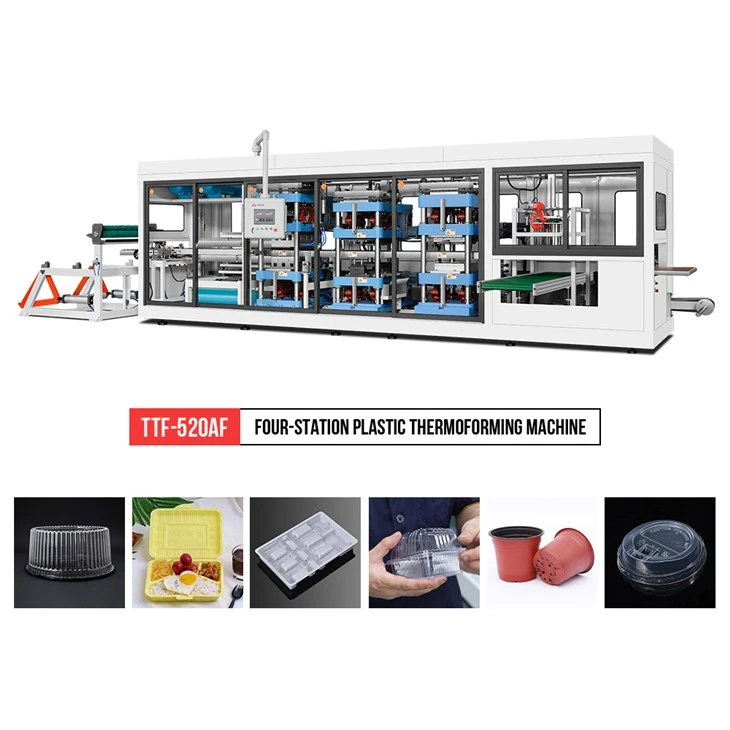

Plastic Fruit Packaging Box Making Machine

TTF series Plastic Fruit Packaging Box Making Machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids.

This plastic fruit packaging box making machine is developed by combining the domestic and foreign equipment and advantages, it can produce PS,PVC,PE,PP,PET,HIPS etc all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.

Parameter of Plastic Fruit Packaging Box Making Machine:

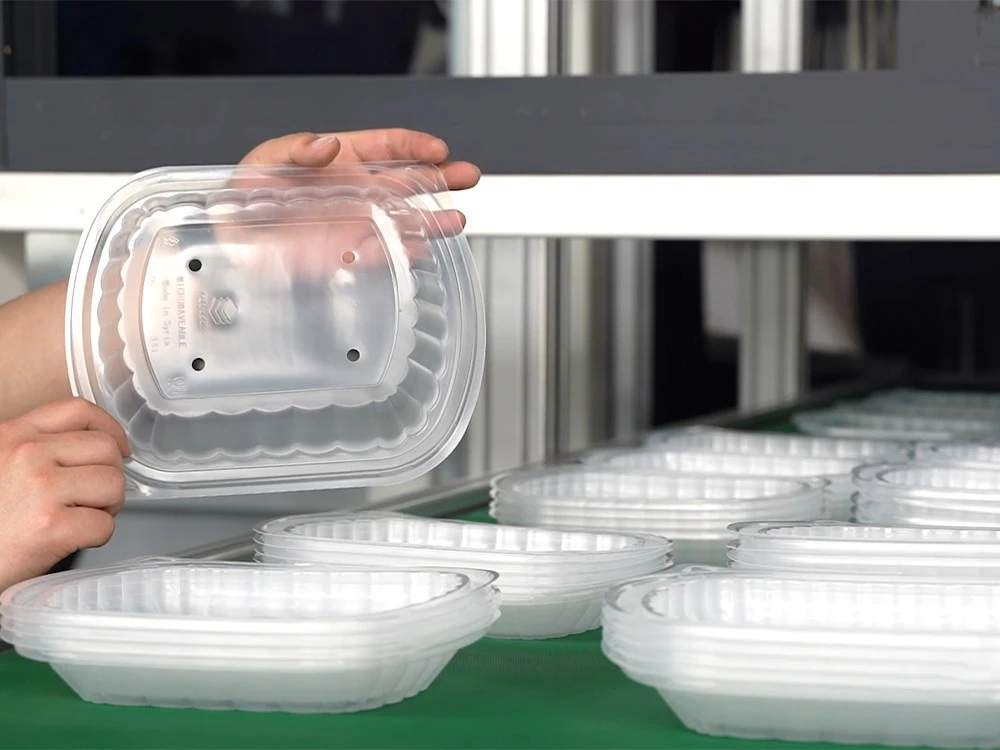

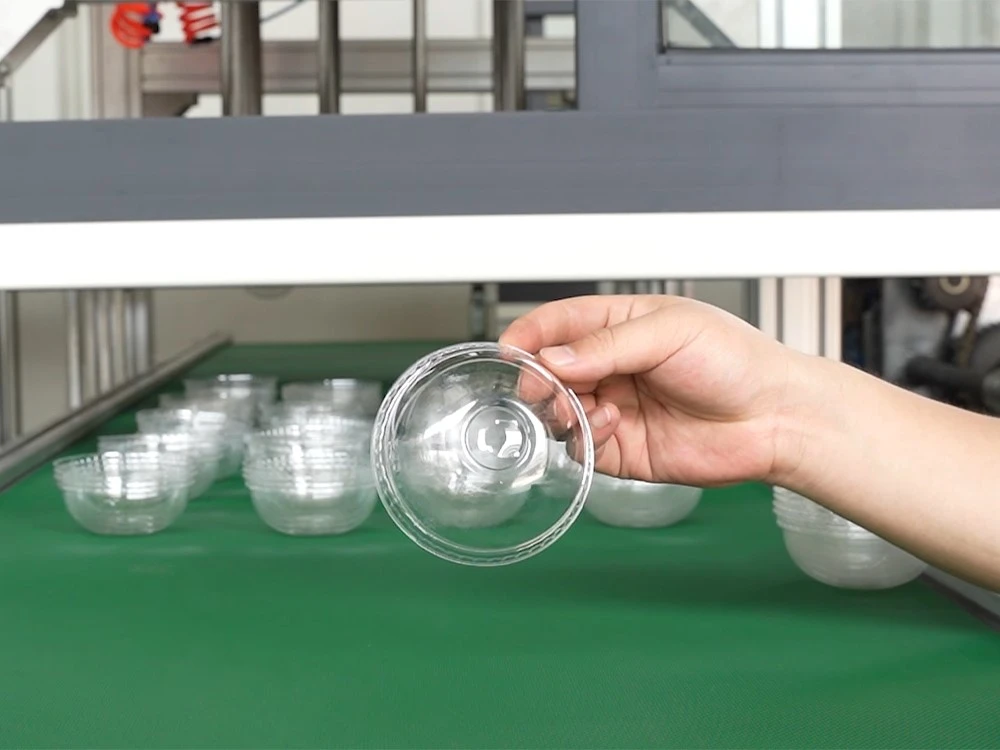

Finished Product Display

A Plastic Fruit Packaging Box Making Machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.

Plastic Cup Forming Process

As shown in the figure below, the production process of plastic cups roughly includes sheet extrusion, heating, forming and trimming, stacking, forming, etc. A plastic cup making machine can complete the process from heating to forming the sheet. Sheet extruders process plastic pellets into sheet rolls.

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.
2.  It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).
3. Easy-to-operate human-machine interface, and has the function of remote connection.
4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.
5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.
6. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.
7. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.
8. The unique vertical stacking concept ensures continuous stacking of products.
9. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.
10. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.

Shipping & Packing:

We provide 13 months limited warranty for all machines from the date of shipping from our factory:

1. Our warranty covers only those defects which arise as a result of normal use of the product, and the followings not apply to any:

♦ Improper or inadequate maintenance

♦ Misusage and mishandling

♦ Damaged by a wrong voltage use

♦ Physical damage(for example, dropping the parts on the floor or into water, broken case, etc)

2. What about when one year warranty over time?

We still offer the repair service to you when the warranty time is over, even we can offer you the repair service in the whole life of machine.

3. How to support you when you purchase our plastic fruit packaging box making machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

♦ User Manual in English

♦ Operation Video

♦ Support on-line

♦ You can send your technician to our factory to attend the skill training.
