Plastic Sushi Box With Clear Lid Thermoforming Machine

Plastic Sushi Box With Clear Lid Thermoforming Machine


Model: TTF-520A
Station:Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness:0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction

Plastic sushi box with clear lid thermoforming machine high-efficiency plastic thermoforming machine, using the latest international plastic sheet forming process technology, is set machine, electricity, gas integration design, using microcomputer and programmable control PLC control system.
Plastic sushi box with clear lid thermoforming machine is apply to forming of HIPS, PS, PP, PVC, PET, ABS ,etc . It can process the products includes high transparency,high stretch,circular type,square type,irregular type ,turnup type.Widely used in producing all kinds of boxes,plates,trays,bowls ,lids ,industry package,food package and other type of package in plastic area.

Parameter of Plastic Sushi Box With Clear Lid Thermoforming Machine:

Model TTF-520A
Station Three station
Mould Size (Max.) 520*400mm
Forming Depth (Max.) 110mm
Sheet thickness 0.2-2mm
Forming Speed (Max.) 40times/min
Air pressure 0.6-0.8mpa
Air consumption 3.0 m³/min
Water consumption 0.7m³/h
Sheet width (Max.) 550mm
Suitable Sheet PP, PS, HIPS, PET, PVC, PLA etc.
Power supply AC 380V, 50Hz, Three-phase, Four-wire
Rated power 120Kw
Heating power 75Kw
Procedure Forming-cutting-stacking
Dimension L9300*W4200*H2800mm
Weight About 9.0T

Application of Plastic Sushi Box With Clear Lid Thermoforming Machine:

Plastic sushi box with clear lid thermoforming machine is used to producing different kinds of plastic egg trays, seeding trays, blister clamshell, lunch box, plastic salad box and etc. The machine is completely driven by servo motor.

product-1200-500



Machine detail

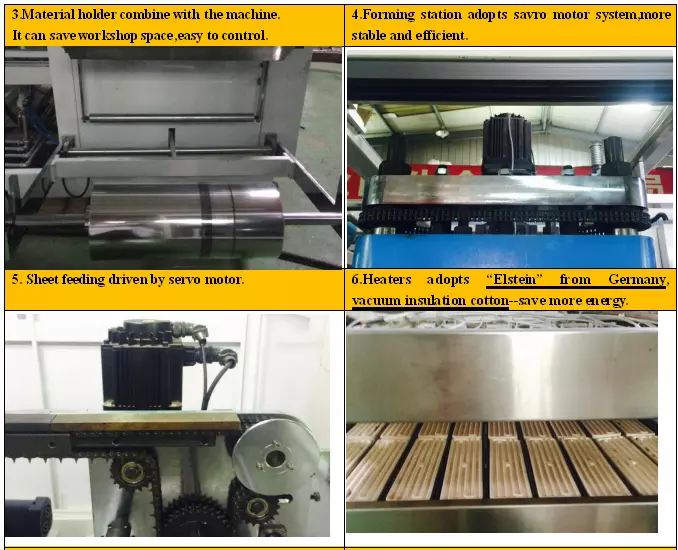

High quality plastic thermoforming machine with stacking function

FAQ:

Q: What's the raw material of new style PET fruit box making machine?
A: Our machine can make many kinds of plastic material like PS,PVC,PE,PP,PET,HIPS etc.
Q :What type of product can be produced by this machine?
A:By changing relevant molds, our machine can be used to produce fruit boxes, fruit trays, lids, flower pots, plastic plates and etc.
Q :What we should do get a better quotation?
A :When your sent your inquiry, please tell us product dimension and production capacity you want. Very thanks!
Q:Will you send engineers to design our plant and install the equipment?
A:Yes, Our factory will arrange engineer to supply the professional drawing and install and train the
worker about adjusting the equipemnt, disposing of the trouble maybe happen and maintenance of the machine, after training, the workers will get work license we distribute.
