Disposable Plastic Bowl Thermoforming Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

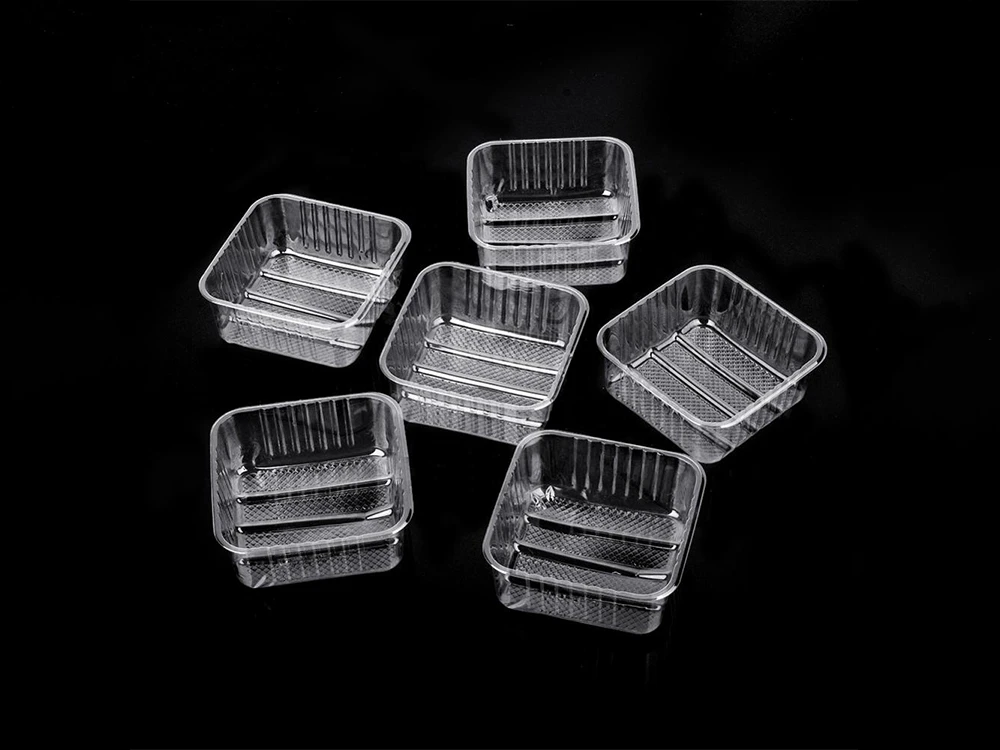

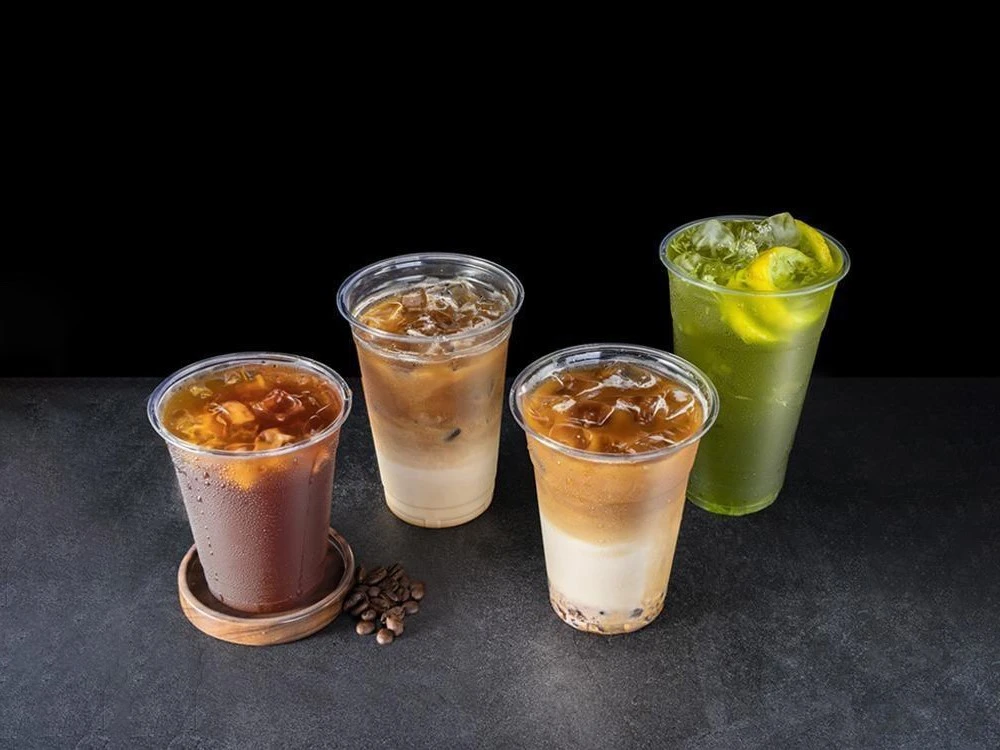

The disposable plastic bowl thermoforming machine is a professional equipment designed for modern and efficient production needs.It is ideal for manufacturing disposable tableware and plastic cups such as cold drink cups, yogurt cups, jelly cups, ice cream cups, snack boxes, plastic bowls, and milk tea lids.
The TQC-750 is a disposable plastic bowl thermoforming machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.
Parameters of Disposable Plastic Bowl Thermoforming Machine
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Core technology advantages
1. High-strength materials and precision processing
Key components are made of high-strength alloy and processed with precision CNC, ensuring longer mold life and higher dimensional accuracy during high-speed molding. Ultrasonic testing guarantees that all mold parameters stay within tolerance.
2. Vacuum-assisted molding technology
Advanced vacuum-assisted molding heats the plastic sheet to an optimal state, then uses vacuum suction to tightly conform the sheet to the mold surface, resulting in more accurate molding.
3. Energy-saving & eco-friendly: material recycling system
The equipment features an automatic waste recycling system. Trim waste and scrap sheets are conveyed to a recycling area for reprocessing, reducing material waste. Additionally, the system supports eco-friendly materials such as PLA and other degradable options.
Disposable Plastic Bowl Thermoforming Machine of Application

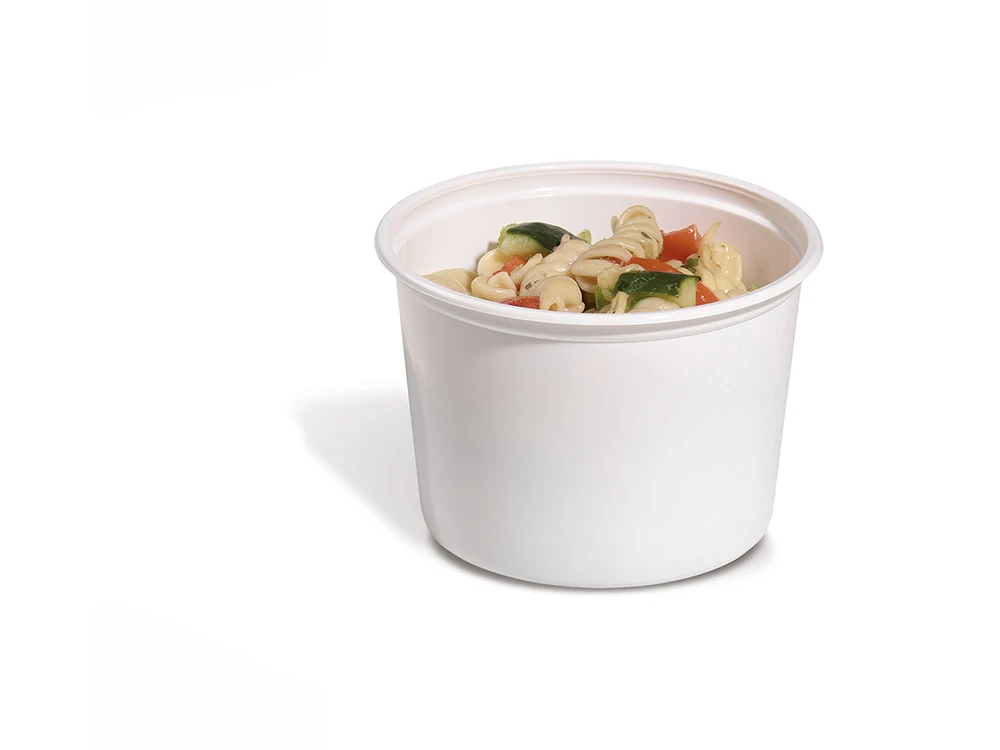

Disposable plastic bowl thermoforming machine is suitable for a variety of food packaging fields, especially in fast food chains, takeaway delivery, food processing and other industries. It can quickly produce plastic bowls, food containers, etc. in large quantities to ensure that each product meets hygiene and environmental standards.
Disposable Plastic Bowl Thermoforming Machine innovation highlights
Intelligent temperature control system
Equipped with an advanced PID intelligent temperature control system, this equipment precisely adjusts the temperature in each molding area, ensuring even heating and avoiding overheating or overcooling issues common in traditional thermoforming, thus greatly improving product quality stability and consistency.
Efficient mold conversion system
To meet diverse market needs, the equipment supports rapid mold replacement. With intelligent mold recognition and adaptive parameter adjustment, it can quickly switch between different bowl specifications, reducing downtime and improving production flexibility and response speed.
Ultra-high production efficiency
Thanks to an efficient mechanical structure and optimized transmission system, the production speed far exceeds the industry average. Advanced servo motor drive technology ensures smooth operation, reduces mechanical wear, and extends equipment service life.
Energy-saving heating design
The unique multi-layer energy-saving heating plate combined with infrared heating technology significantly reduces heat loss and energy consumption, lowering energy costs and environmental impact while meeting green production requirements.
Fully automated assembly line operation
This machine integrates feeding, heating, forming, stacking, and waste recycling into one automated process. With PLC touch screen control, operators simply set parameters at startup, and production runs efficiently without supervision. Intelligent fault detection and alarms ensure automatic shutdown under abnormal conditions to protect equipment and product quality.
Humanized design and operation interface
The multi-language interface is suitable for global customers. The full-screen touch system is intuitive and easy to learn, allowing users to set temperature, speed, pressure, and other parameters quickly. Built-in production data monitoring and storage facilitate process adjustments and product optimization
Summary: This disposable plastic bowl thermoforming machine not only has significant advantages in production speed and product quality, but also helps enterprises to significantly reduce production costs through its intelligent and energy-saving technology, and ensures sustainable development under the future environmental protection trend. It is an ideal solution for the high-demand market, which not only improves the competitiveness of enterprises, but also meets the growing and diversified needs of the food packaging industry.
