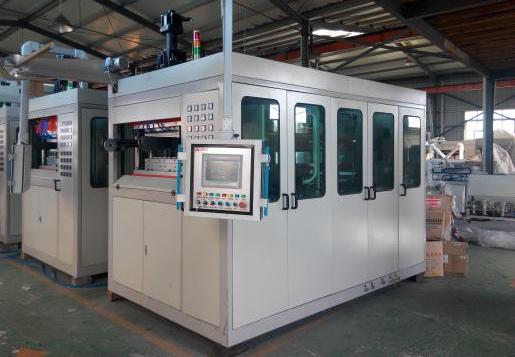

Plastic Bowl Making Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
It is mainly used for crimping sheets such as PVC, PS, PP, PET, biodegradable PP, expanded PP, etc., and various thin open containers are produced by vacuum forming process, such as various disposable lunch boxes, fast food dishes, instant noodle bowls, western food boxes, foods. Packaging linings, ice cream cups, candy boxes, cake components, hardware, etc., as well as breeding boards for crops and vegetables.
Plastic Bowl Making Machine Technical Parameter:
| Model | TQC-750S | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 750*480mm | 650*300mm |
| Max. Forming Depth | 180mm | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | ||
| Sheet Thickness | 0.3-1.8mm | ||
| Suitable Sheet Width | 770mm | 660mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Air Pressure | 0.6-0.8mpa | ||
| Air Consumption | 3.0m³/min | 2.0m³/min | |
| Water Consumption | 0.7m³/h | 0.5m³/h | |
| Rated Power | 207Kw | 173Kw | 98Kw |
| Heating Power | 180Kw | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | ||
| Dimension | L7900*W2300*H3400mm | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8.2T | About 8T | About 6T |
Features
The frame is made of square steel, which is more stable and more practical.
Easy to operate, reliable performance, low noise and high quality.
Samples
Plastic Bowl Making Machine Application

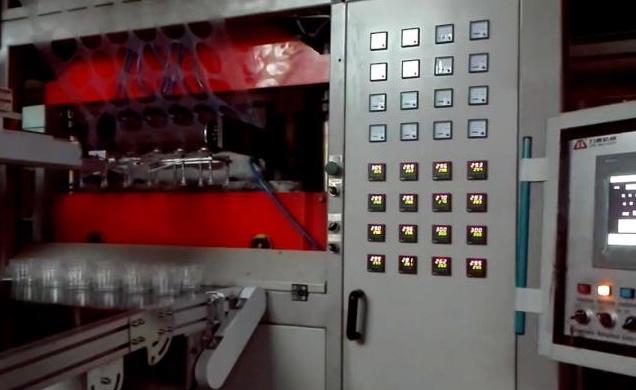

1.Plastic bowl making machine is controlled by PLC with touch screen.
2.The machine adopt hydraulic system to drive the movement of the mould
3.Convenient operation, low noise and high efficiency.

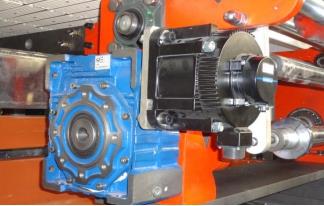

4. The stretching of plug inside of upper mould is controlled by Servo motor.

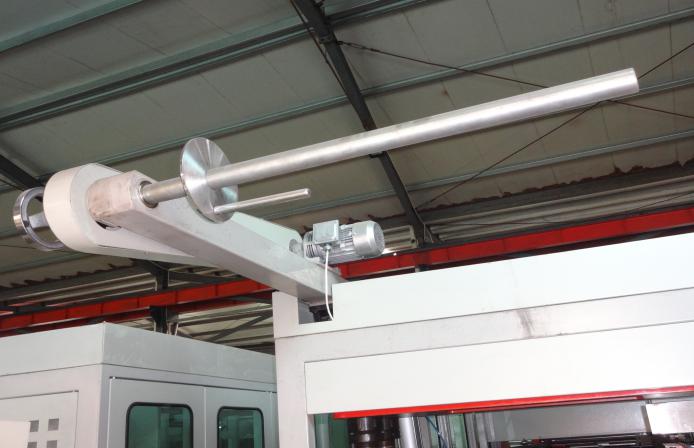

5.Waste material rewinder: the waste material can be rewinded and use crusher to be re-used.
FAQ
1.What's your main products?
We special in sheet extruder, full automatic plastic thermoforming machine, vacuum forming machine, cup making machine for over 18 years.
2.How to guarantee the product quality?
We have professional QC department and from raw material to production and finished products, QC will check for every step to make sure the best quality of the goods.
3.How can customer deal with waste material?
We have crusher online that can make the waste material to ganule and re-use them through sheet extruder.
