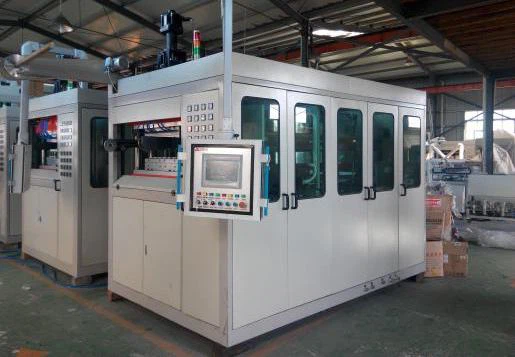

PET PP Disposable Cup Plastic Bowl Thermoforming Machine
Model: TQC-750S
Mould Size (Max.): 750 x 480mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770mm
Total Power: 215KW
Heating power: 180KW
Dimension: L7900 x W2300 x H3450mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
The TQC-750S is a fully automatic Plastic Cup Thermoforming Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.
The TQC-750S is engineered for mass production of:
Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?

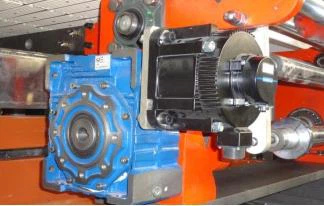

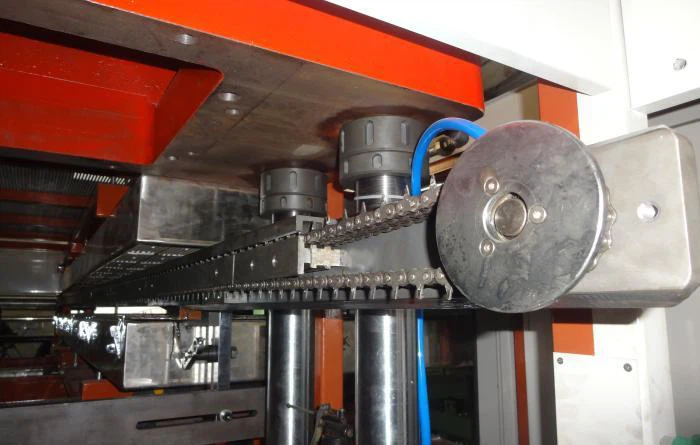

Machine detail

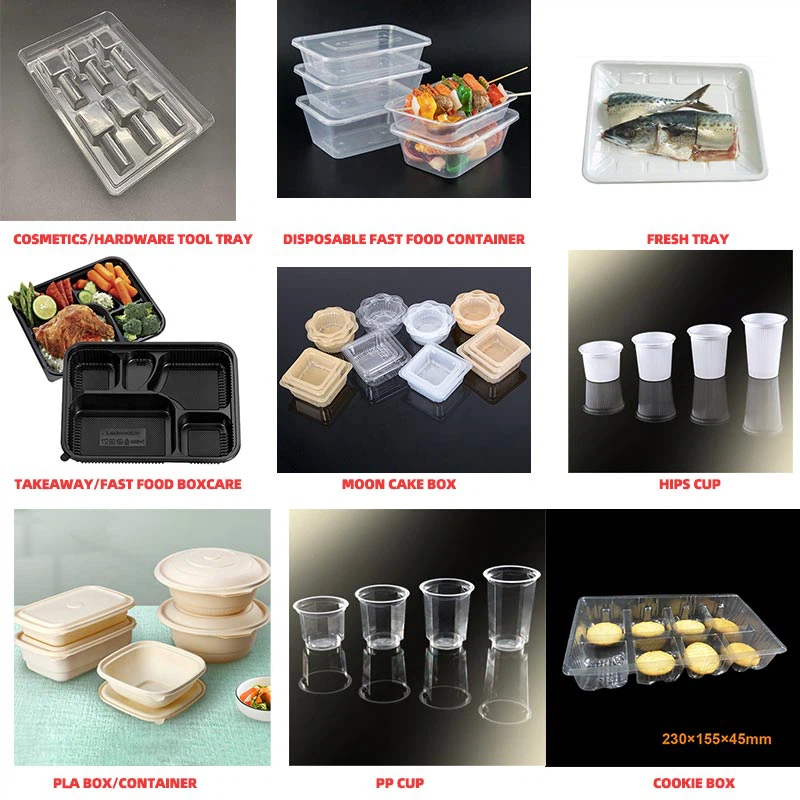

Samples
PET PP Disposable Cup Plastic Bowl Thermoforming Machine Paramenters
| Model | TQC-750S | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 750*480mm | 650*300mm |
| Max. Forming Depth | 180mm | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | ||
| Sheet Thickness | 0.3-1.8mm | ||
| Suitable Sheet Width | 770mm | 660mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Air Pressure | 0.6-0.8mpa | ||
| Air Consumption | 3.0m³/min | 2.0m³/min | |
| Water Consumption | 0.7m³/h | 0.5m³/h | |
| Rated Power | 207Kw | 173Kw | 98Kw |
| Heating Power | 180Kw | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | ||
| Dimension | L7900*W2300*H3400mm | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8.2T | About 8T | About 6T |
1.Bowl maker machine PLC and touch screen are used from Simens.
2. It is full automatic and save labor cost.
3. Automatic forming,cutting and blowing in one step.
4. Max forming depth is 125mm.
5. Max forming area is 520x400mm.
FAQ
1.What's the main market of your product?
We export to 79 countries such as USA, Russia, Kuwait, Saudi Arabia, Peru, Brasil, Mexico and etc.
2. What certification do you have?
We got CE and ISO9001:2000 certification.
