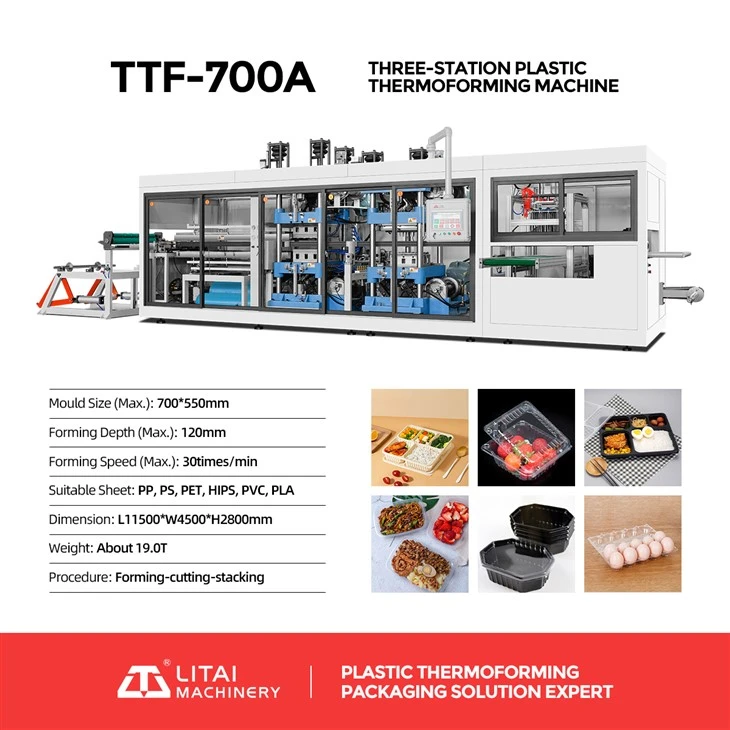

Snacks Food Serving Tray Thermoforming Machine
Model: TTF-700A
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
TTF series Snacks Food Serving Tray Thermoforming Machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing disposable plastic trays, containers, boxes, lids, egg trays, food containers, food trays, fruit plates, dishes, lids, covers, boxes, snack dishes.
Working Principle of a Snacks Food Serving Tray Thermoforming Machine
TTF-700AF is a fully automatic plastic theremofroming machine which integrated sheet loading ,sheet convey, heating , forming ,cutting ,punching,stacking and rewinding.becuase of the fully automatic which brings high speed , more efficiency ,lower human resouce cost .
The working theory is a combination of pastive and negative pressure with assiting strenthing in mould by some nylon plugs .which makes it have more powerful ability of making products . so it brings wider application just like big deep and more complicated bottom.
Samples:
Snacks Food Serving Tray Thermoforming Machine Technical Parameters
| Model | TTF-700AF | TTF-700A |
| Mould Size (Max.) | 700*550 mm | 700*550 mm |
| Forming Depth (Max.) | 120mm | 120mm |
| Sheet thickness | 0.2-1.6mm | |
| Forming Speed (Max.) | 30times/min | |
| Air pressure | 0.6-0.8mpa | |
| Air consumption | 3.6m³/min | 3.4m³/min |
| Water consumption | 0.7m³/h | |
| Sheet width (Max.) | 730mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |
| Rated power | 211Kw | 188Kw |
| Heating power | 118Kw | 118Kw |
| Procedure | Forming-punching-cutting-stacking | |
| Dimension | L13000*W4500*H2800mm | L11500*W4500*H2800mm |
| Weight | About 25.0T | About 19.0T |
Features of Snacks Food Serving Tray Thermoforming Machine:
Snacks food serving tray thermoforming machine integrates forming,cutting and stacking (trimming) at the same time. It can save labor, improve efficience, lower labor intensity and reduce production cost.
It adopts PLC controller and touch screen to control the working program. Two workers are enough for whole production line.
FAQ:
Q.Are you manufacture or trading company?
A:We are a factory.We have been in making plastic thermoforming machine and plastic sheet extruder over 20years.
Q.How can I get the samples?
A: We have many samples in stock that was made by the machine customers bought from our company, we can take the picture for you to choose suitable samples.
Q.Can you give me discount?
A:Yes, of course. If you contact me, you'll get more.
Q:How about you ensure the quality of snacks food serving tray thermoforming machine?
A: Our factory have advanced testing equipment, before the every product leave the factory, we will test. We can send samples to you , you can test the quality , and if you accept the sample quality we can offer : the follow-up order's quality will be the same as the sample.
Q.What kind of payment terms you can accept?
A:We can accept T/T, L/C, other payment terms can be negotiated in advance.
Q: Could you send engineer go to our factory adjust and install machine ?
A: YES,we can send engineer go to your factory adjust and install machine .teach your worker how to operate machine
Q: How long is the warranty period?
A: One year warranty period.We have professional after-sales department providing best service and make action within 24hours.
