Disposable Strawberry Fruit Container Making Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Disposable strawberry fruit container making machine is used to producing strawberry box, lids, seeding trays, flower pot, egg trays, coffee cup lids and etc.
Disposable Strawberry Fruit Container Making Machine Features
1.The machine working process: sheet loading, heating, forming, punching, cutting, stacking, waste material rewinder, finished products. The machine is fully automatic driven by servo motor
2. The max forming area is 520x400mm
3. For punching station, there is a holder to put the waste material to keep the machine clean
4. all upper mould and lower mould are driven by servo motor

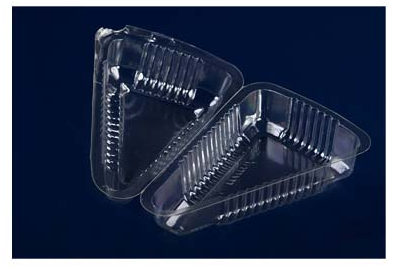

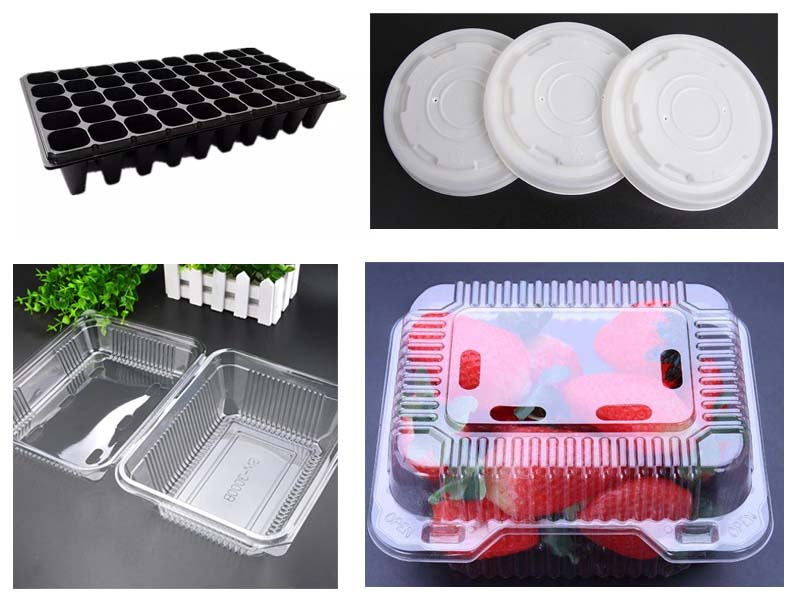

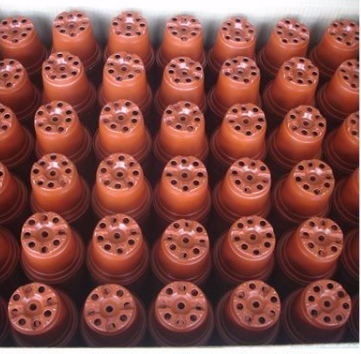

SAMPLES

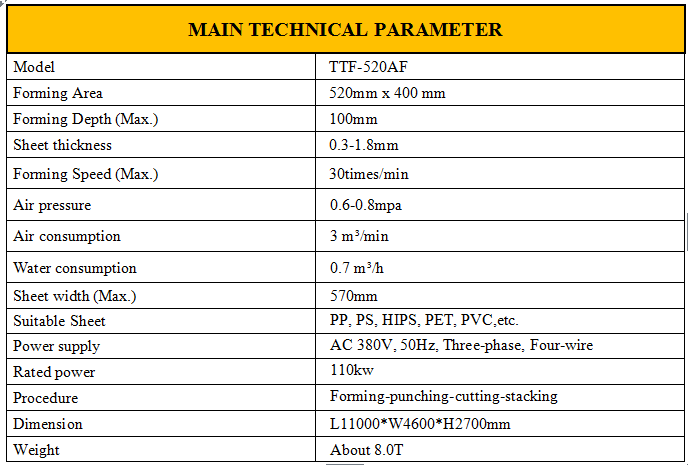

Disposable Strawberry Fruit Container Making Machine of Parameter:
| Model | TTF-520AF | TTF-520A |
| Station | Four station | Three station |
| Mould Size (Max.) | 520*400mm | |
| Forming Depth (Max.) | 110mm | |
| Sheet thickness | 0.2-1.6mm | |
| Forming Speed (Max.) | 30times/min | |
| Air pressure | 0.6-0.8mpa | |
| Air consumption | 3.0m³/min | |
| Water consumption | 0.7m³/h | |
| Sheet width (Max.) | 550mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |
| Rated power | 136Kw | 120Kw |
| Heating power | 75Kw | 75Kw |
| Procedure | Forming-punching-cutting-stacking | |
| Dimension | L10800*W4650*H2670mm | L8200*W4650*H2670mm |
| Weight | About 11.0T | About 9.0T |

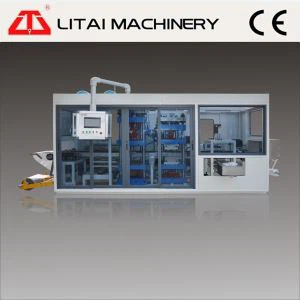

Machine detail
FAQ
1. What is the payment terms?
It is 30% deposit and 70% balance paid before shippment
2. How can you guarantee the machine quality?
We have special QC department from the raw material to the end machine, we will check every aspect to make the quality best. Customer can come to our factory to test the machine and mould before the shippment
