Beverage Cup Lid Thermoforming Machine

The beverage cup lid thermoforming machine is a specialized and highly automated equipment suitable for the manufacturing needs of various plastic cup lids. Through thermoforming technology, the equipment can quickly heat and shape plastic sheets to produce cup lids of different shapes and functions, such as cold drink cup lids, hot drink cup lids, straw hole lids, leak-proof lids, etc. It is suitable for food packaging, beverage industry, fast food chains and other scenarios, helping companies achieve efficient and environmentally friendly cup lid production.

Beverage Cup Lid Thermoforming Machine of Parameters

Beverage Cup Lid Thermoforming Machine of Application

Thermoforming machines for beverage cup lids are widely used in the following industries and scenarios:

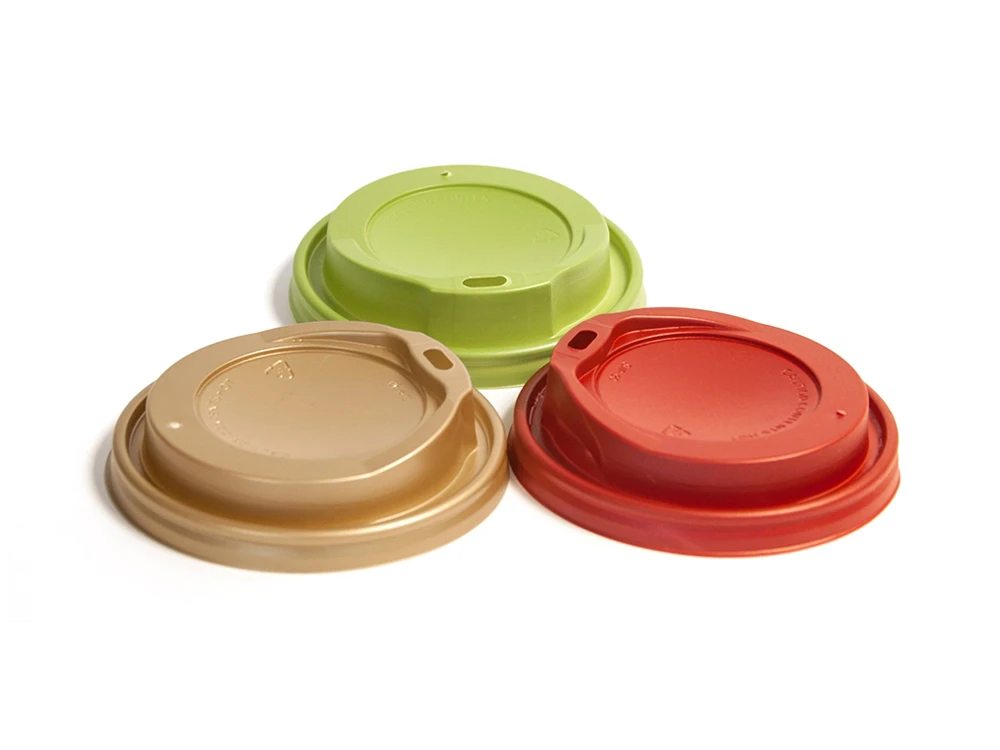

1. Food and beverage industry: production of coffee cup lids, milk tea cup lids, cold drink straw hole cup lids, etc.

2. Fast food chain companies: beverage cup lids for take-out food packaging.

3. Packaging manufacturing companies: provide customized cup lid solutions for pre-packaged beverages sold in supermarkets.

4. Environmentally friendly packaging companies: produce degradable cup lids to meet green packaging needs.

Beverage Cup Lid Thermoforming Machine for Features

1. High-speed operation: A single production cycle can be completed in just 3-5 seconds, and the multi-cavity design can form 6-12 cup lids at a time (depending on the size of the mold).
2. High consistency: The use of precision molds and advanced molding control technology ensures that the size and appearance of each cup lid are consistent.
3. PLC automatic control: The programmable logic controller (PLC) is used to manage the production process and accurately adjust the temperature, pressure and molding time.
4. Alarm function: Automatic alarm for abnormal situations, reduce downtime, and ensure production continuity.
5. Energy-saving heating system: Infrared heating technology heats up quickly while reducing power consumption.
6. Support for environmentally friendly materials: The equipment is compatible with environmentally friendly materials such as PLA and degradable plastics to help sustainable development.
7. Mold flexibility: supports quick mold replacement and adapts to different cup lid shapes (round, square, oval, etc.) and sizes (such as 75mm, 90mm, etc.).
8. Widely applicable materials: compatible with a variety of thermoplastic sheets such as PET, PP, PS, PLA, etc. to meet the needs of different products.

Configuration Details

Heating Device



Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen



Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station



Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station



Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station



Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling



Waste Rewinding System: The edge material is sent to the waste rewinding system for recycling by the conveying system. With a special clutch structure, when the material roll is too large, the power will automatically separate to prevent electric overload and extend the service life of the motor.

Core advantages of equipment

1. High cost performance: compared with traditional equipment, it has higher energy efficiency and greater production capacity per unit time.

2. Personalized customization: support customized molds according to customer needs to meet specific brand image or functional requirements.

3. Comprehensive after-sales guarantee: provide 1-year warranty, professional technical team support installation, commissioning and maintenance services to ensure long-term and efficient operation of the equipment.
