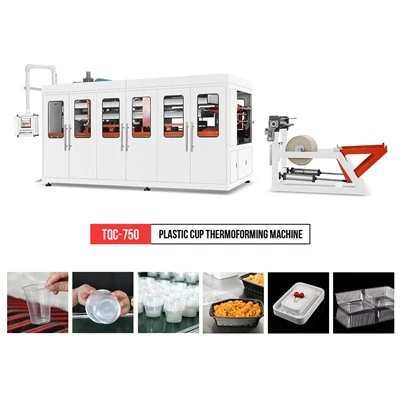

TQC-750 Automatic Plastic Cup Cover Forming Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Automatic plastic cup cover forming machine is mainly used for production, the production of disposable tableware, cold drink cups, yogurtcups, jelly cups, ice cream cups, fast food box, plastic bowls, tea cover. Medicine, light industry, textile, tourism, toys and otherplastic packaging products also can be processed.It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
Automatic Plastic Cup Cover Forming Machine for Technical Parameters:
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Features of Automatic Plastic Cup Cover Forming Machine:
1) Mould is fixed by four pillars. --more stable, precision, lower noise, high speed.
2) Touch screen and PLC use Siemens, Germany technology .
3) Sheet feeding use servo motor.
4) Mould streching use servo motor.
5) Automatical Mechanism movement lubricant automatically at certain times
Application fields
Food packaging industry: plastic tea cups, milk tea cups, ice cream cups, yogurt cups and other disposable food containers.
Beverage industry: various plastic cups used by beverage shops, milk tea shops, and cold drink brands.
