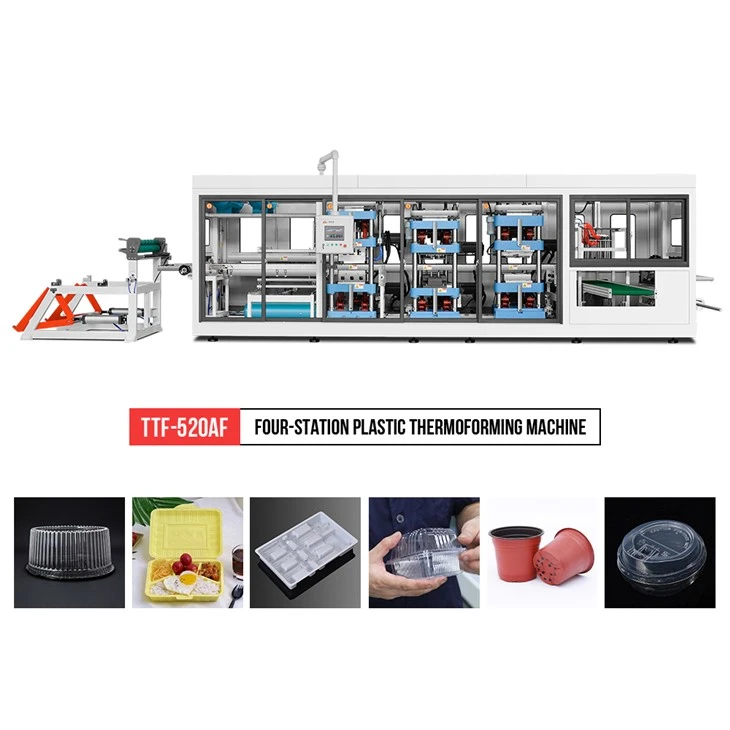

Cup Cover Forming Machine
Model: TTF-520AF
Station:Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness:0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction

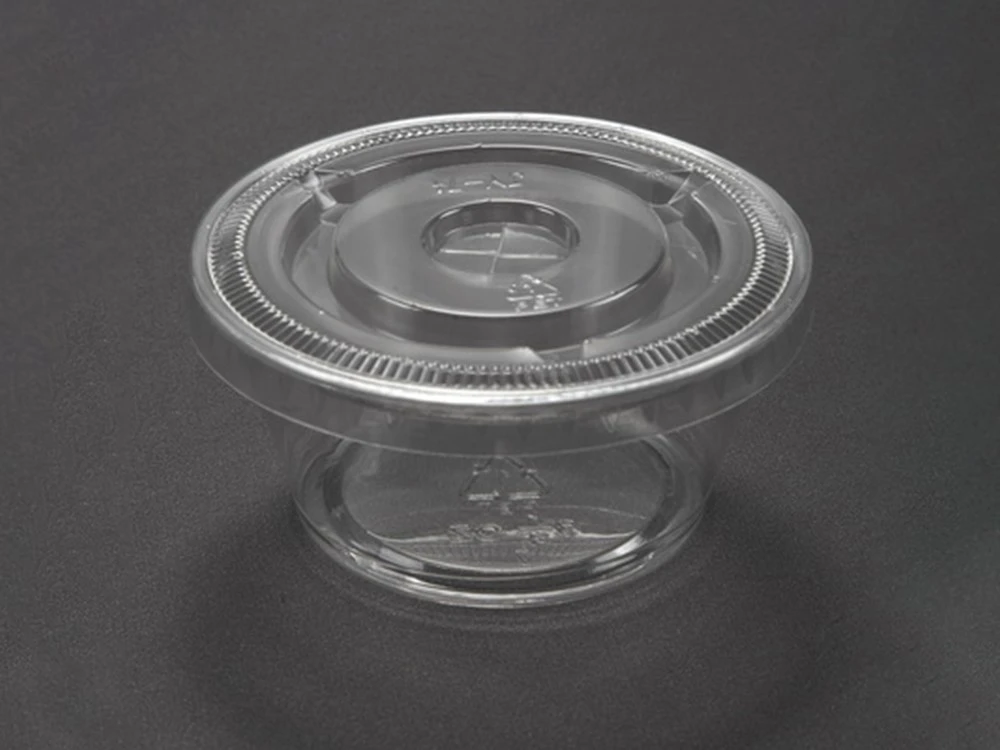

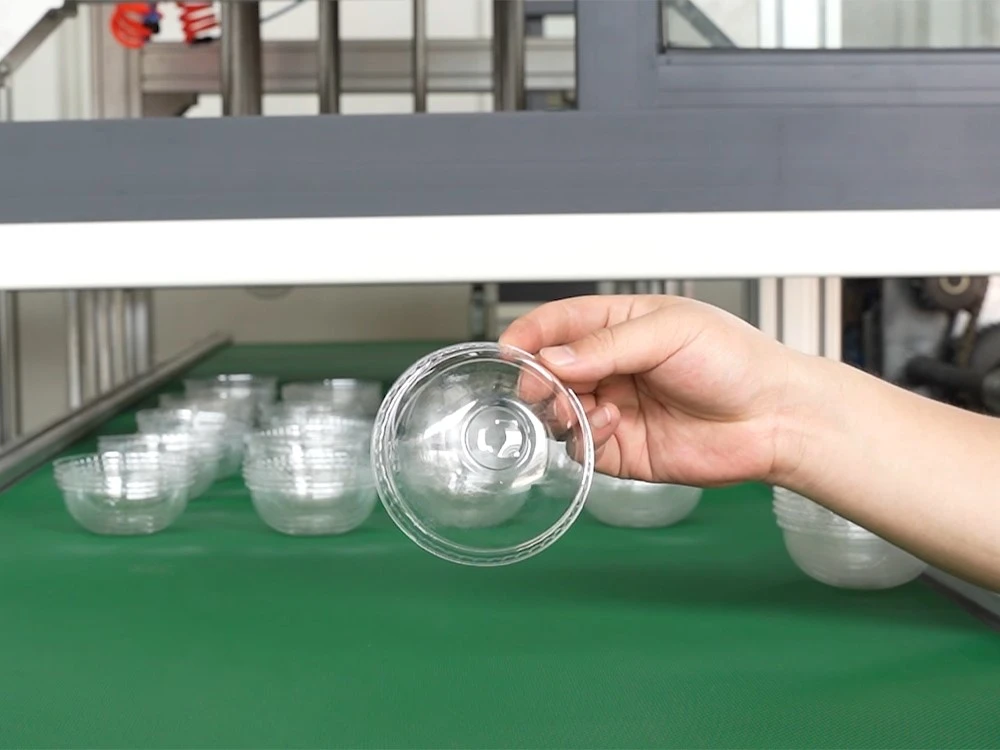

TTF series cup cover forming machine adopts servo motor for sheet feeding and streching, so this machine can get faster speed and bigger bearing, PLC and touch screen for operation it can improve the live of the equipment and reduce the man-hour for maintenence. This machine can not only suitable for producing plastic covers(round and square), but also cups, fruit containers, bowls, trays, fast food boxes and etc.

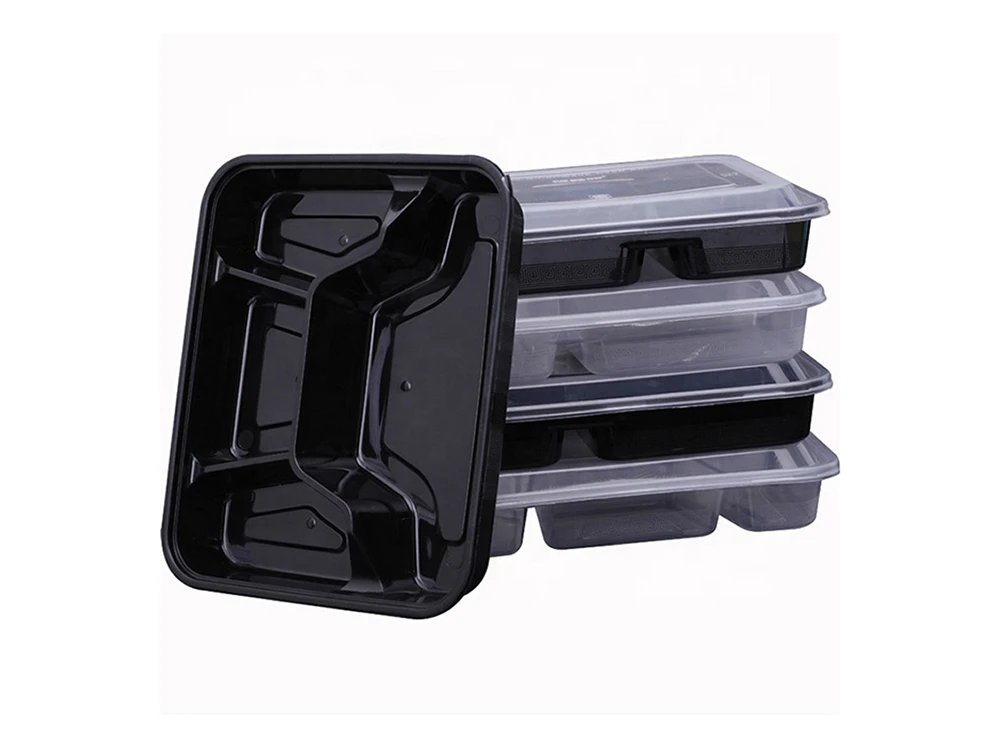

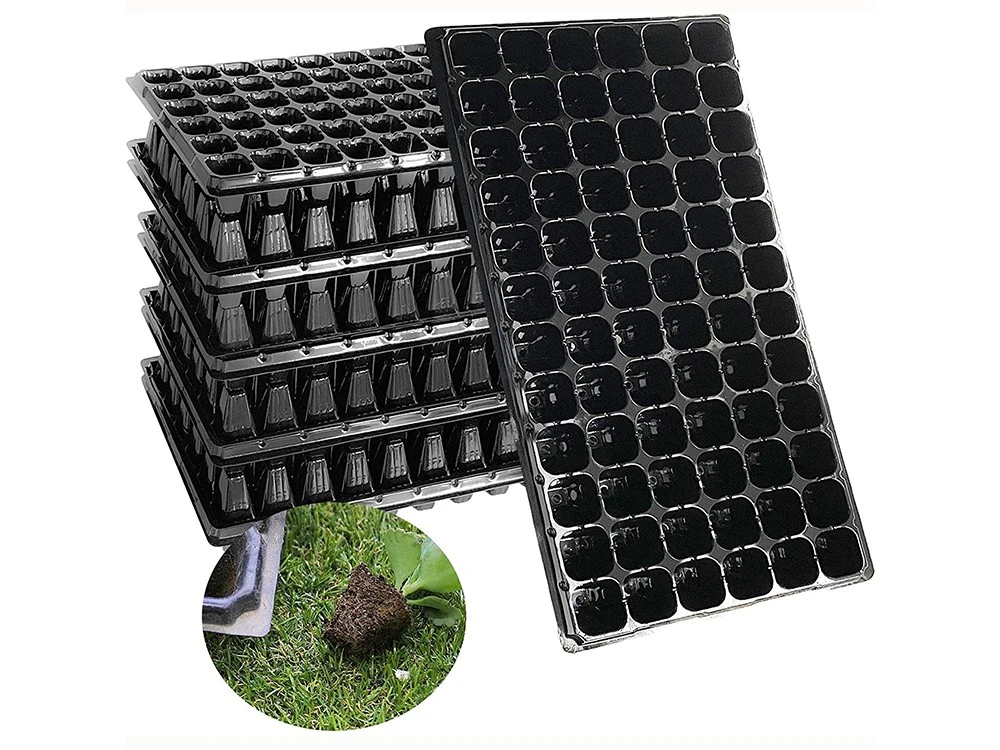

It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Packing & Shipping:The advantages of packing our cup cover forming machine in plywood case package,
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Features of Cup Cover Forming Machine:
- 1. Efficient production: The machine adopts an automatic control system, which can quickly and efficiently complete the molding, cutting and palletizing of plastic products. It has the functions of rapid heating, high pressure forming and precise cutting, which greatly improves the production efficiency.
- 2. Flexible and diverse: This machine is equipped with multiple stations, which can be adapted to the production of different types and sizes of plastic products. By changing the mould, products of various shapes can be produced, such as plates, tableware, containers, etc. At the same time, it can also be customized according to the needs to meet the special needs of different customers.
- 3. Highly automated: The machine has an automated operation and control system, which can realize an automated production line. It is equipped with automatic feeding, automatic forming, automatic cutting, automatic palletizing and other functions. The operation is simple and convenient, reducing manual intervention and reducing the cost of human resources.
- 4. Energy saving and environmental protection: The machine adopts a high-efficiency heating system and energy-saving design, which can minimize energy consumption. At the same time, it also has precise temperature control and emission purification system, which reduces the pollution to the environment.
Machine Parameter of Cup Cover Forming Machine:
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |
Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.
Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.
Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
