Egg Tray Making Line

Egg Tray Making Line uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Egg Tray Making Line of Parameter:

Application of Egg Tray Making Line:

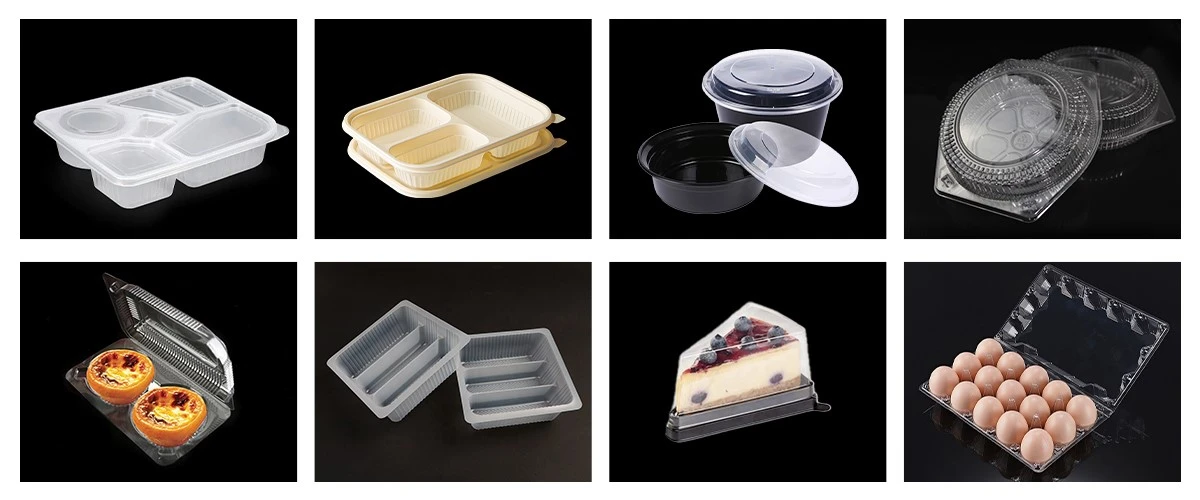

Egg tray making line is applying to forming PP/PS/HIPS/PET/PVC/corn starch material to disposable plastic products such as boxes, plates, bowls, lids, food package, cosmetics packing and etc. It enhance productivity with simple operation, good reliability, good functionality and high degree of automation.

FEATURES AND ADVANTAGES

1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.

2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).

3. Easy-to-operate human-machine interface, and has the function of remote connection.

4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.

5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.

6. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.

7. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.

8. The unique vertical stacking concept ensures continuous stacking of products.

9. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.

10. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.
