PET Fruit Box Thermoforming Machine
Model: TTF-700AF
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire

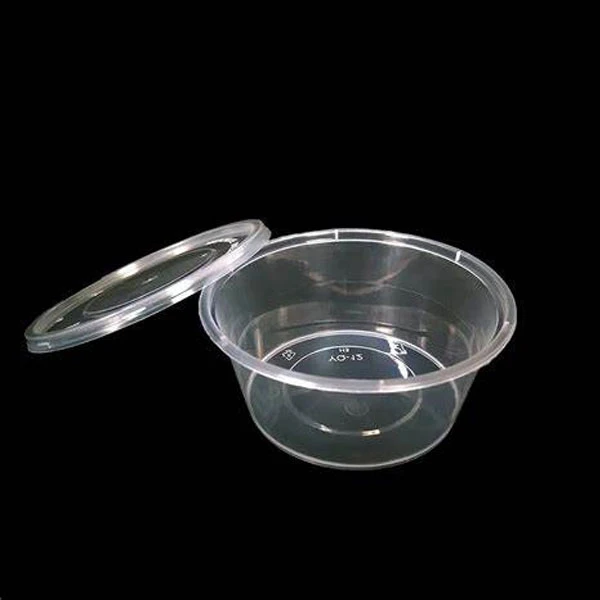

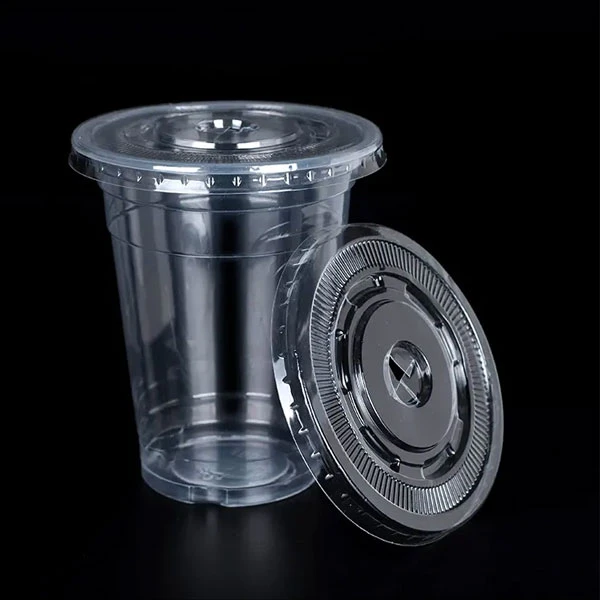

Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
The fruit box thermoforming machine is a highly efficient equipment designed for the manufacture of fruit packaging boxes. It uses advanced thermoforming technology and can quickly and mass-produce fruit boxes of various specifications. This equipment is widely used in the food packaging industry, especially in the packaging of fruits and vegetables, meeting the market demand for environmentally friendly, hygienic, durable and beautiful packaging boxes.
Scope of application:
The fruit box thermoforming machine is suitable for the production of various fruit and vegetable packaging boxes, such as strawberry boxes, apple boxes, grape boxes, etc. It is widely used in large farms, food processing plants, supermarket supply chains, logistics centers and other industries, making it an ideal equipment choice for fruit packaging.
Parameters of PET Fruit Box Thermoforming Machine:
|
Model |
TTF-700AF |
|
Forming Area |
700mm x 550 mm |
|
Forming Depth (Max.) |
120 mm |
|
Sheet thickness |
0.2-1.6 mm |
|
Forming Speed (Max.) |
30times/min |
|
Air pressure |
0.6-0.8mpa |
|
Air consumption |
3.6 m³/min |
|
Water consumption |
0.7 m³/h |
|
Sheet width (Max.) |
730mm |
|
Suitable Sheet |
PP, PS, HIPS, PET, PVC, PLA etc. |
|
Power supply |
AC 380V, 50Hz, Three-phase, Four-wire |
|
Used power |
105Kw |
|
Rated power |
211Kw |
|
Heating power |
118Kw |
|
Procedure |
Forming-punching-cutting-stacking |
|
Dimension |
L13000*W4500*H2800mm |
|
Weight |
About 25.0T |
Configuration Details
Heating Device
Energy Efficiency save 30% Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Forming Station
Max mould size:520*430mm, Max depth:110mm, Servo driven plug assist on top forming station
Punching Station
Servo motor driven, punching holes more accurate and complete Long-life, durable needle
Operation Screen
The intelligent console interface has storage function. All parameters can be saved in the device to facilitate next operation.
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste Recycling
We are environmentalists. Waste sheets are recyclable-crush and blend with new pellets to create new products, leaving no waste in your factory.
PET Fruit Box Thermoforming Machine Features:
Efficient production
This thermoforming machine is equipped with a high-speed servo motor and an automatic feeding system, which can quickly complete the forming, cutting and stacking of fruit boxes, greatly improving production efficiency. It is suitable for mass production needs and can significantly reduce production costs.
Diversified molding
The machine supports a variety of mold replacements and can produce fruit boxes of different specifications and shapes to meet customers' diverse product needs. Through a simple mold replacement operation, one machine can be used for multiple purposes.
Intelligent control
Equipped with advanced PLC control system and touch screen operation interface, making the operation simple and intuitive. The system can monitor the production process in real time to ensure stable product quality, and has automatic alarm and shutdown protection functions, improving the safety and stability of the equipment.
Environmental protection and energy saving:
The use of high-efficiency and energy-saving heating systems can minimize energy consumption. At the same time, recyclable environmentally friendly materials are used as production raw materials, which is in line with the modern green and environmental protection concept.
Sturdy and durable
The body is made of high-quality steel and has undergone strict anti-corrosion treatment to resist high temperature and wear, ensuring long-term stable operation of the equipment and reducing repair and maintenance costs.
Hygiene and safety
The equipment is designed with the hygiene requirements of food packaging in mind. The entire machine is made of food-grade materials and complies with food hygiene standards. The fruit boxes produced are safe and non-toxic.
Summary:
The fruit box thermoforming machine is an advanced equipment integrating efficient production, intelligent control, environmental protection and energy saving, specially designed for the fruit packaging industry. Its stable performance, convenient operation and multi-functional application make it an ideal choice for modern fruit packaging enterprises.
