APPLICATION AREA TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc. APPLLICATION OF PRODUCTS TECHNICAL PARAMETER...

Product Details


PP Tray Machine


Application of PP tray machine

Applicable to 0.3 - 1.8mm HIPS, PS, PP, PVC, PET plastic sheet forming, processing high transparency, high tensile, shallow stretch, round, square, irregular, up and down two-way stretch. The production of fast food boxes, plates, disposable container, plastic cup lids, pallets, bowls, covers, tray, industrial packaging and other packaging products.


The work flow is as follows:

raw material---sheet extrusion line--- finished sheet---fully auto forming and cutting machine---food tray ---plastic recycle machine---plastic granules( this part can be used as raw material)


Specification:

1. PLC Control Positive and Negative Thermoforming Machine


2. It’s suitable for HIPS, PS, PP, PVC, PET and other plastic sheet forming,Processing the high transparency,high tensile,gently stretch,circular,square Shape,irregular,top and bottom both side stretch,turnup etc. It produce variety of medical industry blister lining,the food industry's lunch box, tray, dish, bowl, cover, electronic industry and other industrial packaging.

3. Little maintenance effort required and long intervals between maintenance.

4. High speed, low noise, durable, easy maintainence; Max. Speed 30times/minute.

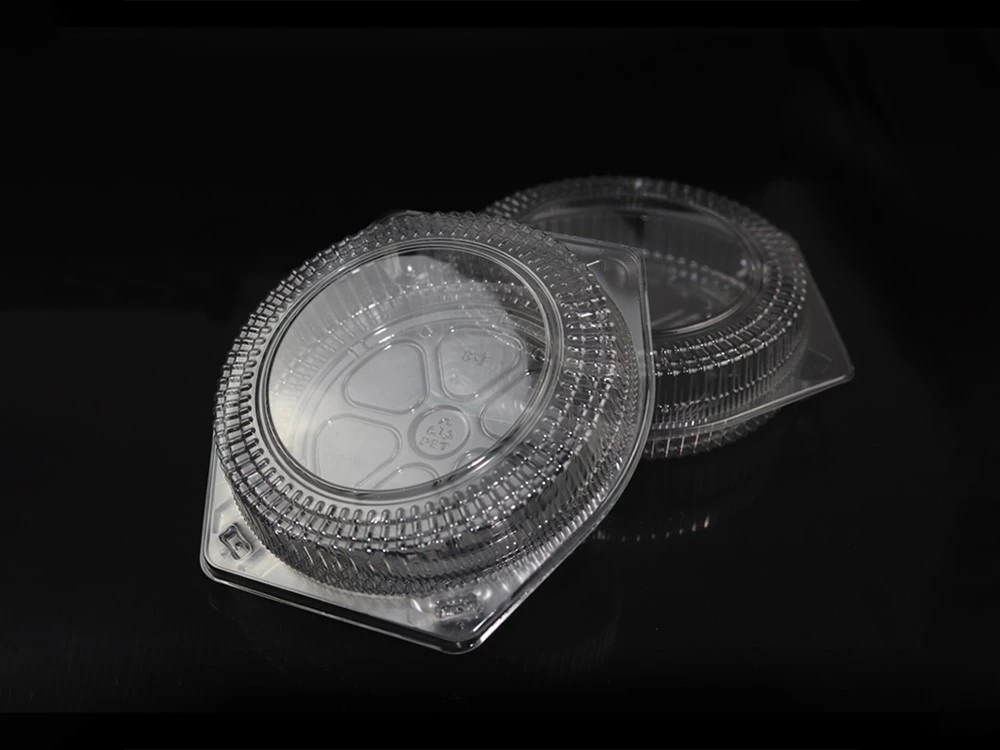

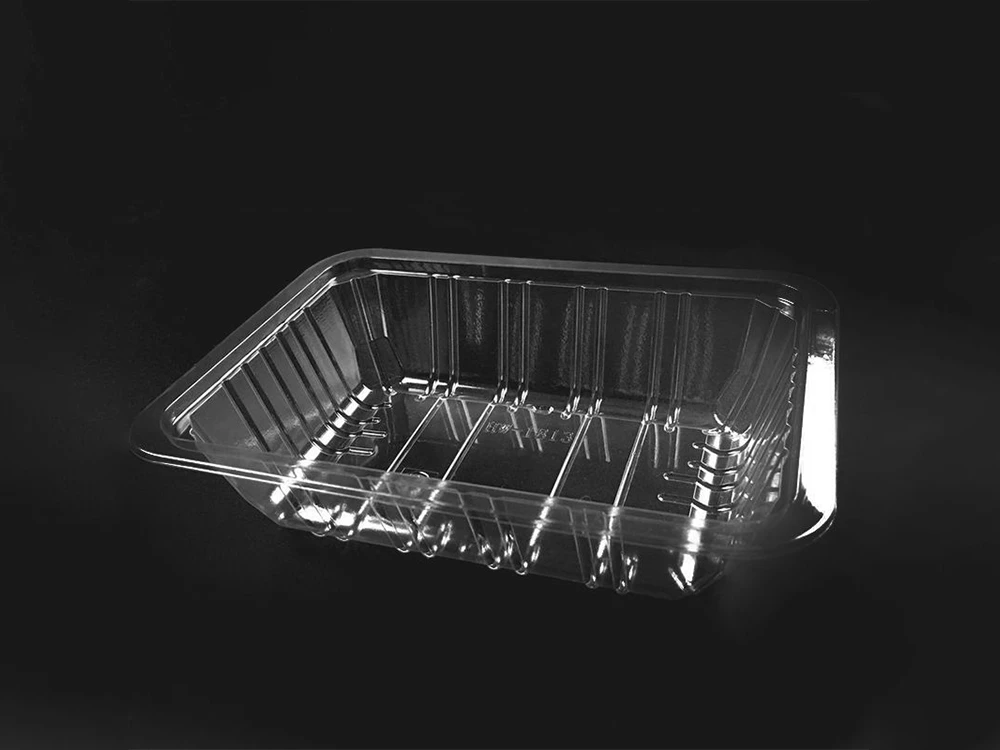

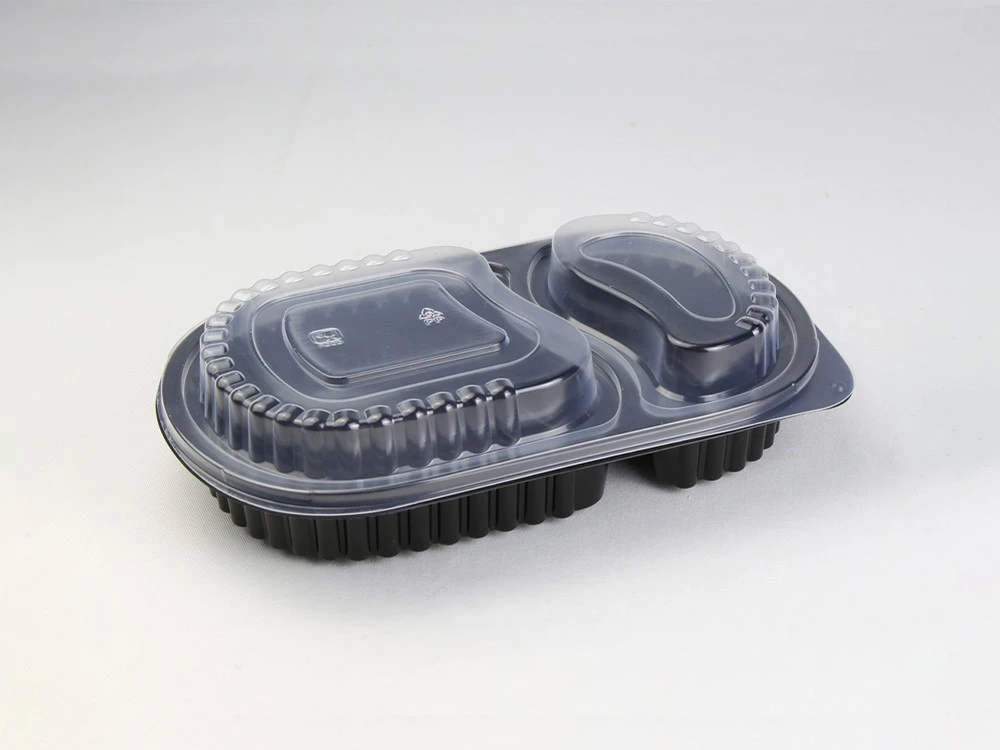

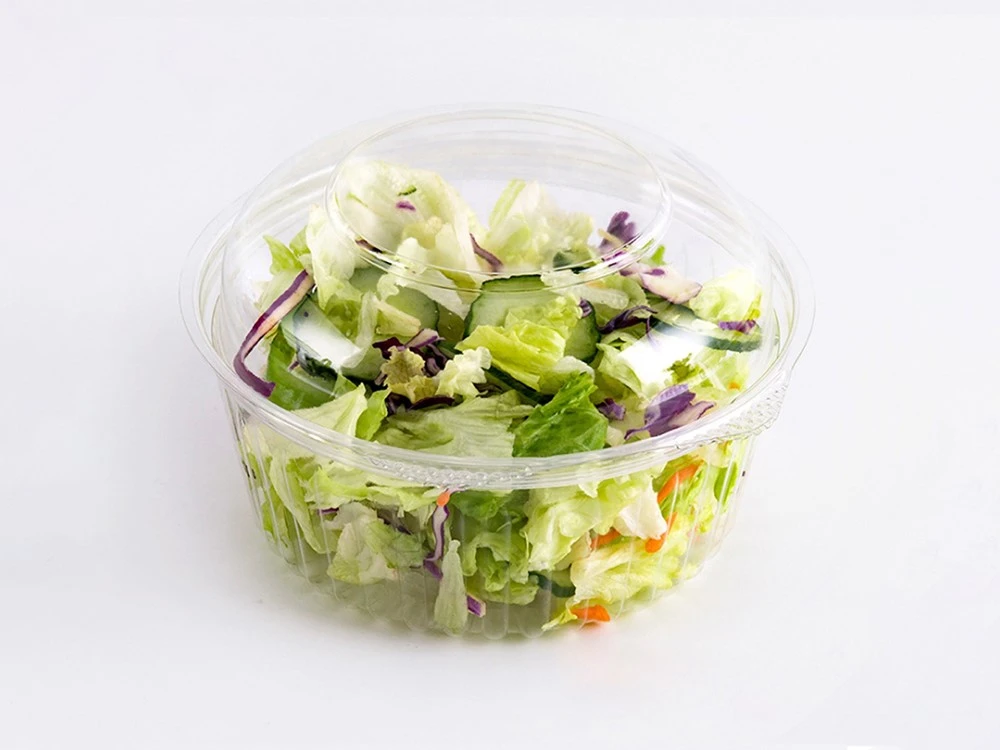

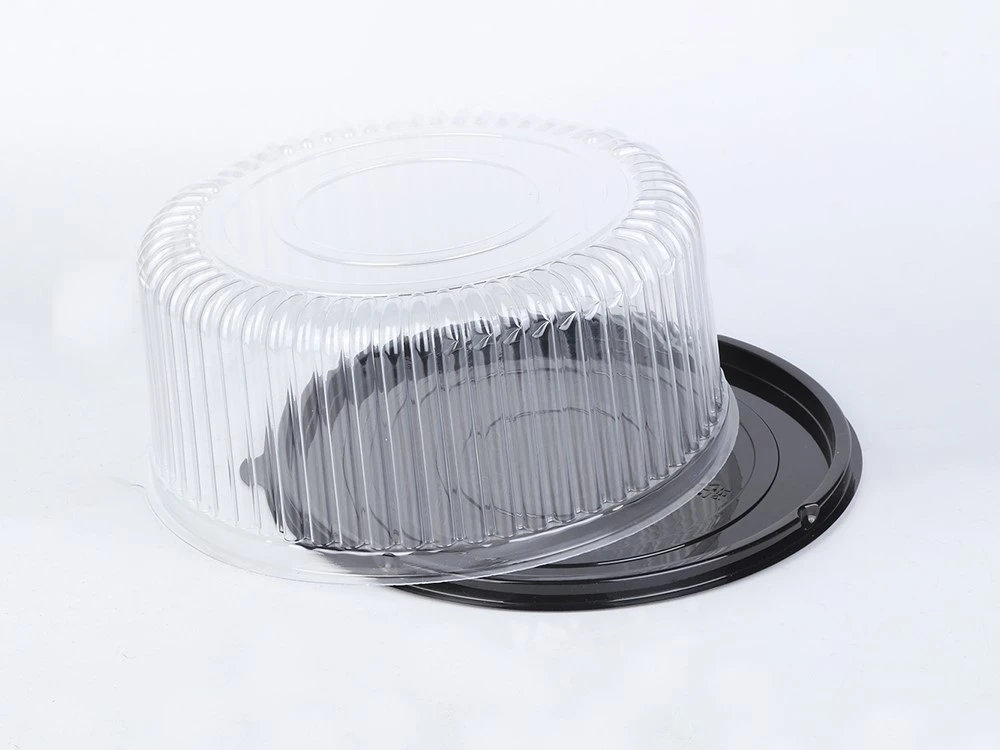

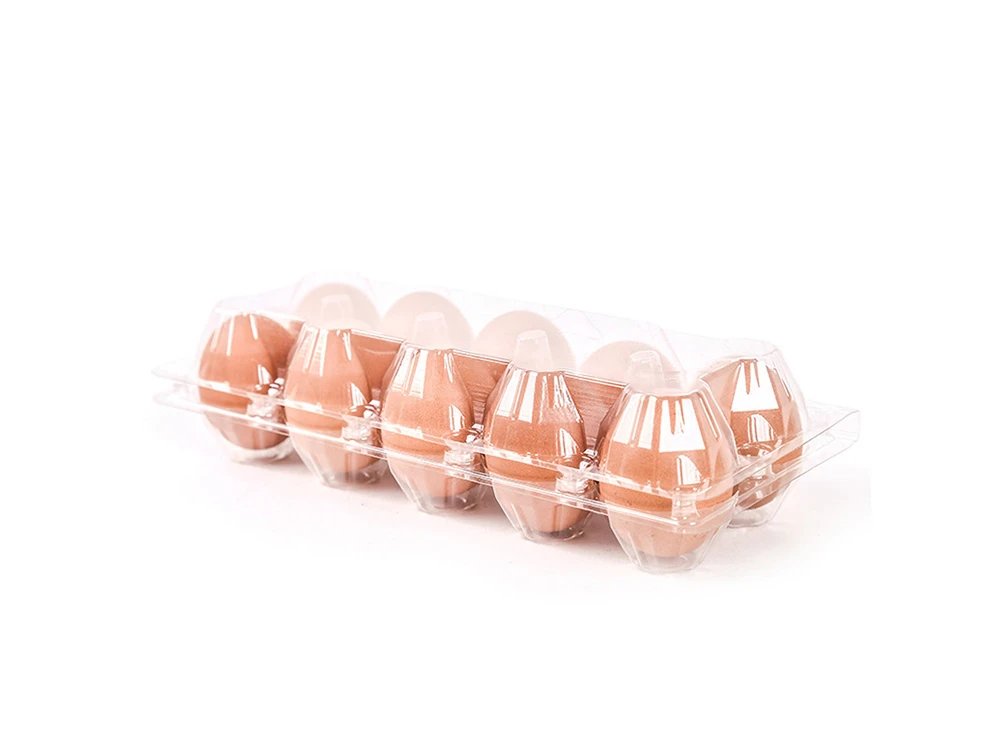

SAMPLES




Technical Parameter

Model

TTF-520A

Forming Area

520mm x 400 mm

Forming Depth (Max.)

100mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

30 times/min

Air pressure

0.6-0.8mpa

Air consumption

3 m³/min

Water consumption

0.7 m³/h

Sheet width (Max.)

570mm

Suitable Sheet

PP, PS, HIPS, PET, PVC,etc.

Power supply

AC 380V, 50Hz, Three-phase, Four-wire

Rated power

100kw

Procedure

Forming-cutting-stacking

Dimension

L9700×W4600×H2700mm

Weight

About 7.0T


 Company Profile

Rui'an Litai Machinery CO.,LTD is founded in 2001. For more than 16 years, our enterprise mission is to realizeproducing automatic plastic packaging machines.We focus on researching,developing, manufacturing and marketingon thermoforming machine, plastic cup production line, BOPS plastic thermoforming machine, mutil-layer PP/PS/PETsheet extruder, mould, etc.We are first manufacturer in domestic to produce plastic cup in one line with thermoforming,stacking, transmitting, counting, and packing automatically. We get a lot of invention patents and utility model patentsfor our products, and our machines have passed CE and ISO 9001:2000 certification. Meanwhile, there are more than72 countries and regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,Chile, Bolivia, Saudi Arabia, Yemen, Peru, etc. We insist in "customer goes first, sincere service" as enterprise servicepurpose, and welcome the cooperation and guidance from old and new customers.



Shipping and Delivery

professional shipping team in order to protect machines during loading.

Delivery time: 60 days after we receive the deposit

Packaging: Wooden Box





FAQ

1. Can we visit your machine operation in your factory?

   We have own plastic making company, you can see the machine operation.



2. Are you a factory or trading company?

   We are a factory.


3. How does your factory do regarding quality control?

   We have a special QC department in charge of products’ quality.


4. how long is your factory established ?

  About 18 years


5. What is the payment terms?

It's 30% deposit and 70% balance paid before shippment.
