Three Station Thermoforming Machine

TTF-520A Full-Automatic Three-station Plastic Thermoforming Machine SAMPLE:

Product Details

TTF-520A Full-Automatic Three-station Plastic  Thermoforming Machine




 SAMPLE:





                MAIN TECHNICAL PARAMETER

Model

TTF-520A

Forming Area

520mm x 400 mm

Forming Depth (Max.)

100mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

30 times/min

Air pressure

0.6-0.8mpa

Air    consumption

3 m³/min

Water    consumption

0.7 m³/h

Sheet width (Max.)

530mm

Suitable Sheet

PP, PS, HIPS, PET, PVC,etc.

Power supply

AC 380V, 50Hz, Three-phase, Four-wire

Rated power

100kw

Procedure

Forming-cutting-stacking

Dimension

L5200×W2000×H2400mm

Weight

About 7.0T

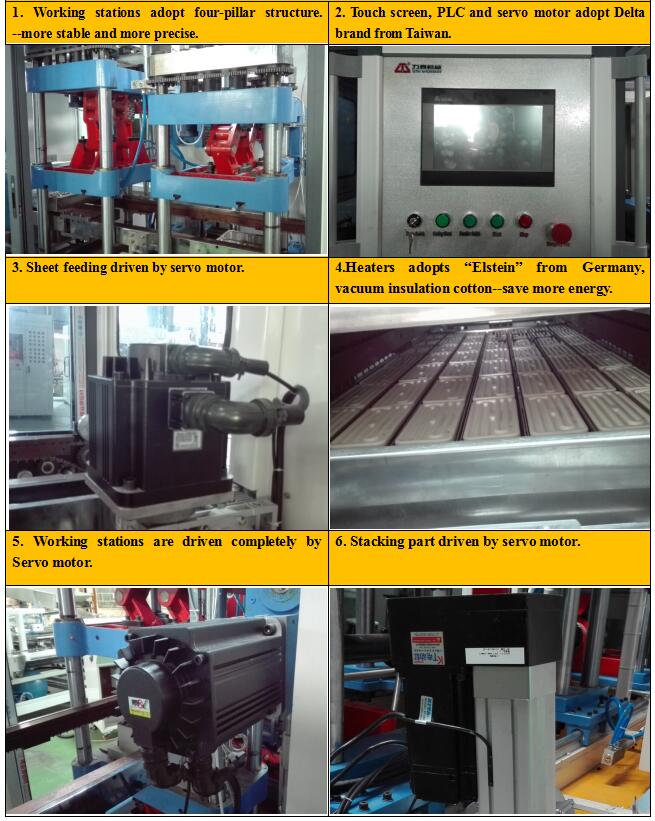

SPECIFICS

1. Working    stations adopt four-pillar structure. --more stable and more precise.

2. Touch screen, PLC and servo motor adopt Delta brand    from Taiwan.



3.    Sheet feeding driven by servo motor.

4.Heaters adopts “Elstein” from Germany, vacuum insulation cotton--save more energy.



5. Working stations are driven    completely by Servo motor.

6.Stacking part driven by servo motor.





FAQ

Questions

Answer

The core strengths of the machine

Patent product,new generation driven way,special    energy-saving.

What’s the output

TTF-400/TTF-520/TTF-780 series, according to your    quantity requirement ,then choice the suitable one

Machine adjustment and installation

We can send technicians go to customers' country for    machine adjustment and installation

Guarantee time and after-sale

One year guarantee time, after one year , we have    professional after-sales department providing best service if any problems.
