Three Station Forming Machine

APPLICATION: TTF-520A thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc. SAMPLE: SAMPLE DRAWINGS Company Brief Introduction...

Chat Now

Product Details

 APPLICATION:
 TTF-520A thermoforming  machine is forming, cutting and stacking in one line. It is completely driven  by servo motor, stable operation, low noise, high efficiency, suitable for  producing plastic trays, containers, boxes, lids, etc.



SAMPLE:



                MAIN TECHNICAL PARAMETER

Model

TTF-520A

Forming Area

520mm x 400    mm

Forming Depth (Max.)

100mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

30 times/min

Air pressure

0.6-0.8mpa

Air consumption

3 m³/min

Water consumption

0.7 m³/h

Sheet width (Max.)

530mm

Suitable Sheet

PP, PS, HIPS, PET,    PVC,etc.

Power supply

AC 380V, 50Hz, Three-phase,    Four-wire

Rated power

100kw

Procedure

Forming-cutting-stacking

Dimension

L5200×W2000×H2400mm

Weight

About 7.0T



SPECIFICS

1. Working stations adopt    four-pillar structure. --more stable and more precise.

2. Touch screen, PLC and servo motor adopt Delta brand from Taiwan.



3. Sheet feeding driven by servo    motor.

4.Heaters adopts “Elstein” from Germany, vacuum insulation    cotton--save more energy.



5. Working stations are driven completely by Servo motor.

6. Stacking    part driven by servo motor.




MACHINE MAIN PARTS

Touch Screen, PLC, Air Switch

Delta, Taiwan

Servopack, Servo Motor

Circuit Breaker, AC contact

Schneider, France

Cylinder

AirTAC, Taiwan

Heater

Elstein, Germany

Proximity Switch

Turck, Germany

Forming Valve

MAC, America

Filter

CKD, Japan

FAQ

Questions

Answer

The core strengths of the machine

Patent product,new generation driven way,special    energy-saving.

What’s the output

TTF-400/TTF-520/TTF-780 series, according to your    quantity requirement ,then choice the suitable one

Machine adjustment and installation

We can send technicians go to customers' country for    machine adjustment and installation

Guarantee time and after-sale

One year guarantee time, after one year , we have    professional after-sales department providing best service if any problems.


SAMPLE DRAWINGS

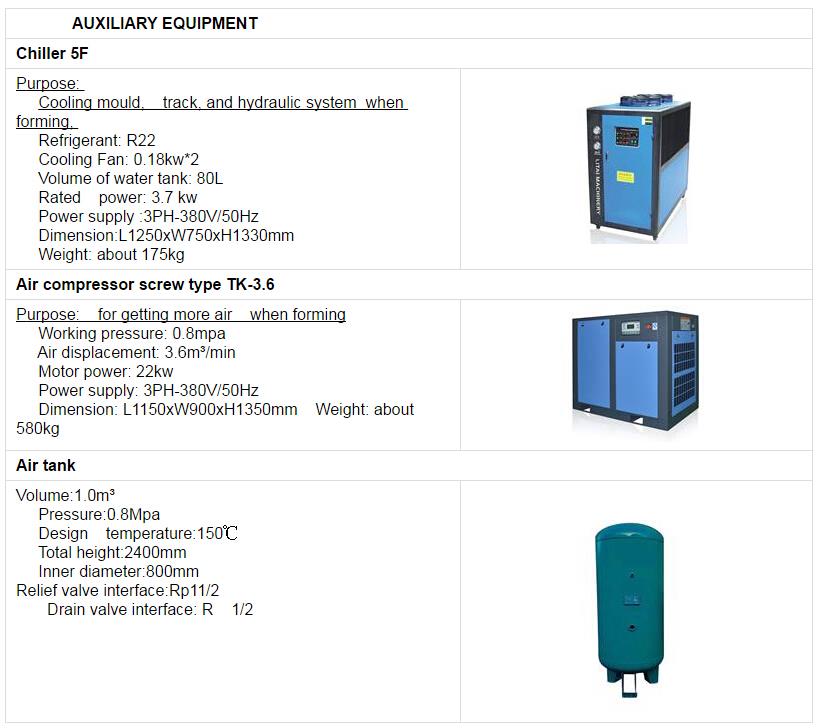

       AUXILIARY EQUIPMENT

Chiller 5F

Purpose:
     Cooling mould,    track, and hydraulic system  when forming,
     Refrigerant: R22
     Cooling Fan: 0.18kw*2
     Volume of water tank: 80L
     Rated    power: 3.7 kw
     Power supply :3PH-380V/50Hz
     Dimension:L1250xW750xH1330mm
     Weight: about 175kg




Air compressor screw type TK-3.6

Purpose:    for getting more air    when forming
     Working pressure: 0.8mpa
     Air displacement: 3.6m³/min
     Motor power: 22kw
     Power supply: 3PH-380V/50Hz
     Dimension: L1150xW900xH1350mm    Weight: about 580kg


Air tank

Volume:1.0m³
     Pressure:0.8Mpa
     Design    temperature:150℃
     Total height:2400mm
     Inner diameter:800mm

Relief valve interface:Rp11/2
       Drain valve interface: R    1/2
