Full Automatic Plastic Thermoforming Machine

Product Description

TTF series thermoforming machine is forming, punching,cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, clamshell containers, boxes, lids, etc.


Basic Info:

Model NO.: TTF-520AF

Specification: 520*400mm forming area

Rated Power: 110 KW

Collection: Robot stacker

Speed: 30times/min

Trademark: Litai machinery

Origin: Zhejiang

HS Code: 8477409000

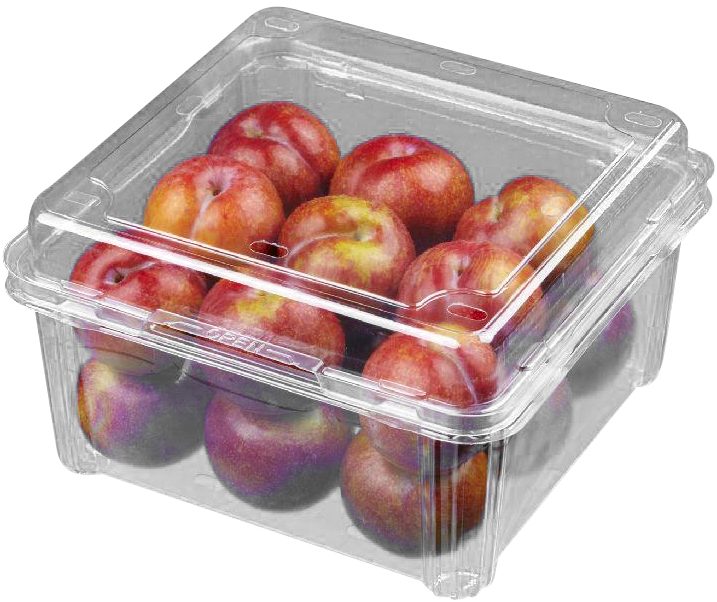

Finished Samples:

02 (2).jpg02 (1).jpg  03.jpg

TECHNICAL PARAMETER:

                               MAIN TECHNICAL PARAMETER
ModelTTF-520A
Forming Area520mm x 400 mm
Forming Depth (Max.)100mm
Sheet thickness0.3-1.8mm
Forming Speed (Max.)30 times/min
Air pressure  0.6-0.8mpa
Air consumption  less than 3 m³/min
Water consumption  0.7 m³/h(recyclable)
Sheet width (Max.)530mm
Suitable SheetPP, PS, HIPS, PET, PVC, etc.
Power supplyAC 380V, 50Hz, Three-phase, Four-wire
Rated power110kw
ProcedureForming-punching-cutting-stacking
DimensionL8450×W2400×H2600mm
WeightAbout 8T


Packing&Transport:

-Film wrapping, wooden base package.

-Loading in our factory into container or truck, then transport to Ningbo/Shanghai.


Payment&Delivery:

-30% deposit by T/T and 70% by T/T before of shipment.

-Within 60 days after receipt of your deposit.


Our Services

1. Professional deisgn department.

2. Engineers available to service machinery overseas

3. 13 months machine guarantee period.

4. Experienced after-sale department.


Why us:

-With more than 18 years experience,professional and concentration.

-Advanced tools and technologies provided under requirment.

-Excellent quality is the developing principle.

-Good after sale service as company reputation.


FAQ:

Q1 Are you a factory or a trade company?

A1 We a factory.

Q2 What is the cavity of this forming machine?

A2 Take the L245*W185mm box for example, the cavity will be 4.

Q3 How to contact us?

 A3 You can send the inquiry in the bottom.
