Ps Sheet Production Line

Ps Sheet Production Line

APPLICATION OF PRODUCTS APPLICATION AREA The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel...

Product Details


APPLICATION OF PRODUCTS



APPLICATION AREA

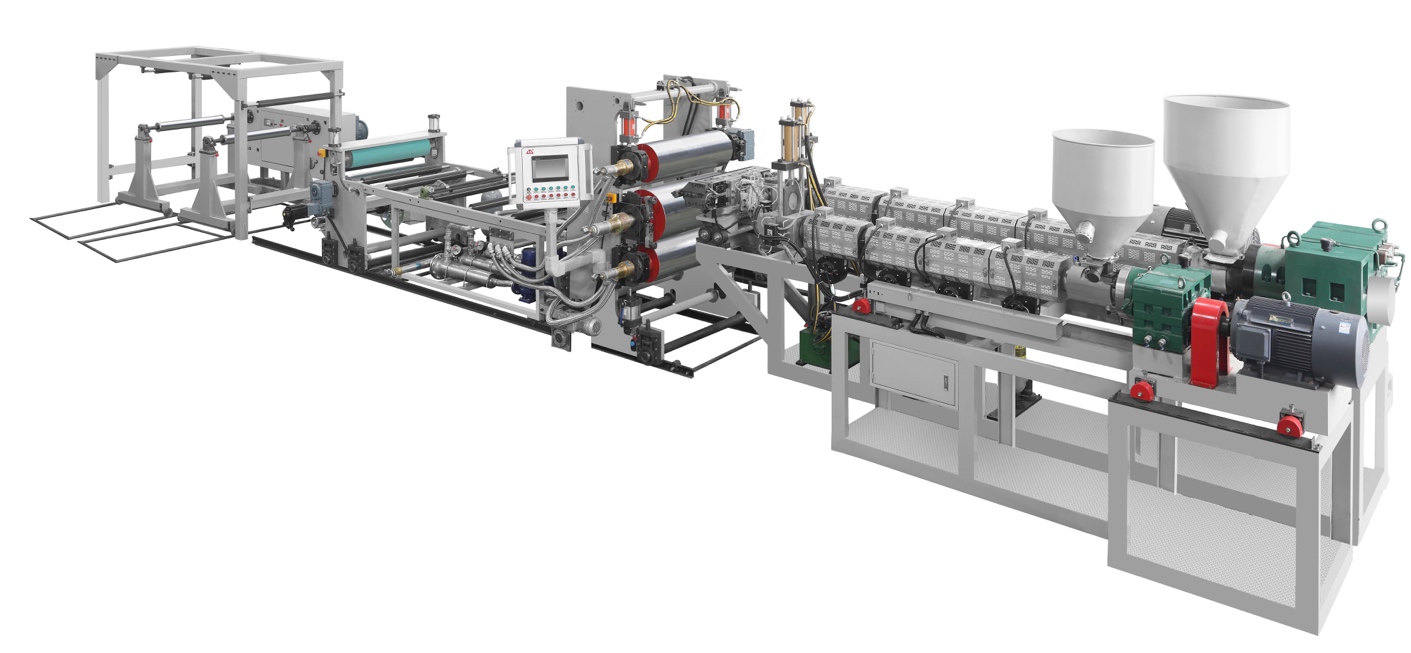

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.


Specifications

1.Output 250kg/hr
2.Good quality T die
3. Hydrauli Changer net
4.Delta frequency converter
5.Double working rewinder



TECHNICAL PARAMETER


ModelTJS-670
Suitable Sheet PP,PS
Max. Sheet Width670mm
Sheet Thickness Range0.3-2.0mm
Screw Rod Dia.95mm
Screw L/D Ratio35:1
Main Motor Power 75kw
Max. Output 250kg/hr
Rated Power 238kw
Power SupplyAC 380V,50 HZ,Three-phase,Four-wire


Packaging & Delivery


  • Packaging Details

  • wooden case
    sheet extrusion

  • Delivery Time

  • 40DAYS
