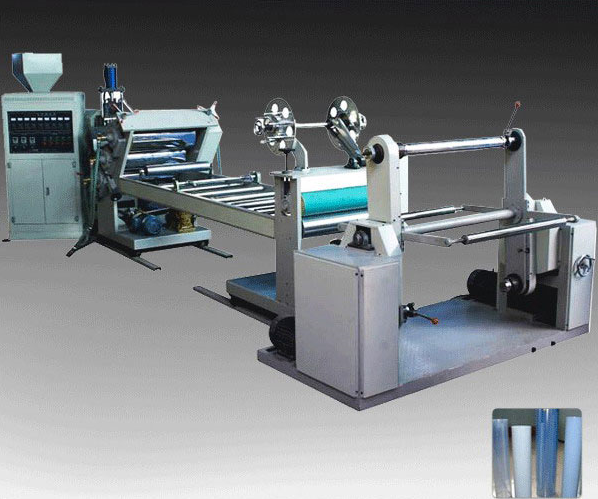

Plastic Hips Sheet Making Machine

APPLICATION AREA The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness...

Product Details

SAMPLE



APPLICATION AREA



This machine is suitable for producing PP/PS/PET sheet. It extrudes granule to sheet which is used for producing different kind of plastic cups, food containers, trays, dishes, bowls, trays, lids, etc.


TECHNICAL PARAMETER


ModelTJ-950
Suitable Sheet PET,PP,PS
Max. Sheet Width950mm
Sheet Thickness Range0.18-1.2mm
Screw Rod Dia.71.4mm
Total Power354kw
Main Motor Power 132kw
Max. Output 300-400kg/hr
Rated Power 181kw
Power SupplyAC 380V,50 HZ,Three-phase,Four-wire
