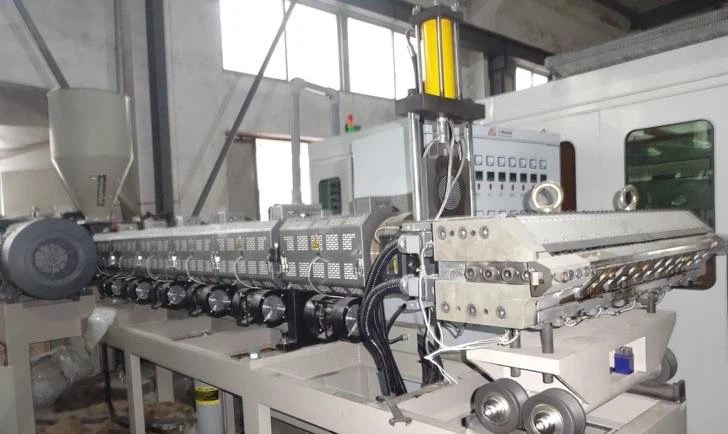

Pp Ps Sheet Extrusion Line

APPLICATION AREA The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness...

Product Details

SAMPLE



APPLICATION AREA



The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.


TECHNICAL PARAMETER


ModelTJ-750
Suitable Sheet PP,PS
Max. Sheet Width750mm
Sheet Thickness Range0.3-2.0mm
Screw Rod Dia.110mm
Screw L/D Ratio35:1
Main Motor Power 90kw
Max. Output 250kg/hr
Rated Power 181kw
Power SupplyAC 380V,50 HZ,Three-phase,Four-wire
