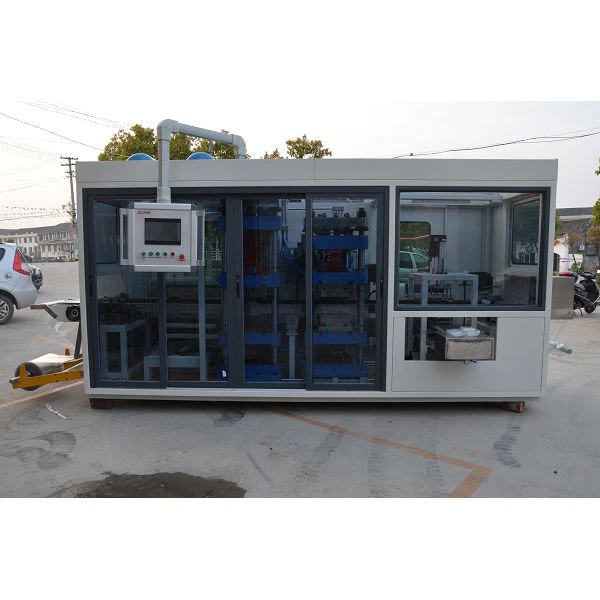

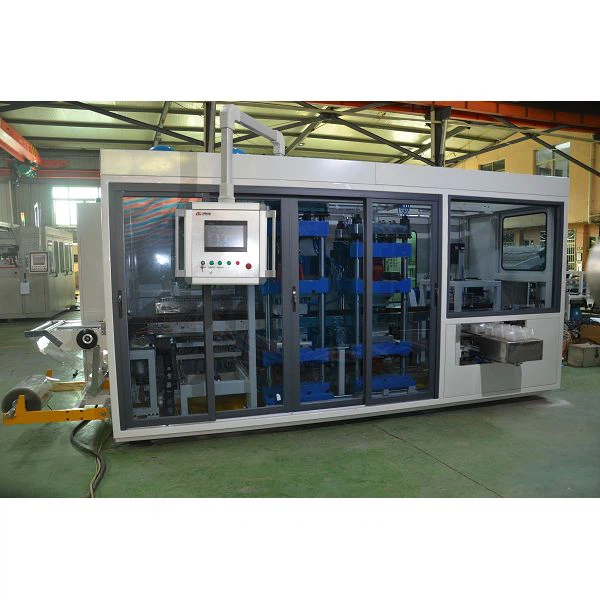

Multi Station Forming Machine

APPLICATION: TTF-520A thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency. SAMPLE: SAMPLE DRAWINGS

Product Details

 APPLICATION:
 TTF-520A thermoforming  machine is forming, cutting and stacking in one line. It is completely driven  by servo motor, stable operation, low noise, high efficiency.


SAMPLE:





                MAIN TECHNICAL PARAMETER

Model

TTF-520A

Forming Area

520mm x 400    mm

Forming Depth (Max.)

100mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

30 times/min

Air pressure

0.6-0.8mpa

Air consumption

3 m³/min

Water consumption

0.7 m³/h

Sheet width (Max.)

530mm

Suitable Sheet

PP, PS, HIPS, PET,    PVC,etc.

Power supply

AC 380V, 50Hz, Three-phase,    Four-wire

Rated power

100kw

Procedure

Forming-cutting-stacking

Dimension

L5200×W2000×H2400mm

Weight

About 7.0T



SPECIFICS

1. Sheet feeding driven by servo motor.

2.Heaters adopts “Elstein” from Germany, vacuum insulation cotton--save more energy.



3. Working stations are    driven completely by Servo motor.

4. Stacking part driven by servo motor.





SAMPLE DRAWINGS
