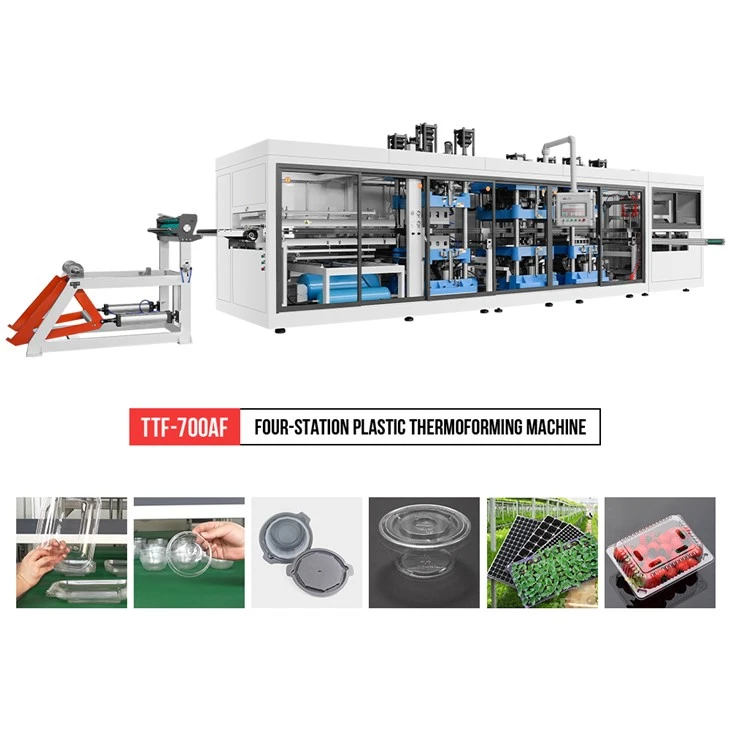

Plastic Drink Cup Lid Thermoforming Machine


Application:

TTF series thermoforming machine is forming, punching, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.


Main Technical Parameter:

Model

TTF-400AF

Forming Area

400mm x 300 mm

Forming Depth (Max.)

60mm

Sheet thickness

0.3-1.8mm

Forming Speed (Max.)

35times/min

Air pressure

 0.6-0.8mpa

Air consumption

 2 m³/min

Water consumption

 0.7 m³/h

Sheet width (Max.)

 450mm

Suitable Sheet

 PP, PS, HIPS, PET, PVC,etc.

Power supply

 AC 380V, 50Hz, Three-phase, Four-wire

Rated power

 78kw

Procedure

 Forming-punching-cutting-stacking

Dimension

 L7400×W4000×H2600mm

Weight

 About 7.0T

Specification:

1.Working stations adopt four-pillar structure. --more stable and more precise.

2.Touch screen, PLC and servo motor adopt Delta brand from Taiwan.

3. Sheet feeding driven by servo motor.

4.Heaters adopts “Elstein” from Germany, vacuum insulation cotton--save more energy.

5. Working stations are driven completely by Servo motor.

6. Guiding parts adopt crank-link mechanism to improve work efficiency.

7. Stacking part adopts electric cylinder, driven by servo motor.
