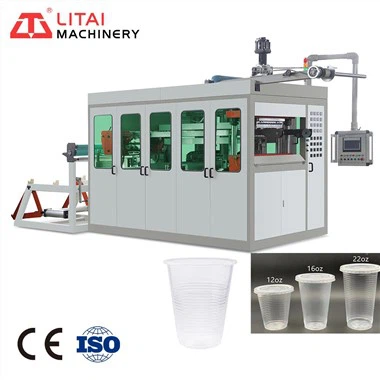

Plastic Cup Lids Thermoforming

Product Description Application Area: Plastic thermoforming machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking...

Product Details

Plastic Cup Lids Thermoforming




Application Area:
Plastic thermoforming machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yoghourt cups, trays, plates, covers, lids, containers, etc.

Technical Parameter

Model

TQC-650B

Max. Forming Area

650*320 mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

660mm

Forming Speed

30 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

2.0m³/min

Water Consumption

0.5m³/h

Rated Power

98kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L7000*W2000*H3100mm

Weight

About 5 T

SAMPLES



Mould

Plastic Good Quality Container Thermoforming Machine

Machine Detail
Plastic Good Quality Container Thermoforming Machine

Plastic Good Quality Container Thermoforming Machine
Plastic Good Quality Container Thermoforming Machine
Plastic Good Quality Container Thermoforming Machine

Cup Production Line


Characters


1) PLC and touch screen use Germany brand Siemens

2) Mechanism movement adds automatically oil to lubricate at certain times.

3) Servo motor draws sheet.

4) Mould movement adopts hydraulic pressure drive.

5) Stable operation and reliable performance, low noise, high quality.

6) It can produce different products by different moulds.

7) It can finish production in one cycle through sheet feeding, heating, stretching, forming and side-cutting.

8) One mold has all functions, like pressure giving, forming, cutting, cooling, and finished product blowing.


Our company

Rui'an Litai Machinery Co., Ltd is founded in 2001. For more than 16 years, we focus on researching, d

Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

Chile, Bolivia, Saudi Arabia, Peru, etc.

FAQ

1. Are you a manufacturer?

Yes, we have been in making plastic thermoforming machineover 17 years.

2. What about the payment term?

Mostly 30%T/T in advanced, the rest need be paid by TT before shipping

3. Machine adjustment and installation

We can send technicians go to customers' country for machine adjustment and installation

4. Guarantee time and after-sale

One year guarantee time, after one year, we have professional after-sales department providing best service if customer has any problems.
