Plastic Cup Lid Thermoforming Machine

Product Description Characters 1) PLC and touch screen use Germany brand siemens 2) Mechanism movement adds automaticlly oil to lubricate at certain times. 3) Servo motor drawing sheet. 4) Mould movement adopts hydraulic pressure drive. 5) Stable operation and reliable performance, low noise,...

Product Details

Plastic Cup Lid Thermoforming Machine


APPLICATION

 This machine is four pillars design,that means the machine can get more big forming area and more output and also with adopt servo ,motor feeding, stretching and PLC control system, and with Germany energy saving heater can save 40% energy. It can produce various kind of disposable plastic cup, plastic containers of cooling drinks, sour milk, ice cream, fast food or install noodle, as well as different kinds of merchandise packages of medicine,toy,journal,Textile and light industry,etc.

Features

1. can achieve multi-purpose in one machine

2. adopting hydraulic four-colum structure, more stable and high efficiency.

3. operated smoothly with low noise and strong mould clamping force.

4. high capacity with labor cost saving

5. Each area temperature is controlled by one Temperature controller

6. All processing steps (sheet feeding,heating , stretching , forming , in-mould cutting ) are full-automatic

7. Machine frame adopts Square steel, more stronger and steady.

8.One machine can produce different kinds of products with different moulds.

9. The operation is controlled by PLC & Touch Screen

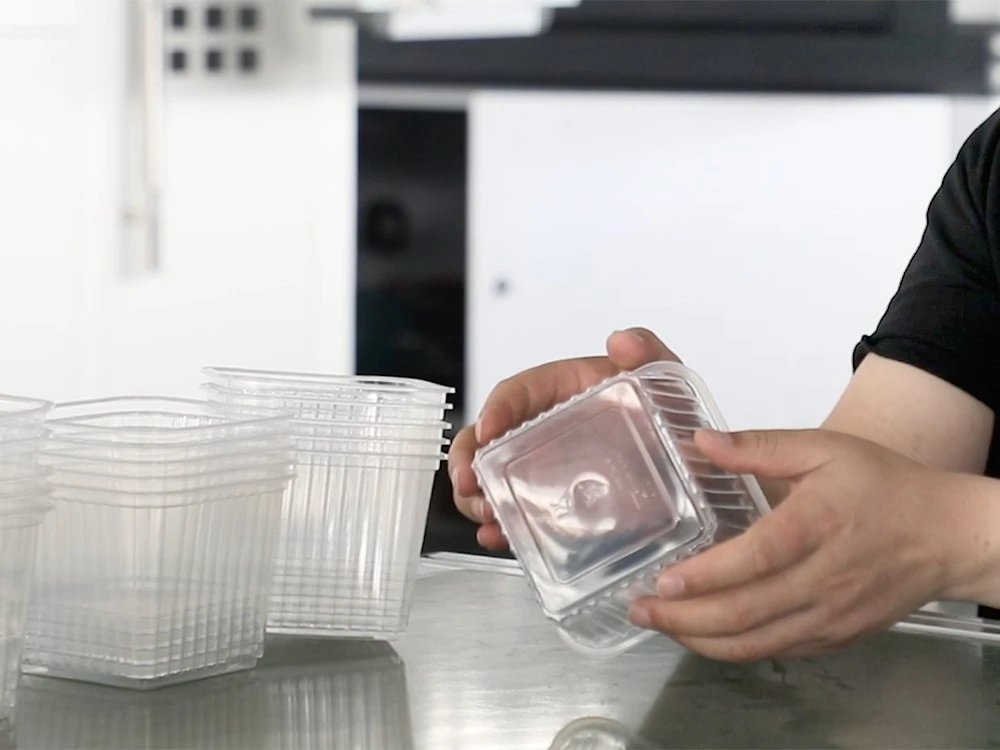

SAMPLES



Mould


Technical Parameter

Model

TQC-650B

Max. Forming Area

650*320 mm

Max. Forming Depth

125mm

Sheet Thickness

0.3-1.8mm

Sheet Width

660mm

Forming Speed

30 times/min

Air Pressure

0.6-0.8mpa

Air Consumption

2.0m³/min

Water Consumption

0.5m³/h

Rated Power

98kw

 Power Supply

AC 380V,50Hz, Three-phase, Four-wire

Dimension

L7000*W2000*H3100mm

Weight

About 5 T

Cup production line


Machine detail


Company Profile

Rui’an Litai Machinery Co., Ltd is founded in 2001. For over 18 years, our enterprise mission is to realize producing automatic plastic packaging machines. We focus on researching, developing, manufacturing and marketing four/three station thermoforming machine, plastic cup thermoforming machine, BOPS plastic thermoforming machine, multi-layer PP/PS/PET sheet extruder, mould. We are the first manufacturer in domestic to produce plastic cup in one line with thermoforming, stacking. Transmitting, counting and packing automatically. We get a lot of invention patents and utility model patents for our products, and our machines have passed CE and ISO 9001:2000 certification. Meanwhile, there are more than 79 countries and regions cooperating with us, such as USA, South Korea, Turkey, Canada, Russia, Kuwait and etc. We insist in” customer goes first, sincere service.” as enterprise service purpose and welcome the cooperation and guidance from old and new customers.


 Warranty Service

The product will enjoy a thirteen months warranty period from the date of shipping.

 Commission service

After the product arrives at the client’s site, we will send technical person to work with the client for installation and commissioning, and train the operators and maintenance personnel of the client.

Our quality guarantee

(1) We choose the good material to provide a reliable quality .

(2) Our worker in production line with many years of working experience. Your order will be finished by the skillful worker .

(3) Our company focused on Innovation , design new product for better usage of client.
